56VM4006

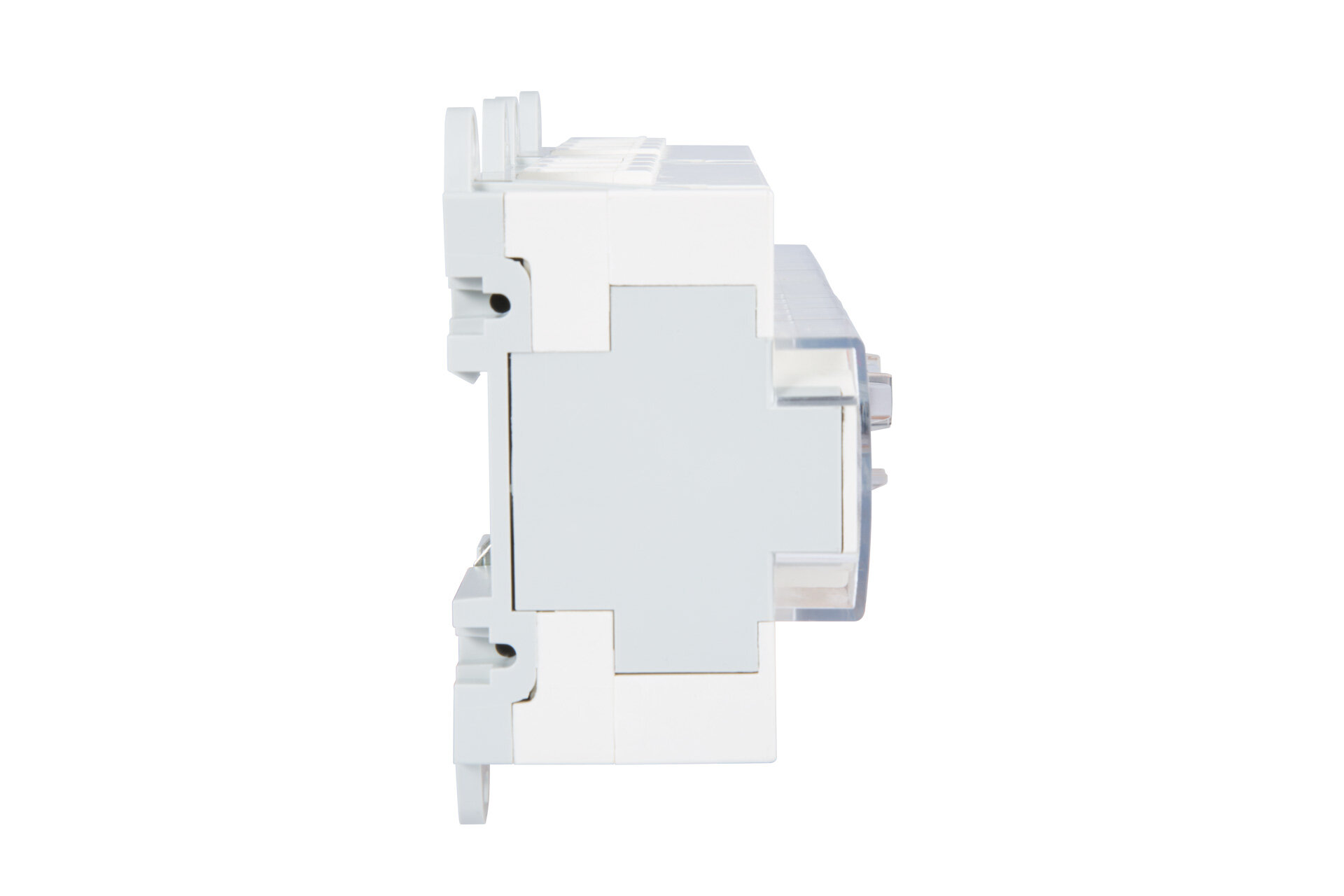

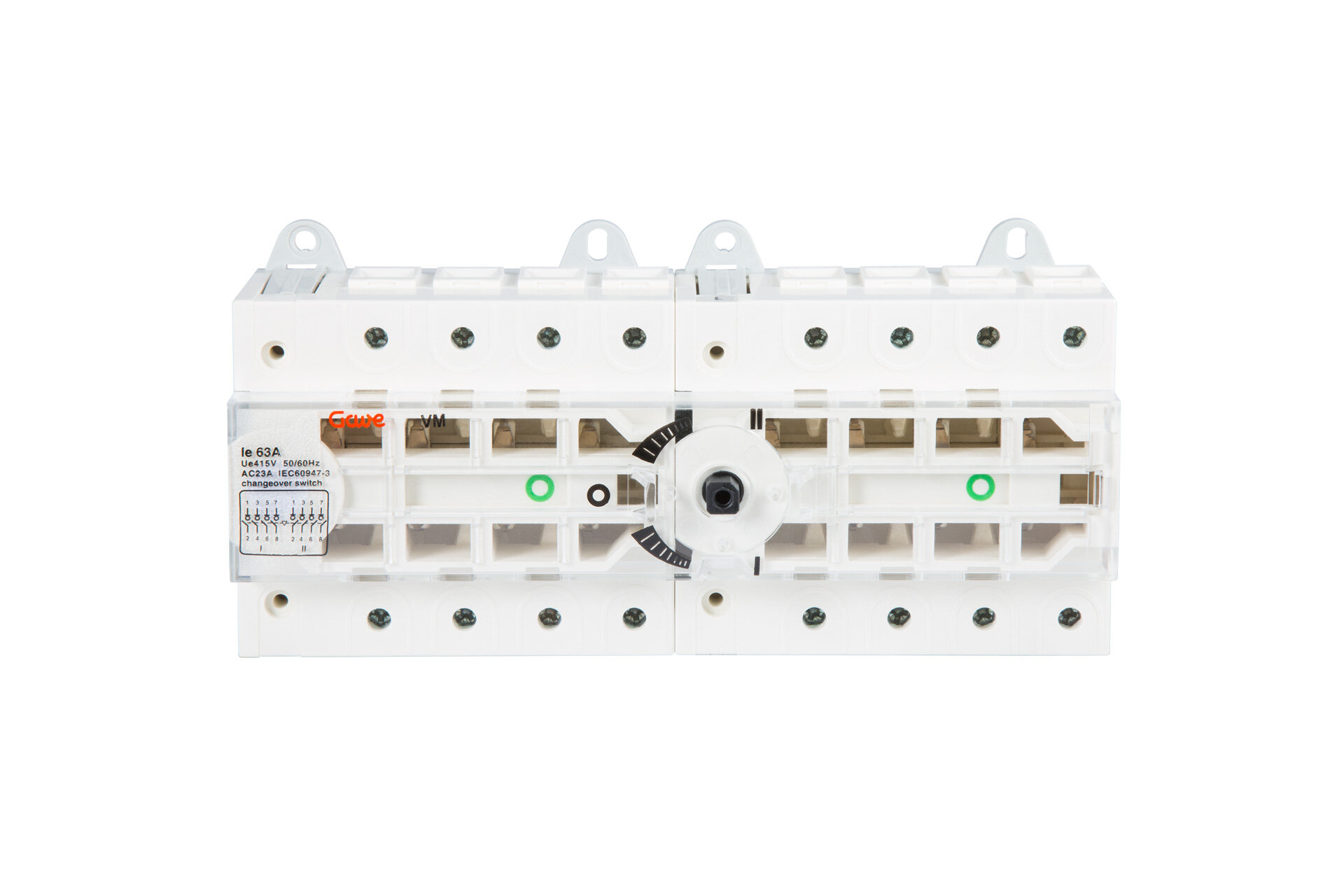

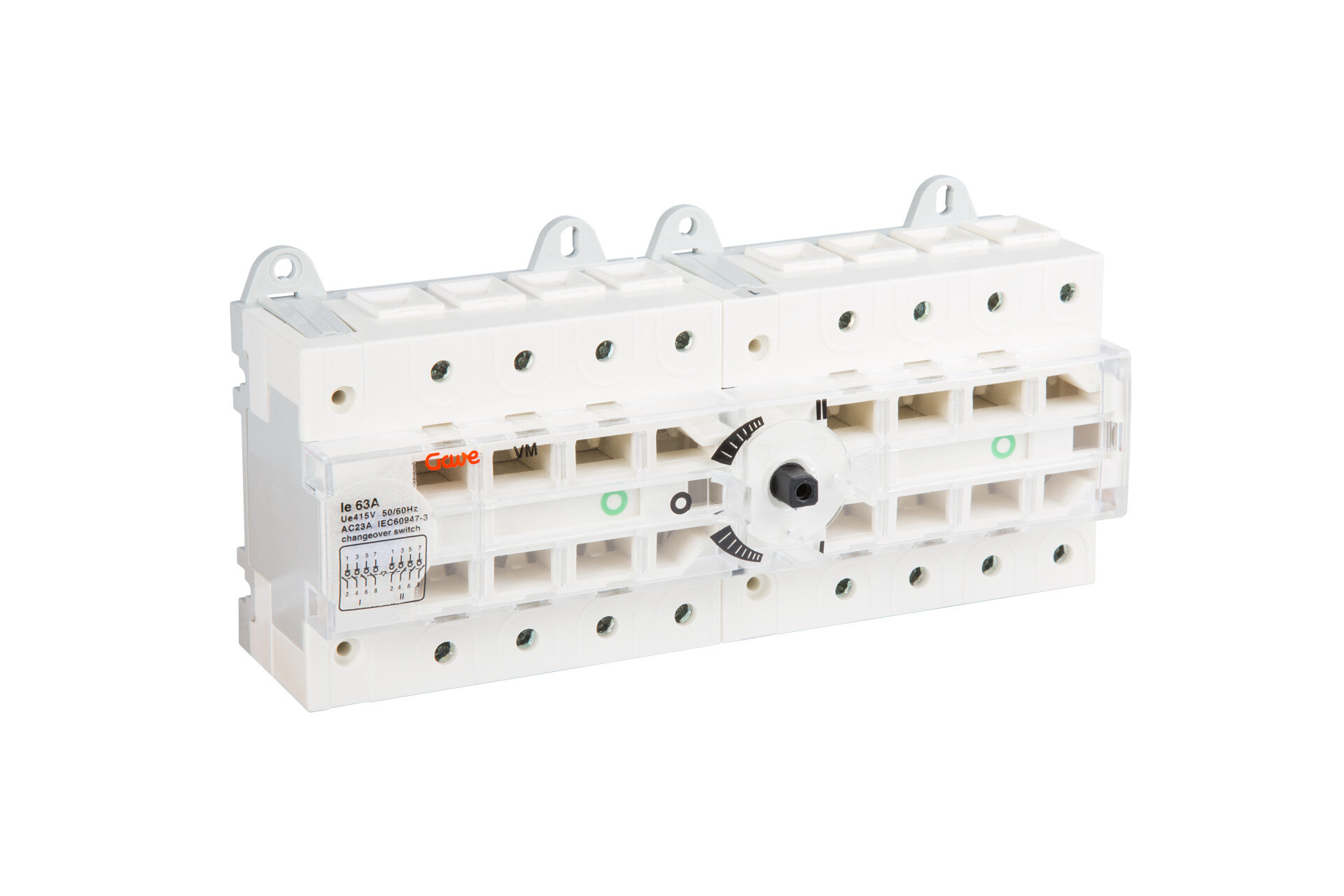

MODULAR CHANGEOVER SWITCH VM I-0-II 4P x 63A

Print to PDF

Code 01756VM4006
EAN 8430892284653
Technical data
Nr. Poles 4
Air thermal rating (Ith) 63 A
Impulse voltage (Uimp) 8 kV
Minium Cu cable cross-section

4 mm2

Wire section rigid

50 mm²

Wire section flexible

35 mm²

Tightening torque 6 Nm
Prostpective shortcircuit current (rms) 100 kA
Associated fuse rating 63 A
Rated short-time withstand current 1s (Icw) 2,5 kA
Weight 1,4 Kg
Rated short-time withstand current 0,3s (Icw) 4,5 kA
Standard IEC 60947-3
AC 21 B (690 V) 63/63
AC 21 B (400 V) 63/63
AC 23 B (400 V) 63/63
DC 22 B (220 V) 63/63
Rated operational voltage (Ue) 400 VCA
Electrical durability 10000
