ACVT32RS

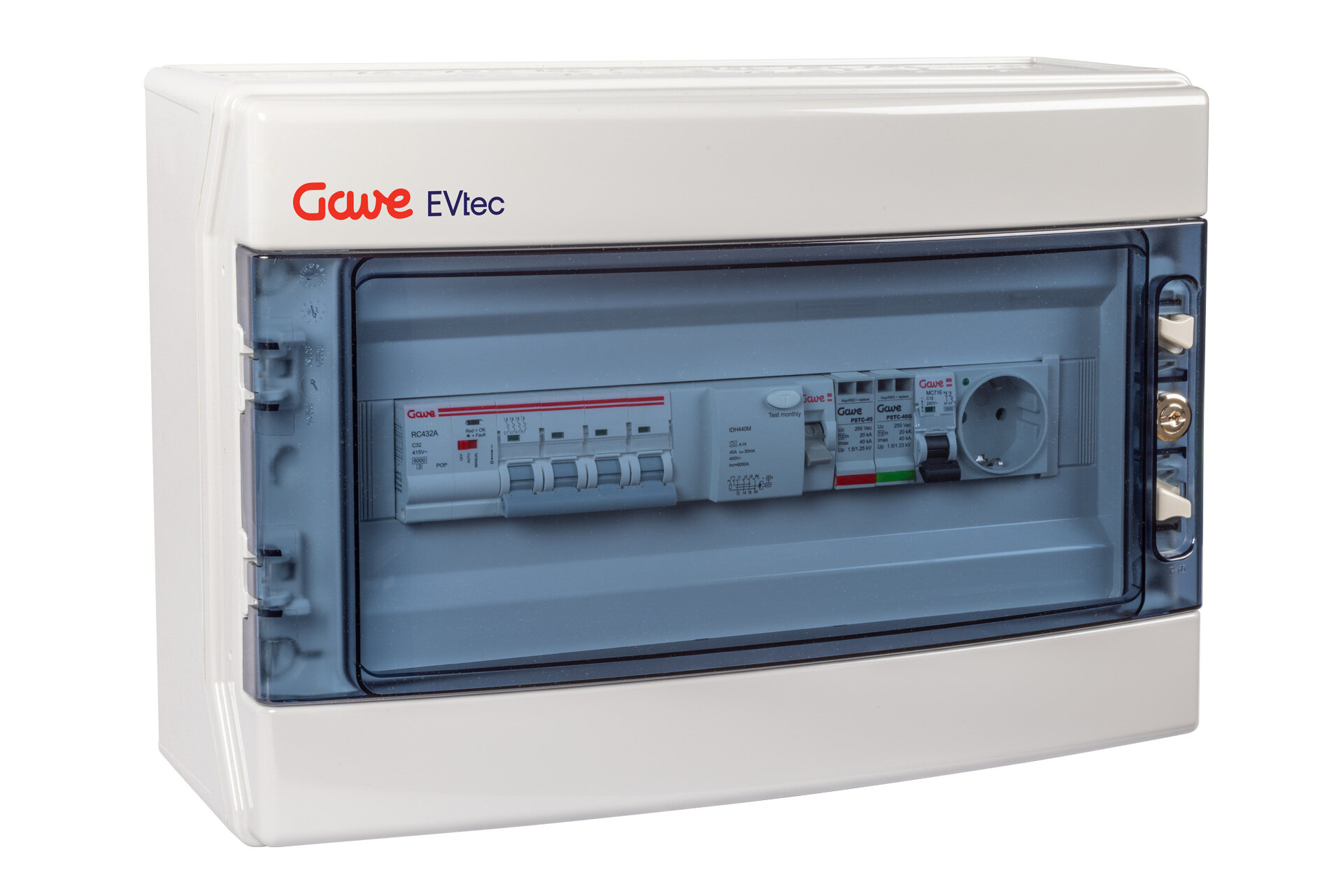

EV CHARGING POINT MODULAR BOX 3P+N 32A RU+POP+SPD+SCHUKO

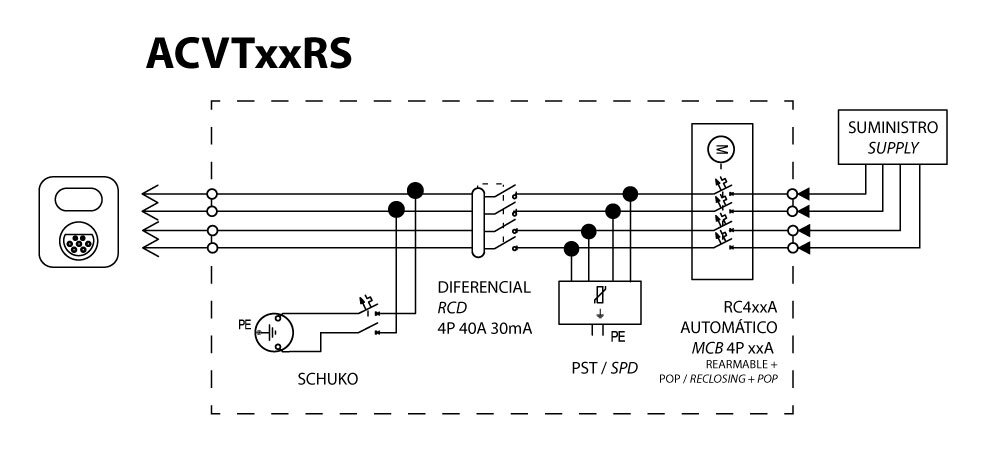

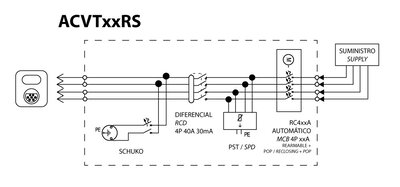

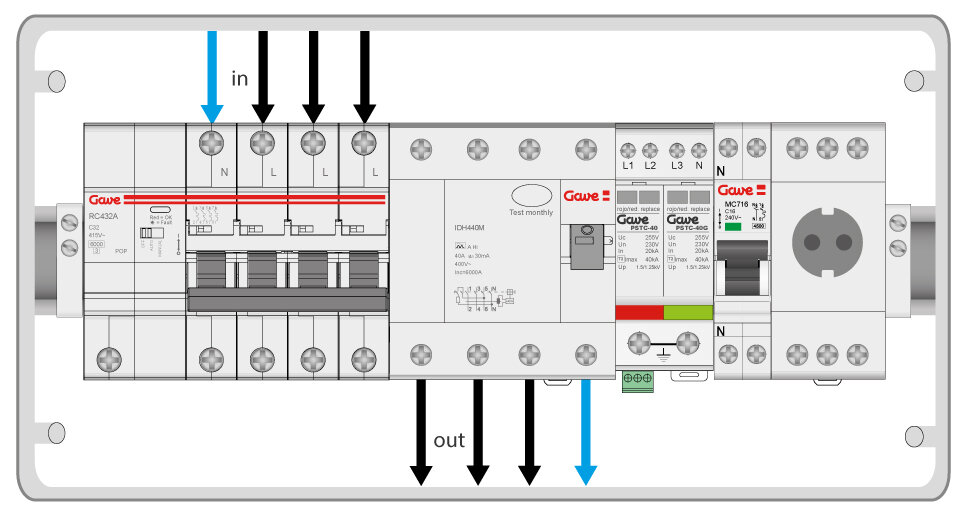

EV Charger Modular combiner box with mcb, rccb and overvoltage protection.
Modular circuit breaker 3 poles + neutral 32A C curve breaking capacity 6kA - EN 60898-1. Permanent overvoltage and undervoltage protection with automatic reclosing.
Residual current circuit breaker four pole type A sensitivity 30mA for alternating current with pulsed direct current, protected against nuisance tripping 0,25kA, EN 61008-1.
Overvoltage protection Class II In 20kA Imax 40kA Up 1,5kV EN 61643-11.
The equipment includes a socket 1P+N 16A protected with MCB 16A.

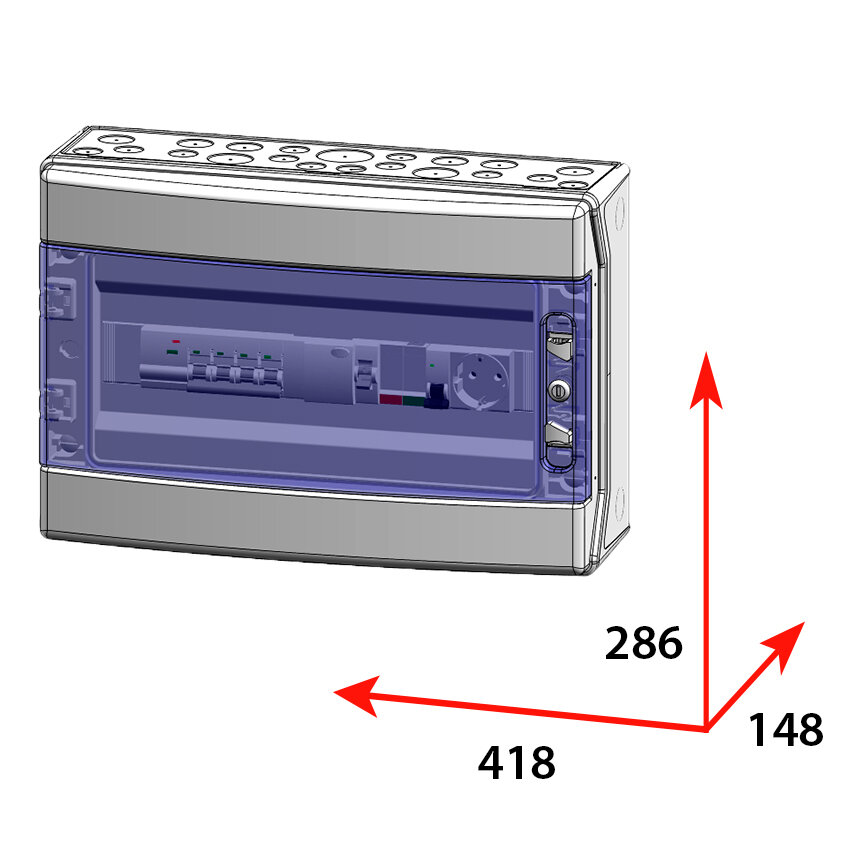

Double insulation Class II box in polycarbonate material for indoor and outdoor use with high impact resistance (IK08). Dimensions de 286x418x148mm.
