ACVM25RS

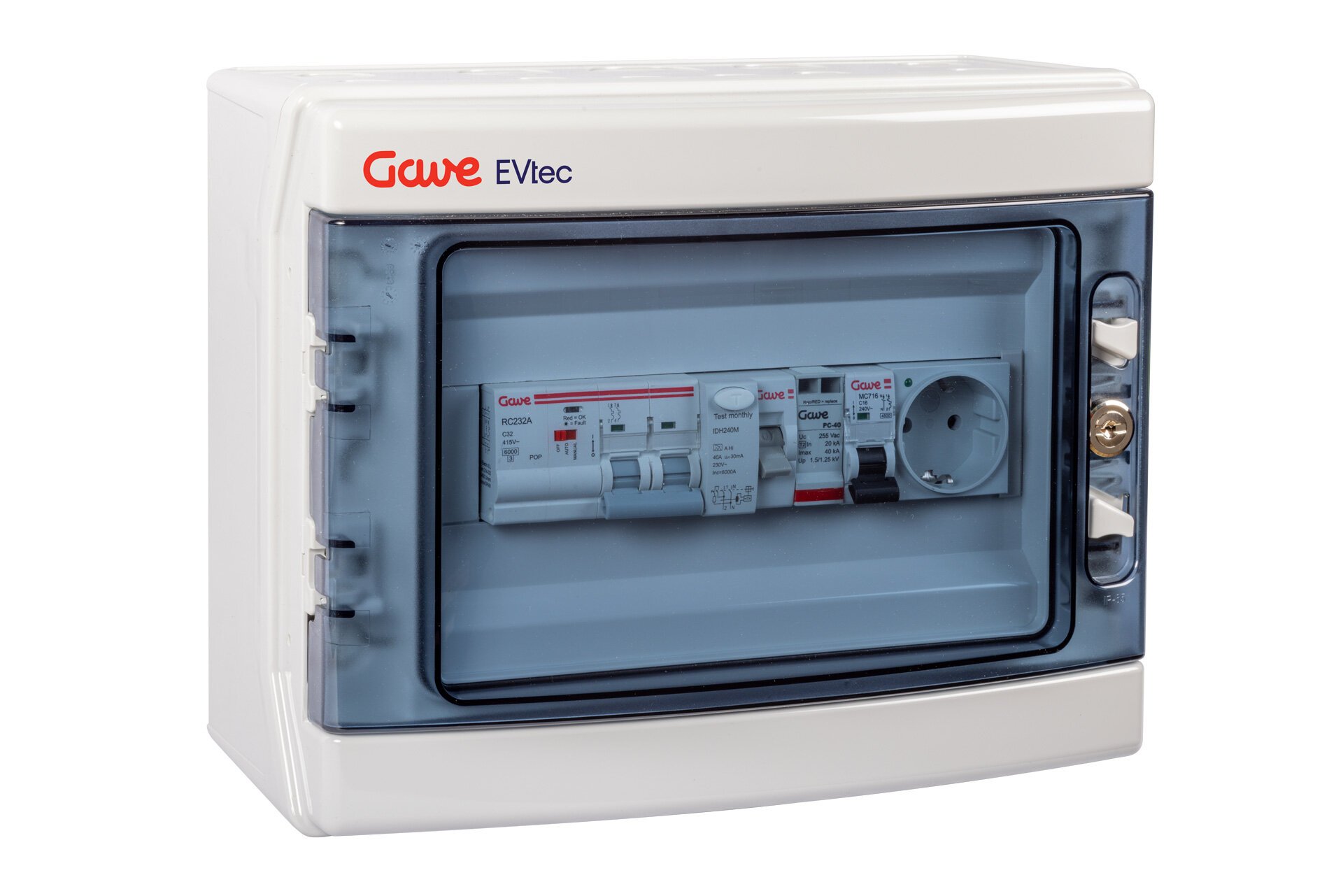

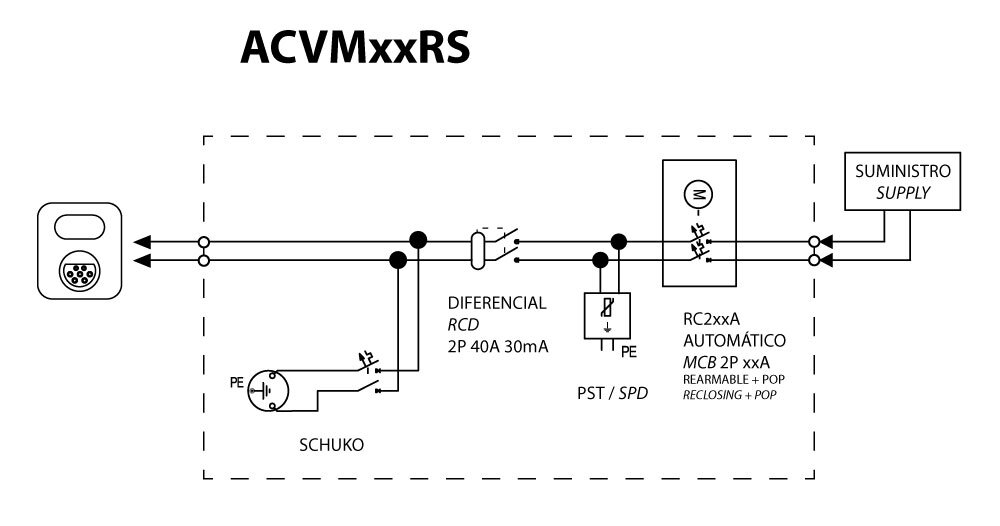

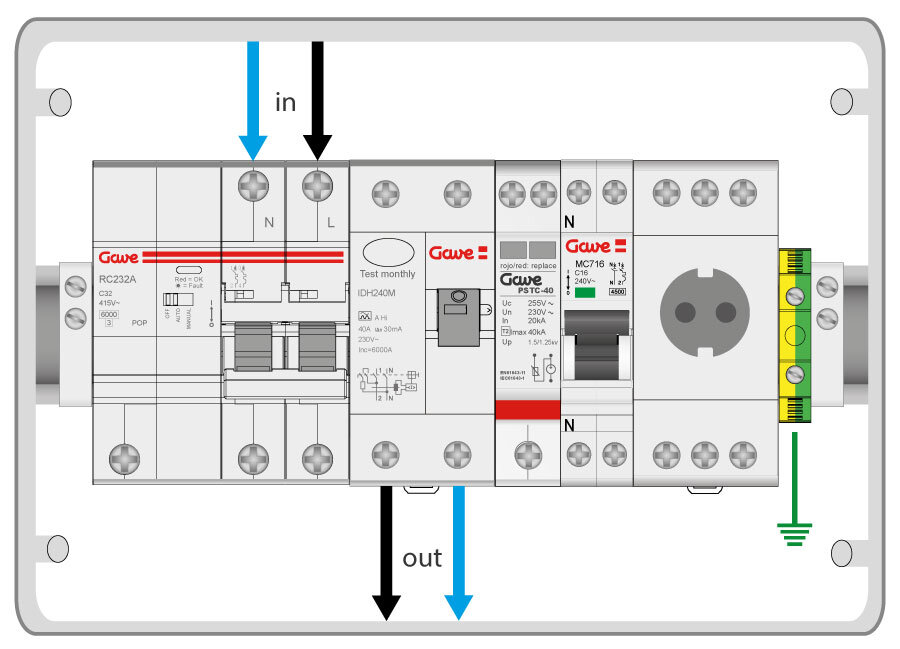

EV CHARGING POINT MODULAR BOX 1P+N 25A RU+POP+SPD+SCHUKO
| Code | 030ACVM25RS |
| EAN | 8430892353441 |
Combiner box technical data
| MCB - Circuit breaker | 25 A |
| Curve | C |
| Breaking capacity EN 60898-1 | 6 kA |
| RCCB type | A |
| Combiner box type | AC |
| Network type | 1P+N |
| Operating voltage (Ue) | 230 V AC |
| Surge protector | Class II |
| Diferential type | 30mA |
| Inputs current rating | 25 A |
| Surge protector code | PSTC40 |
| Surge protector type | II |
| Nominal discharge current (In) | 20 kA |
| Maximum discharge current (Imax) | 15 kA |
| Protection level at In (Up) | 1.5 kV |
| IP | IP65 - IEC 60529 |
| IK | IK08 - IEC 62262 |
| Standards | IEC EN 6143-1/2 |

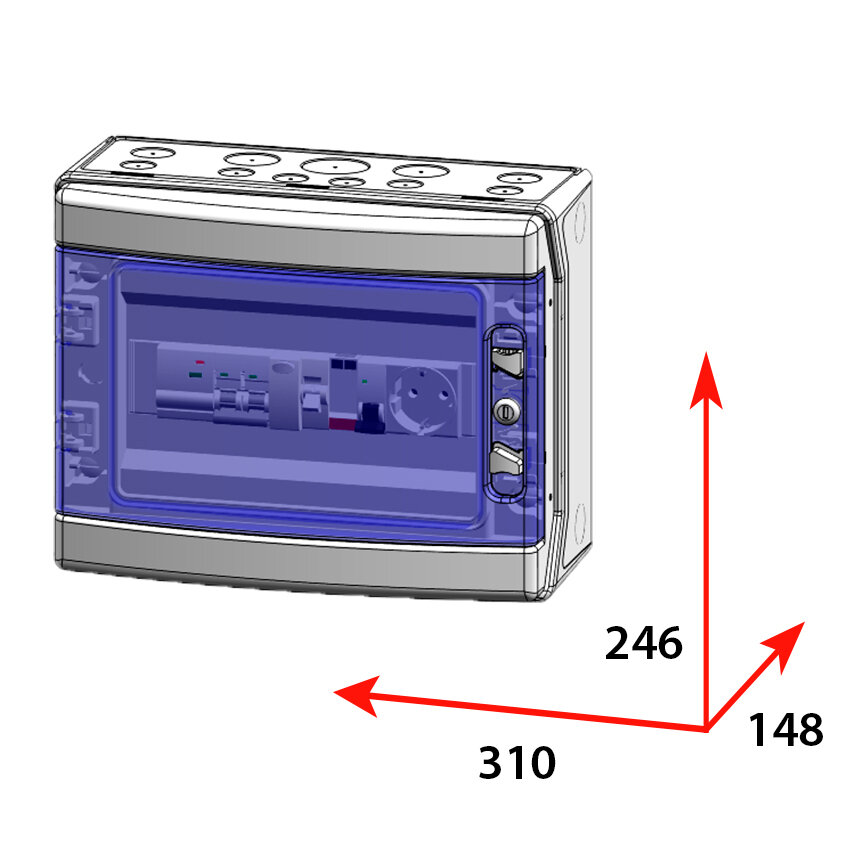

Dimensions
| Product height | 246 mm |
| Product width | 310 mm |
| Product length | 148 mm |
Logistic Data
| Customs code | 85371098 |
