TR210

TR210 220-240 50/60Hz

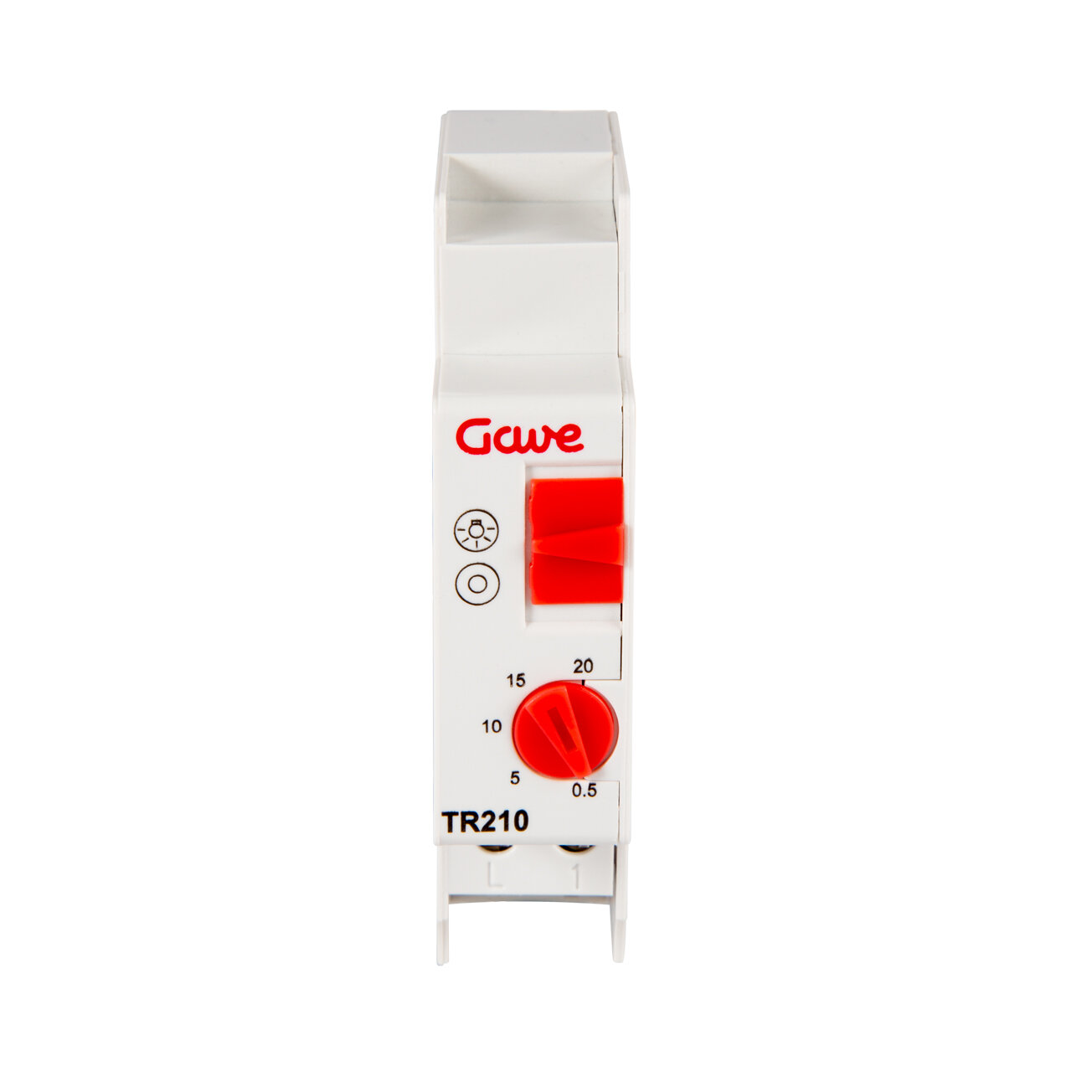

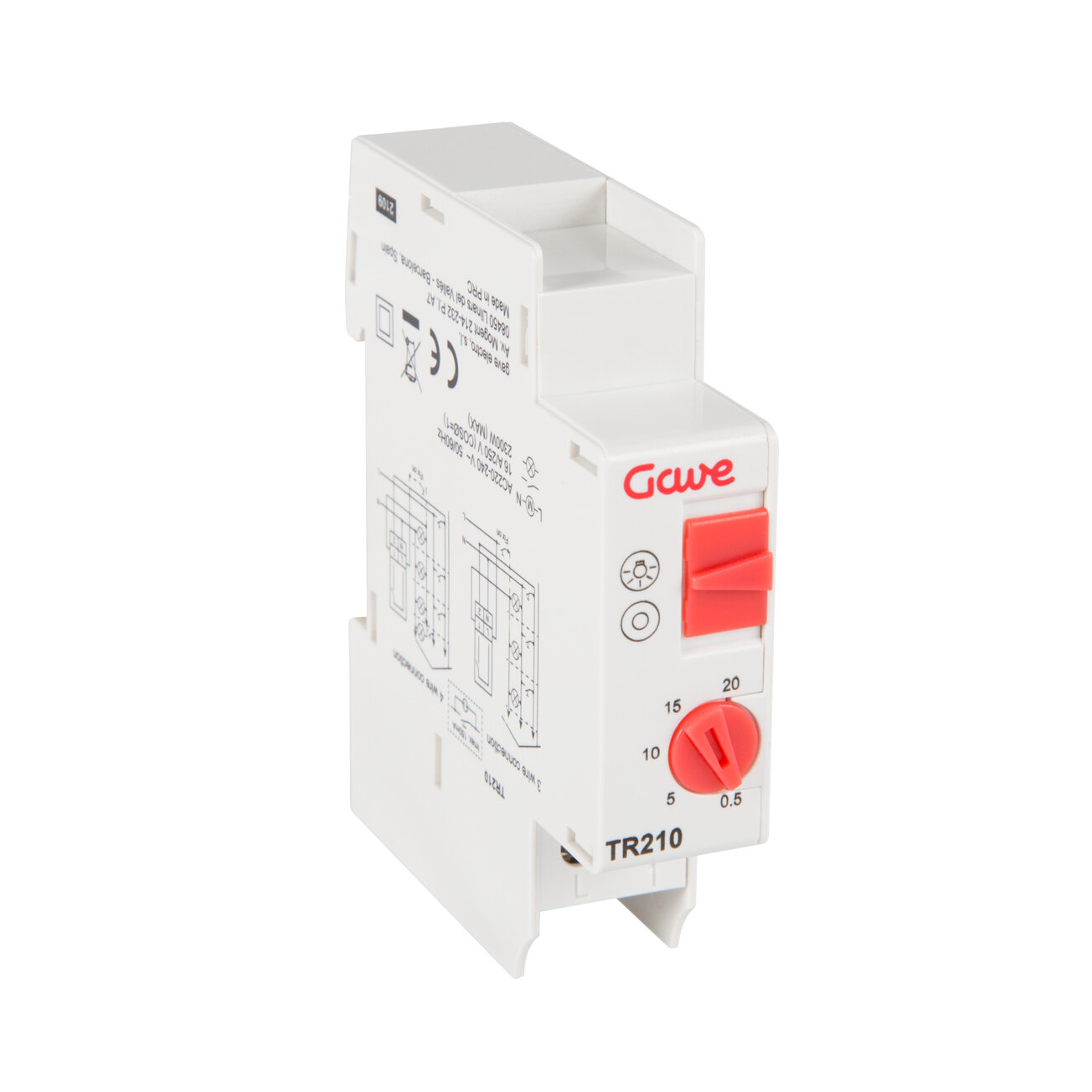

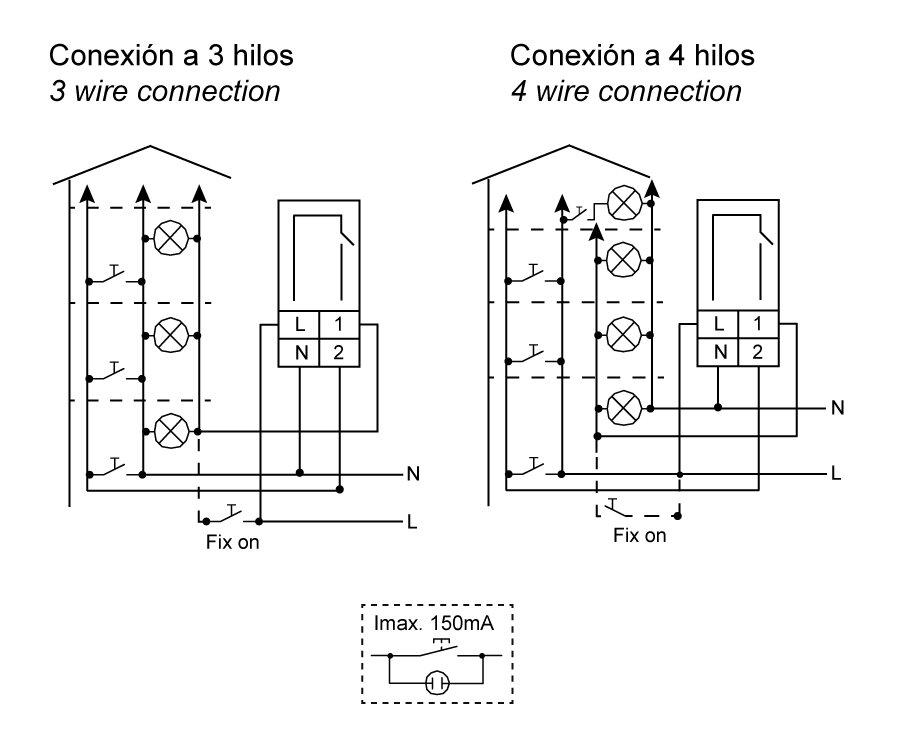

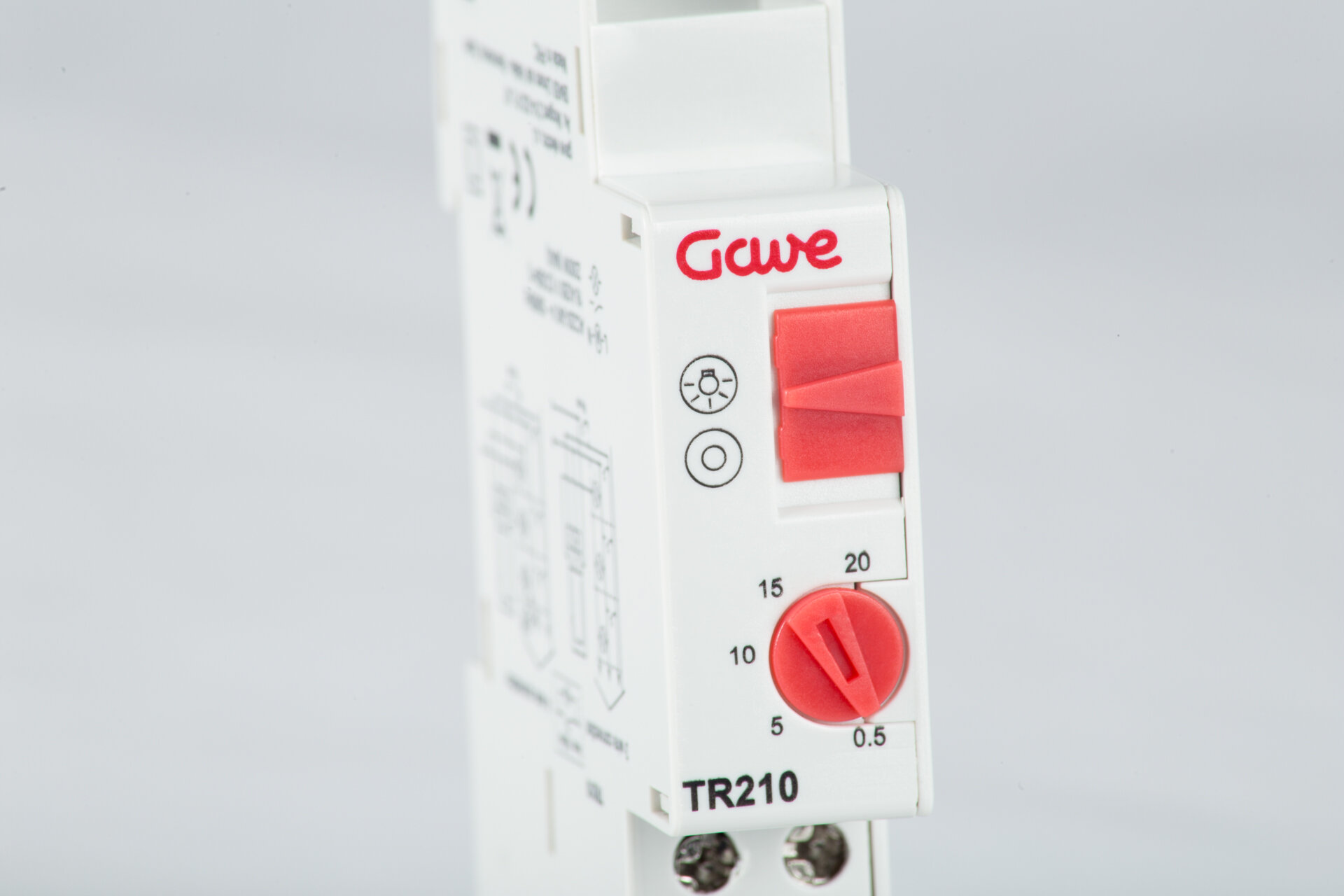

Time switches for staircase lighting, power supply 220-240 50/60Hz, switch for manual control with two positions: automatic and permanent ON, universal installation through automatic recognition of the wiring type (3 or 4 wire), operating time adjustable from 30 seconds to 20 minutes, working temperature from -10°C to 50°C, DIN rail mounting.

Print to PDF

Code 014TR210
EAN 8430892312134

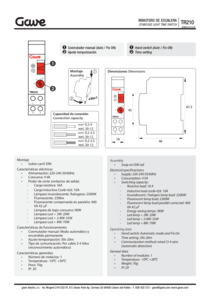

Time switches datasheet
Breaking capacity

Resistive load: 16 A

Inductive load cosⱷ=0,6: 10A

Incandescent / halogen lamp load: 2300W

Fluorescent lamp load: 2300W

Fluorescent lamp load parallel-corrected: 400 VA 42 μF

Energy saving lamps: 90W

Led lamp < 2W: 20W

Led lamp < 2-8W: 55W



Led lamp > 8W: 70W
Connection screw terminal
Supply 220-240 V
Nominal frecuency 50-60Hz
Power consumption 4 VA
Timing range 30s-20min
Degree of protection IP20
Module number 1
Max. wire cross section

4 mm2
Net weight (gr) 70
