PSTC440

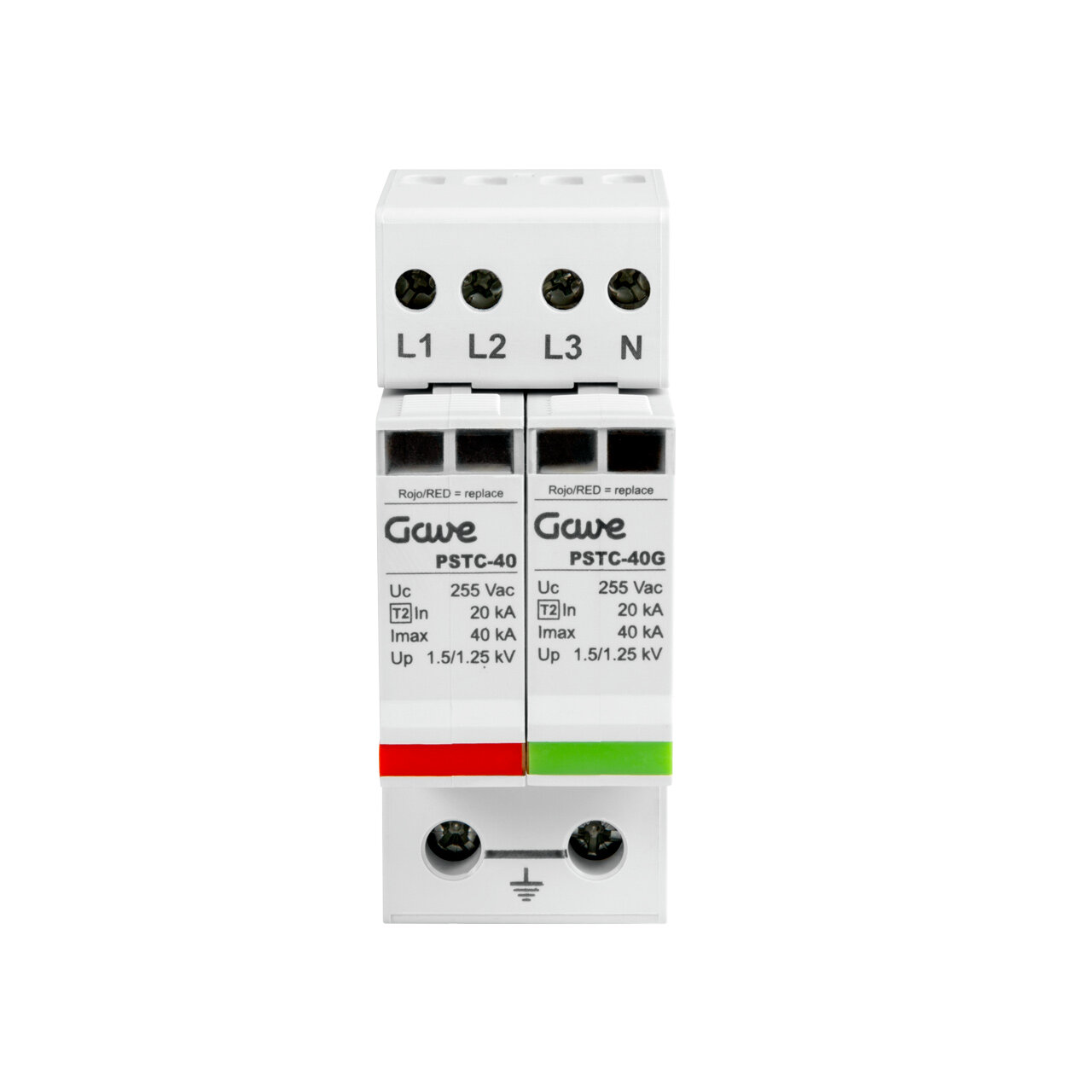

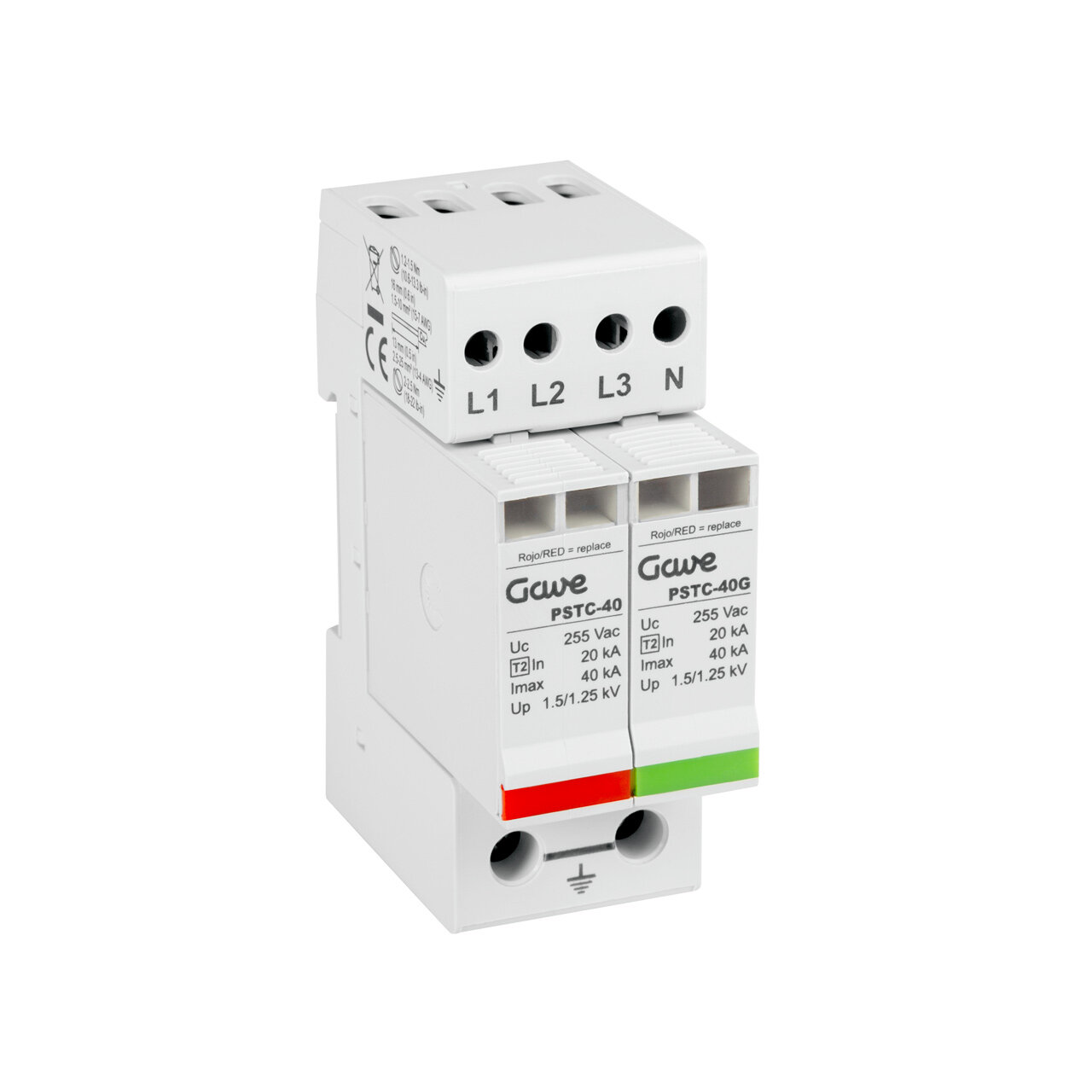

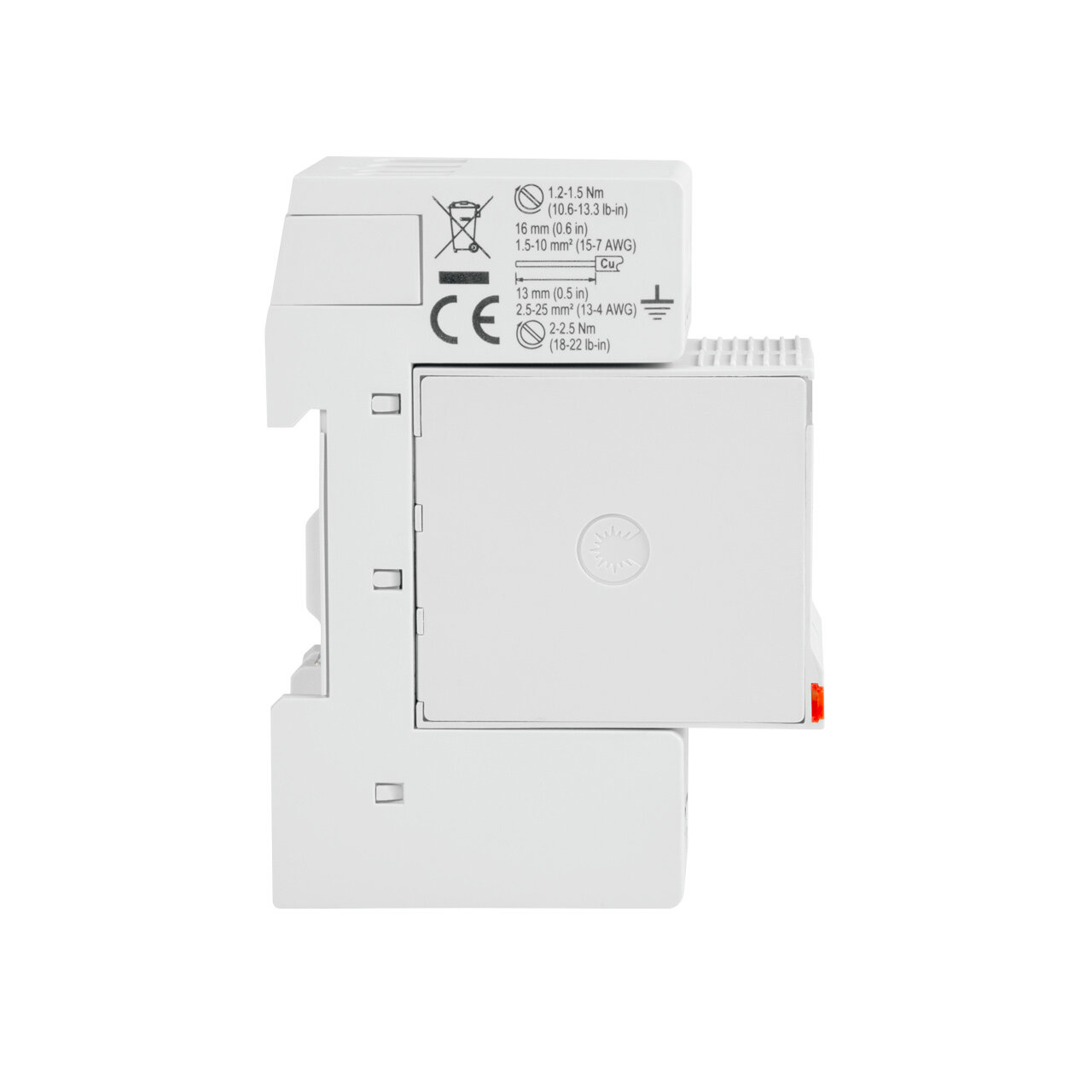

COMPACT SURGE PROTECTOR DEVICE 3PH+N 2 MODULES 40KA
| Code | 002PSTC440 |
| EAN | 8430892228725 |
Combiner box technical data
| Surge protector type | II |
| Max. continuous operating voltage (Ucpv) | 255 VAC |
| Nominal discharge current (In) | 20 kA |
| Maximum discharge current (Imax) | 40 kA |
| Protection level at In (Up) | 1.5/1.25 kV |
| Standards | IEC 61643-11 |
