STM210NSP20S/4

4MPPT 2 STRING IN/OUT SURGE PROTECTION BOX FUSE 20A

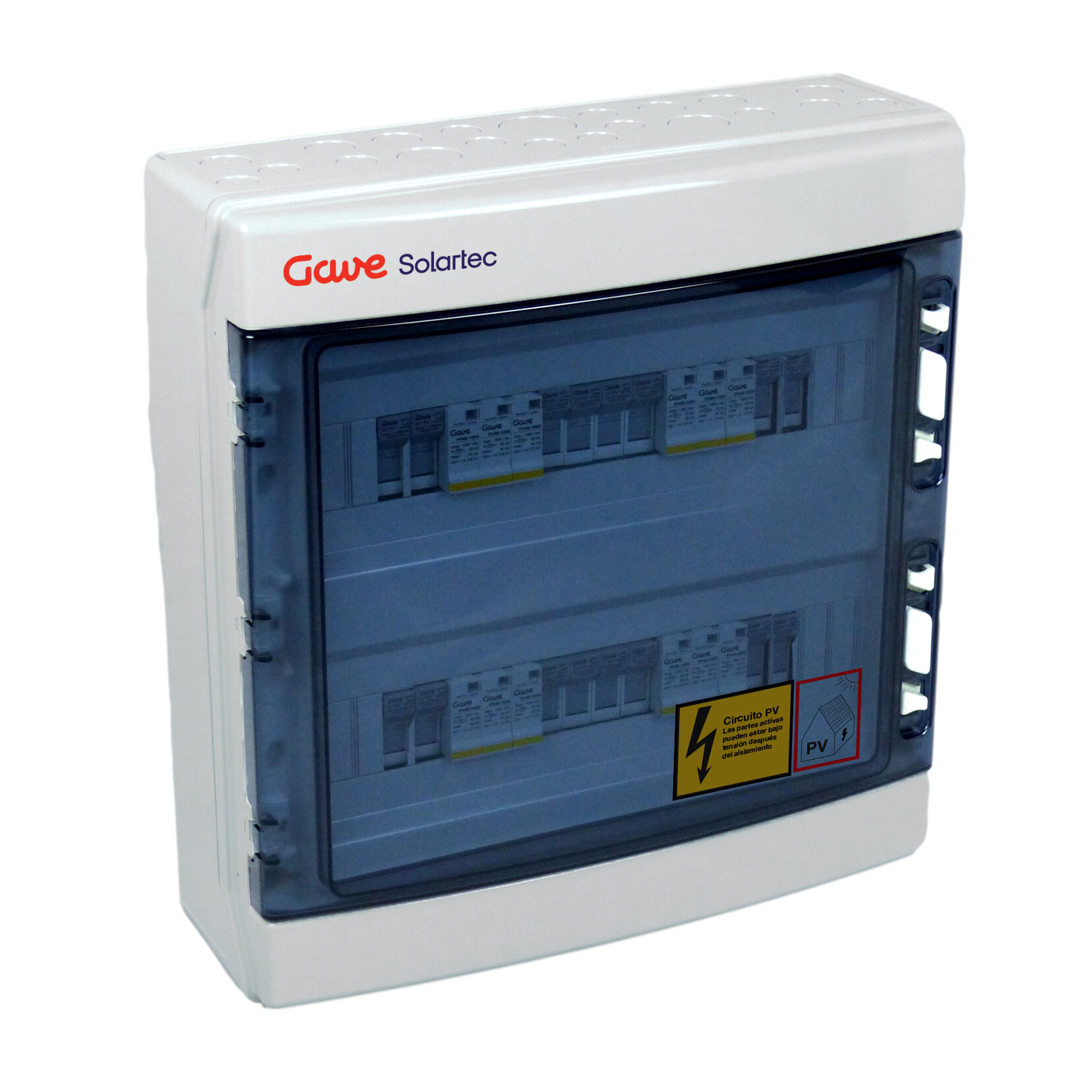

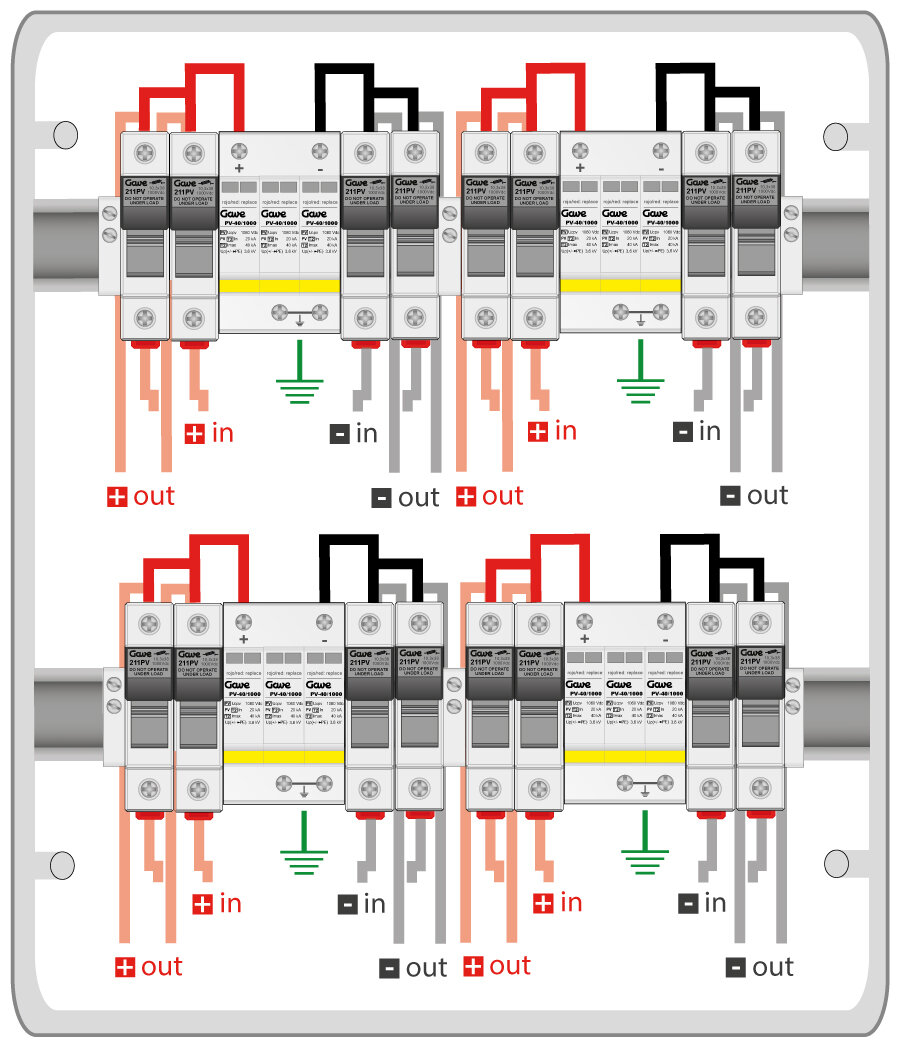

PV surge protection box 4MPPT, 2 strings independent circuits x mppt (8 input, 8 output) fuseholder and fuse 20A gPV + surge protectors class II maximum voltage 1000Vdc, for safe installations. Double insulation class II polycarbonate box suitable for outdoor use with high impact protection (IK08). Dimensions 436x310x148mm.

Print to PDF

Code 029STM210NSP20S/4
EAN 8430892336413
Combiner box technical data
Surge protector Class II
No. of strings per tracker 2
Number of MPPT trackers 4
Fuse current 20
Surge protector code 4 x PST31PV
Surge protector type II
Max. continuous operating voltage (Ucpv) 1060 VDC
Nominal discharge current (In) 20 kA
Maximum discharge current (Imax) 40 kA
Protection level at In (Up) 3,6 kV
Standards IEC EN 6143-1/2
