STM210NSP15S/2

2MPPT 2 STRING IN/OUT SURGE PROTECTION BOX FUSE 15A

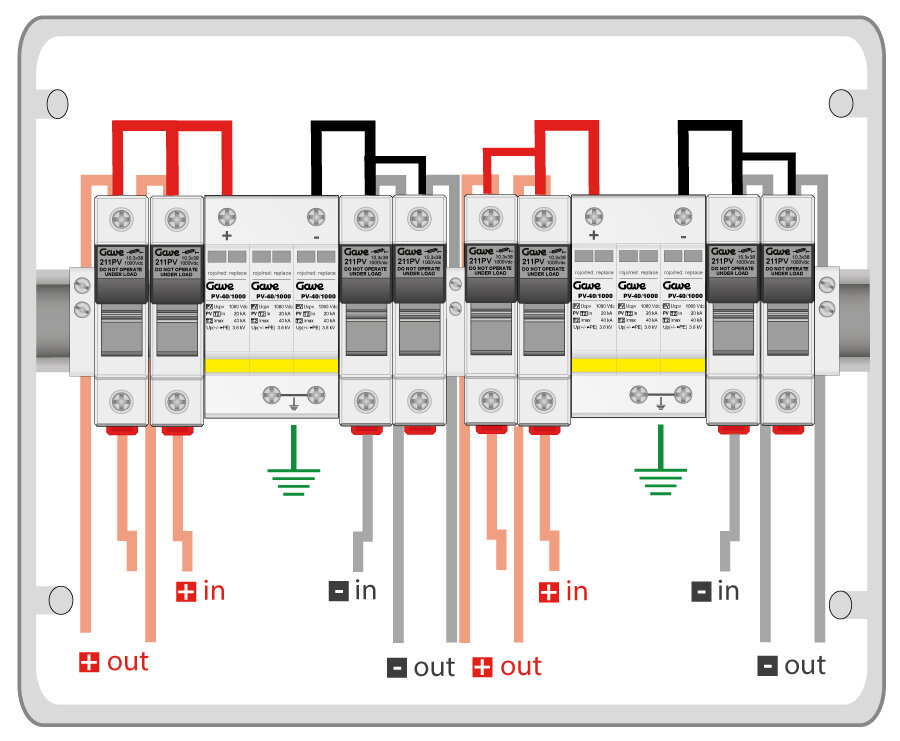

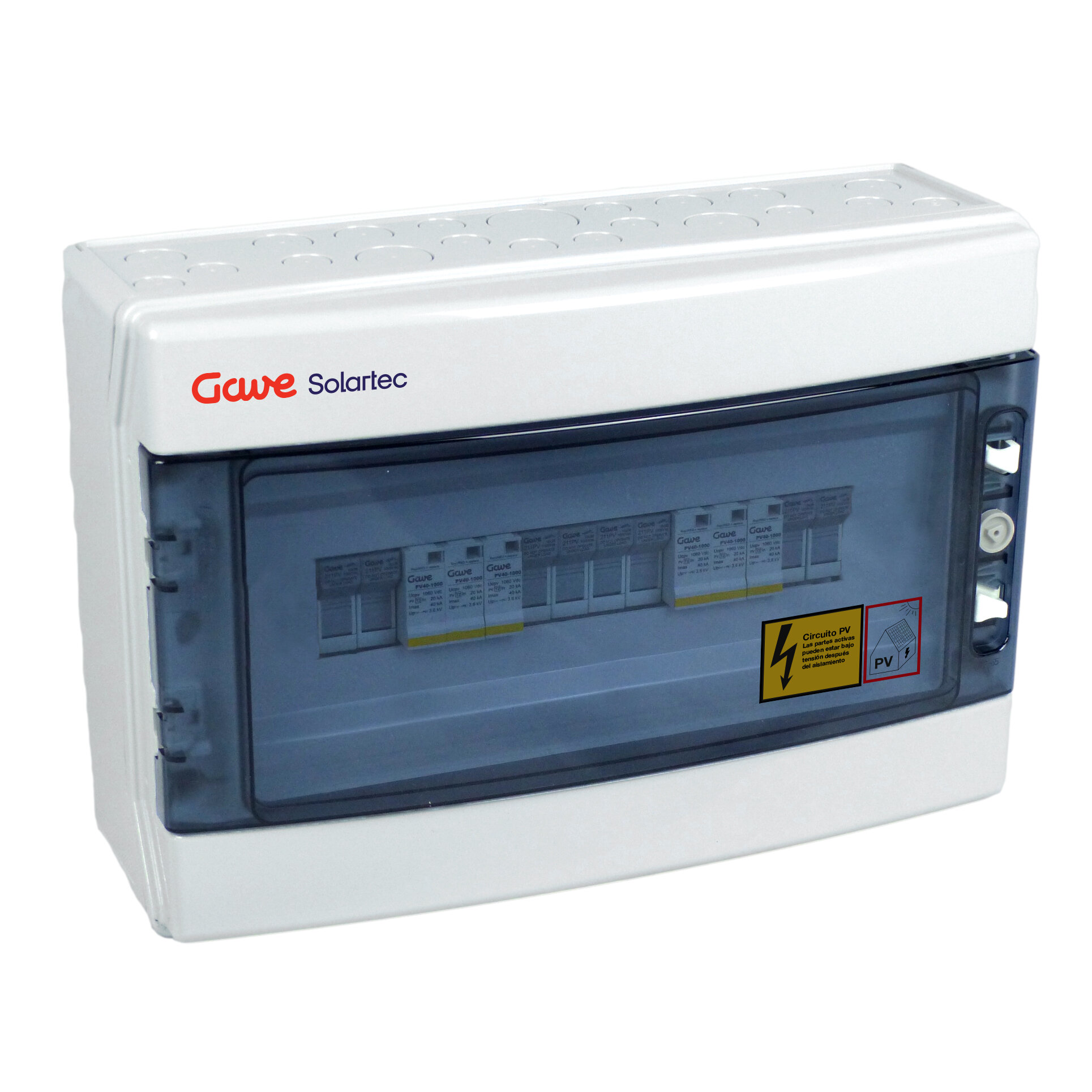

PV surge protection box 2MPPT, 2 strings independent circuits x mppt (4 input, 4 output) fuseholder and fuse 15A gPV + surge protectors class II maximum voltage 1000Vdc, for safe installations. Double insulation class II polycarbonate box suitable for outdoor use with high impact protection (IK08). Dimensions 286x418x148mm.

Print to PDF

Code 029STM210NSP15S/2
EAN 8430892303187
Combiner box technical data
Surge protector Class II
No. of strings per tracker 2
Number of MPPT trackers 2
Fuse current 15
Surge protector code 2 x PST31PV
Surge protector type II
Max. continuous operating voltage (Ucpv) 1060 VDC
Nominal discharge current (In) 20 kA
Maximum discharge current (Imax) 40 kA
Protection level at In (Up) 3,6 kV
IP IP65 - IEC 60529
IK IK08 - IEC 62262
Standards IEC EN 6143-1/2
Dimensions
Product height 290 mm
Product width 420 mm
Product length 160 mm
Product weight (kg) 3.44
