STM210NSP12S/3

3MPPT 2 STRING IN/OUT SURGE PROTECTION BOX FUSE 12A

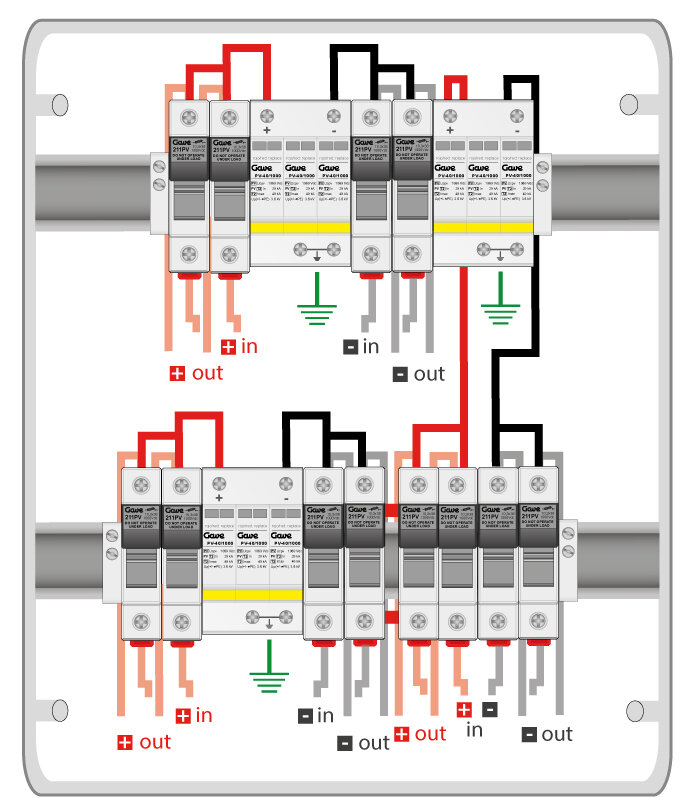

PV surge protection box 3MPPT, 2 strings independent circuits x mppt (6 input, 6 output) fuseholder and fuse 12A gPV + surge protectors class II maximum voltage 1000Vdc, for safe installations. Double insulation class II polycarbonate box suitable for outdoor use with high impact protection (IK08). Dimensions 436x310x148mm.

Print to PDF

Code 029STM210NSP12S/3
EAN 8430892307260
Combiner box technical data
Surge protector Class II
No. of strings per tracker 2
Number of MPPT trackers 3
Fuse current 12
Nominal discharge current (In) 20 kA
IP IP65 - IEC 60529
IK IK08 - IEC 62262
