STM21025P15S/2

2MPPT MODULAR COMBINER BOX 2 STRINGS IN/OUT TWO CIRCUITS 25A SWITCH 15A FUSE + SURGE PROTECTOR II

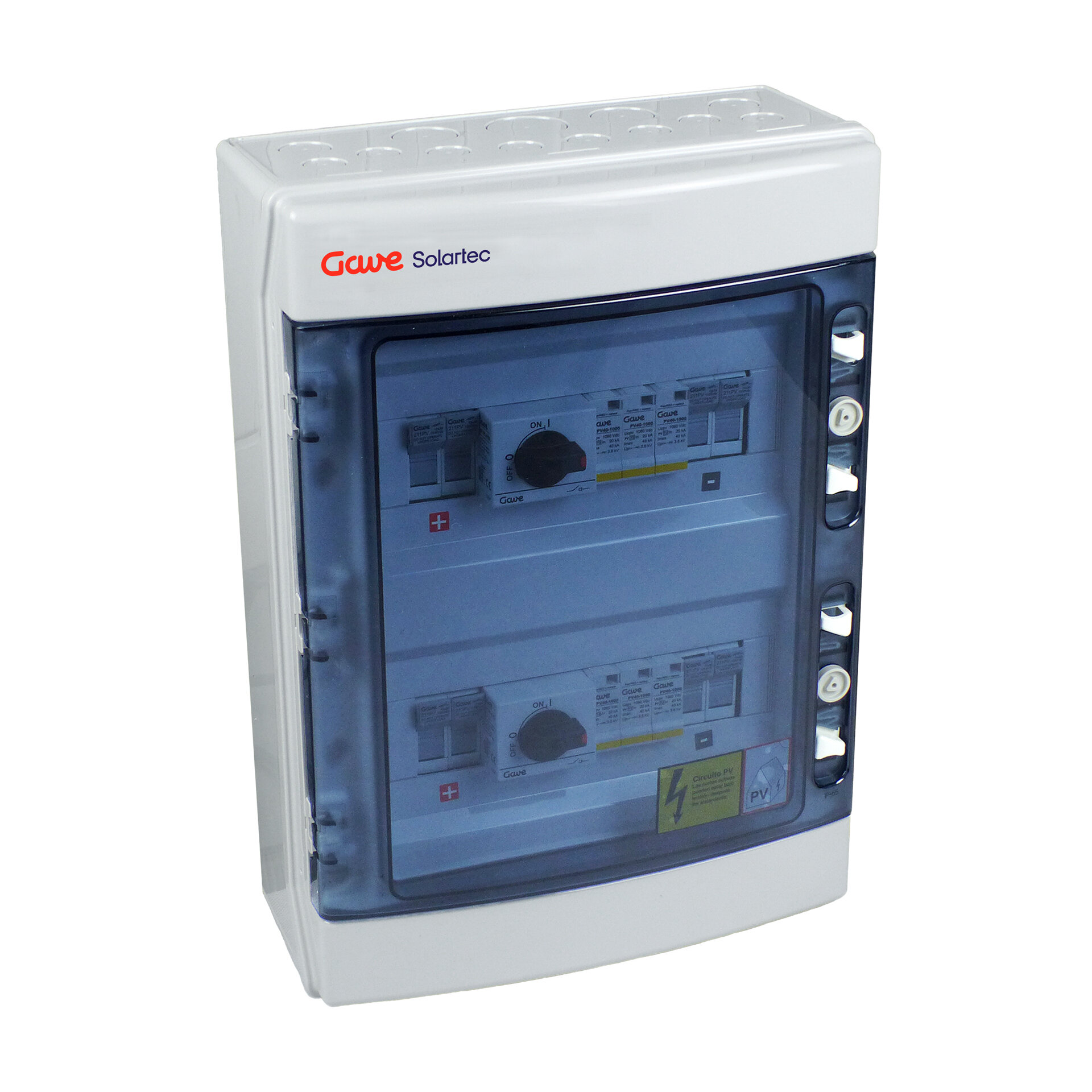

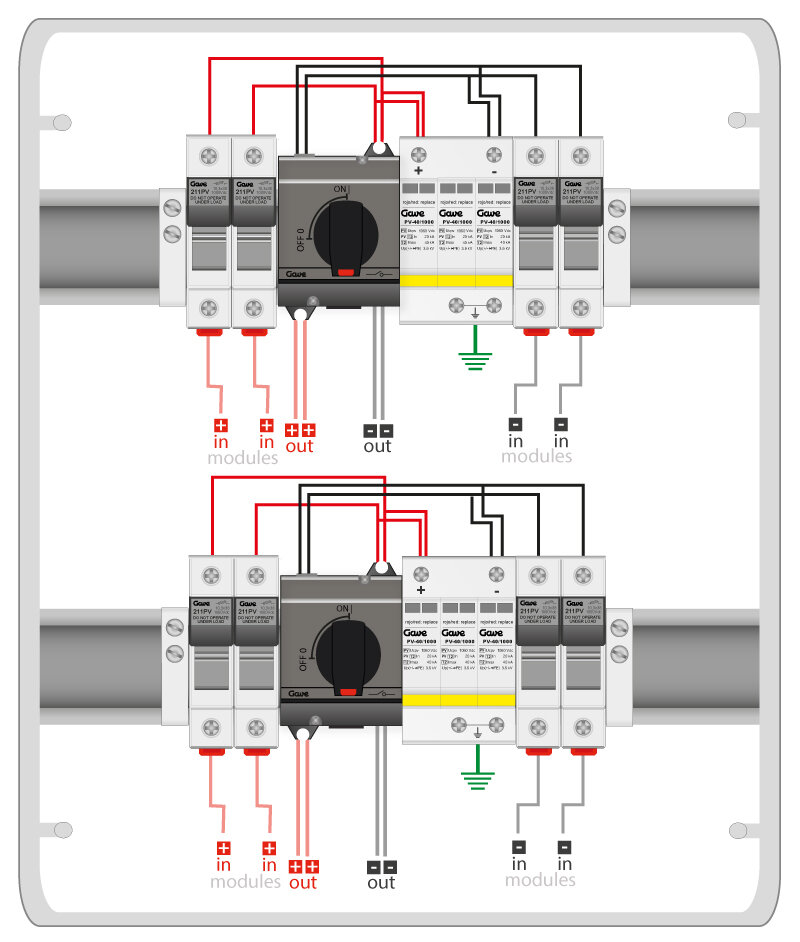

PV modular combiner box 2MPPT, 2 strings independent circuits x mppt (4 input, 4 output) fuseholder and fuse 15A gPV + switch-disconnectors 2 circuitos 25A + surge protectors class II maximum voltage 1000Vdc, for safe installations. Double insulation class II polycarbonate box suitable for outdoor use with high impact protection (IK08). Dimensions 436x310x148mm.

Print to PDF

Code 029STM21025P15S/2
EAN 8430892303149
Combiner box technical data
Operating voltage (Ue) 1000 V DC
Surge protector Tipo II
Inputs current rating 2X25A
No. of strings per tracker 2
Number of MPPT trackers 2
Fuse current 15
Surge protector code 2 x PST31PV
Surge protector type II
Max. continuous operating voltage (Ucpv) 1060 VDC
Nominal discharge current (In) 20 kA
Maximum discharge current (Imax) 40 kA
Protection level at In (Up) 3,6 kV
IP IP65 - IEC 60529
IK IK08 - IEC 62262
Standards IEC EN 6143-1/2
Dimensions
Product height 436 mm
Product width 310 mm
Product length 148 mm
