STM110NSP15/2

2MPPT 1 STRING SURGE PROTECTION BOX FUSE 15A

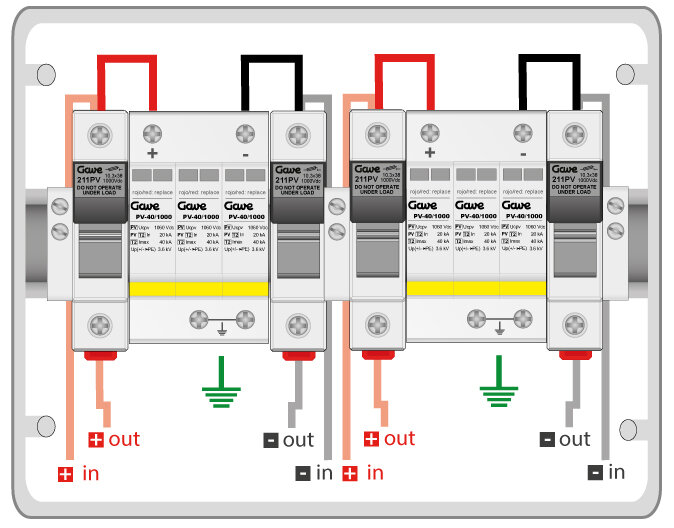

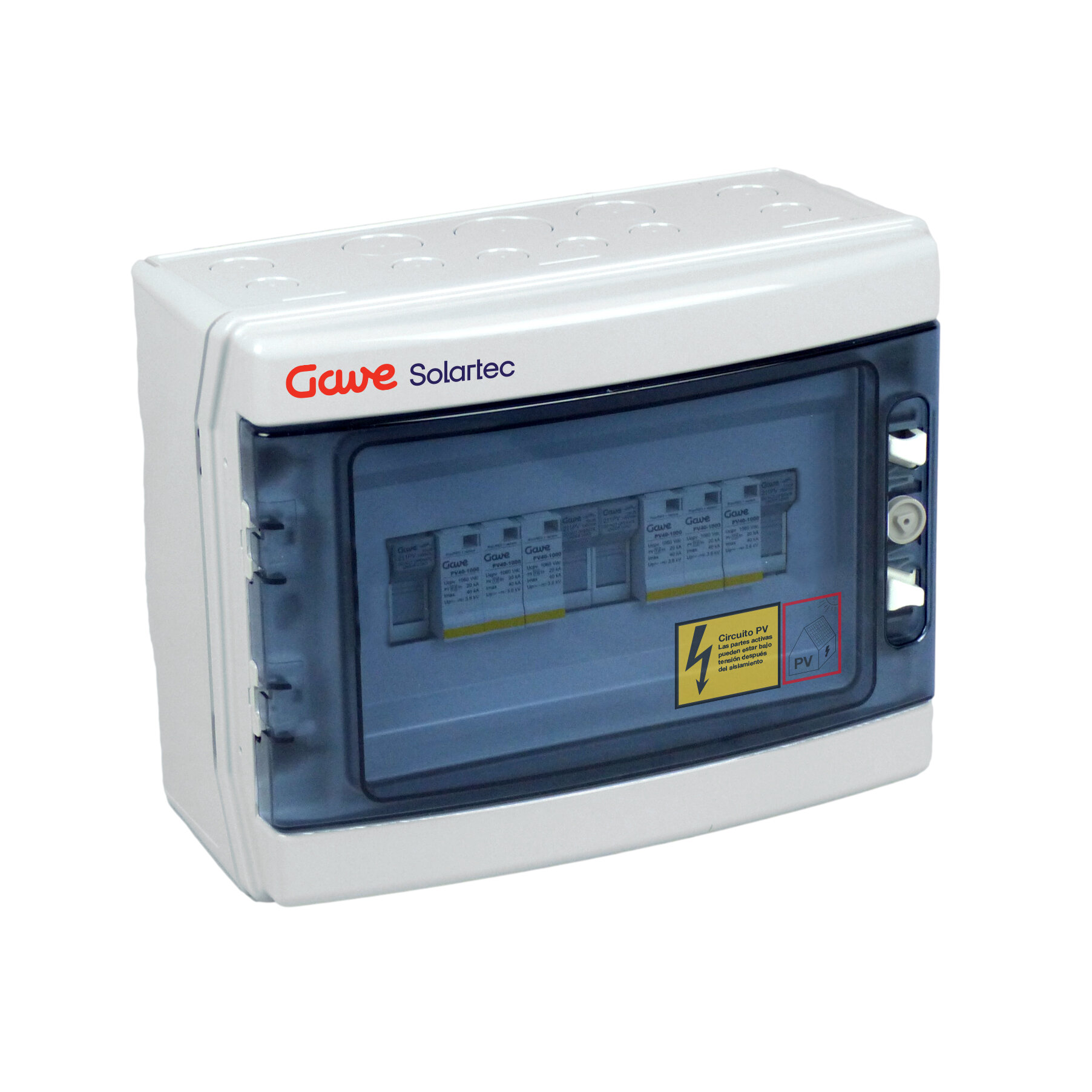

PV surge protection box 2MPPT, 1string x mppt (2 input, 2 output) x fuseholder and fuse 15A gPV + surge protector class II maximum voltage 1000Vdc, for safe installations. Double insulation class II polycarbonate box suitable for outdoor use with high impact protection (IK08). Dimensions 246x310x148mm.

Print to PDF

Code 029STM110NSP15/2
EAN 8430892308021
Combiner box technical data
Operating voltage (Ue) 1000 V DC
Surge protector Tipo II
No. of strings per tracker 1
Number of MPPT trackers 2
Fuse current 15
Surge protector code 2 x PST31PV
Surge protector type II
Max. continuous operating voltage (Ucpv) 1060 VDC
Nominal discharge current (In) 20 kA
Maximum discharge current (Imax) 40 kA
Protection level at In (Up) 3,6 kV
IP IP65 - IEC 60529
IK IK08 - IEC 62262
Standards IEC EN 6143-1/2

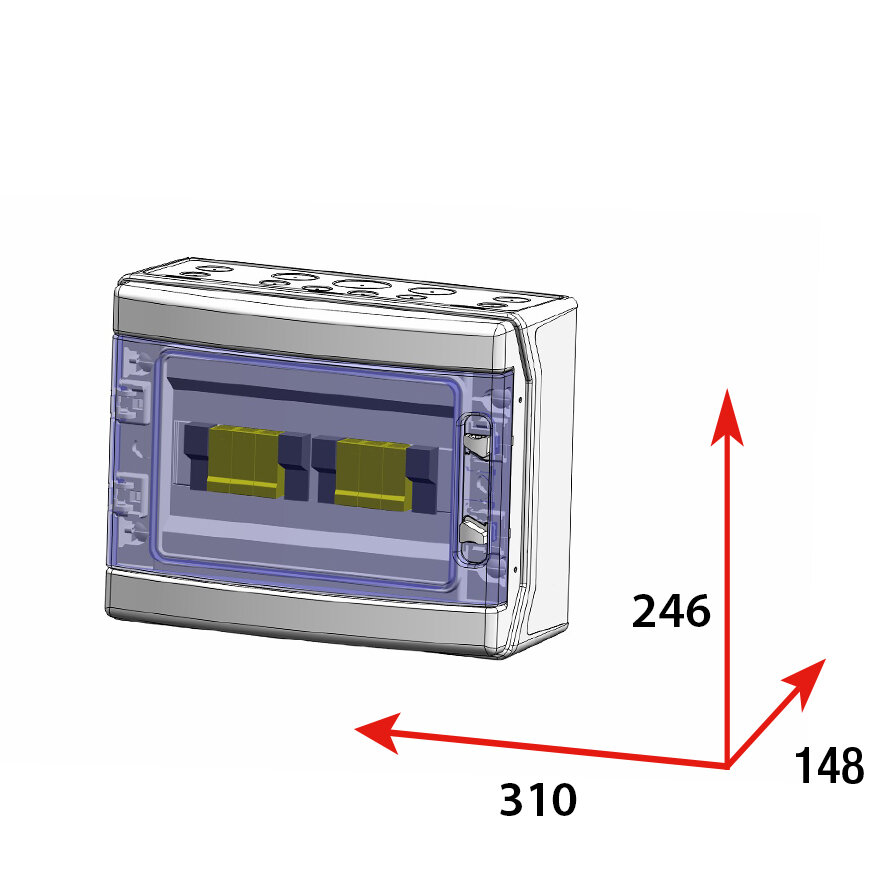

Dimensions
Product weight (kg) 2.4
