STM11025P20/4

4MPPT MODULAR COMBINER BOX - 1 STRING FUSE 20A + SURGE PROTECTOR II
PV modular combiner box 4MPPT, 1string x mppt (4 input, 4 output) x fuseholder and fuse 20A gPV + switch-disconnector 25 A+ surge protector class II maximum voltage 1000Vdc, for safe installations. Double insulation class II polycarbonate box suitable for outdoor use with high impact protection (IK08). Dimensions 436x418x148mm.

Print to PDF

Code 029STM11025P20/4
EAN 8430892318952
Combiner box technical data
Surge protector Class II
No. of strings per tracker 1
Number of MPPT trackers 4
Fuse current 20
Surge protector code 4 x PST31PV
Surge protector type II
Max. continuous operating voltage (Ucpv) 1060 VDC
Nominal discharge current (In) 20 kA
Maximum discharge current (Imax) 40 kA
Protection level at In (Up) 3,6 kV
IP IP65 - IEC 60529
IK IK08 - IEC 62262
Standards IEC EN 6143-1/2

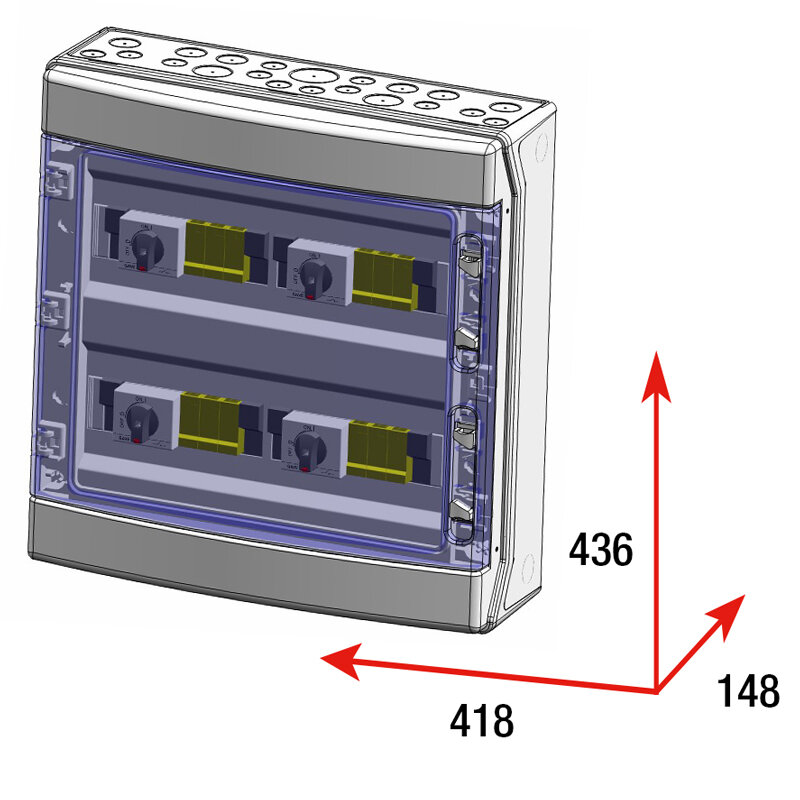

Dimensions
Product height 436 mm
Product width 418 mm
Product length 148 mm
