STM11025P12/5

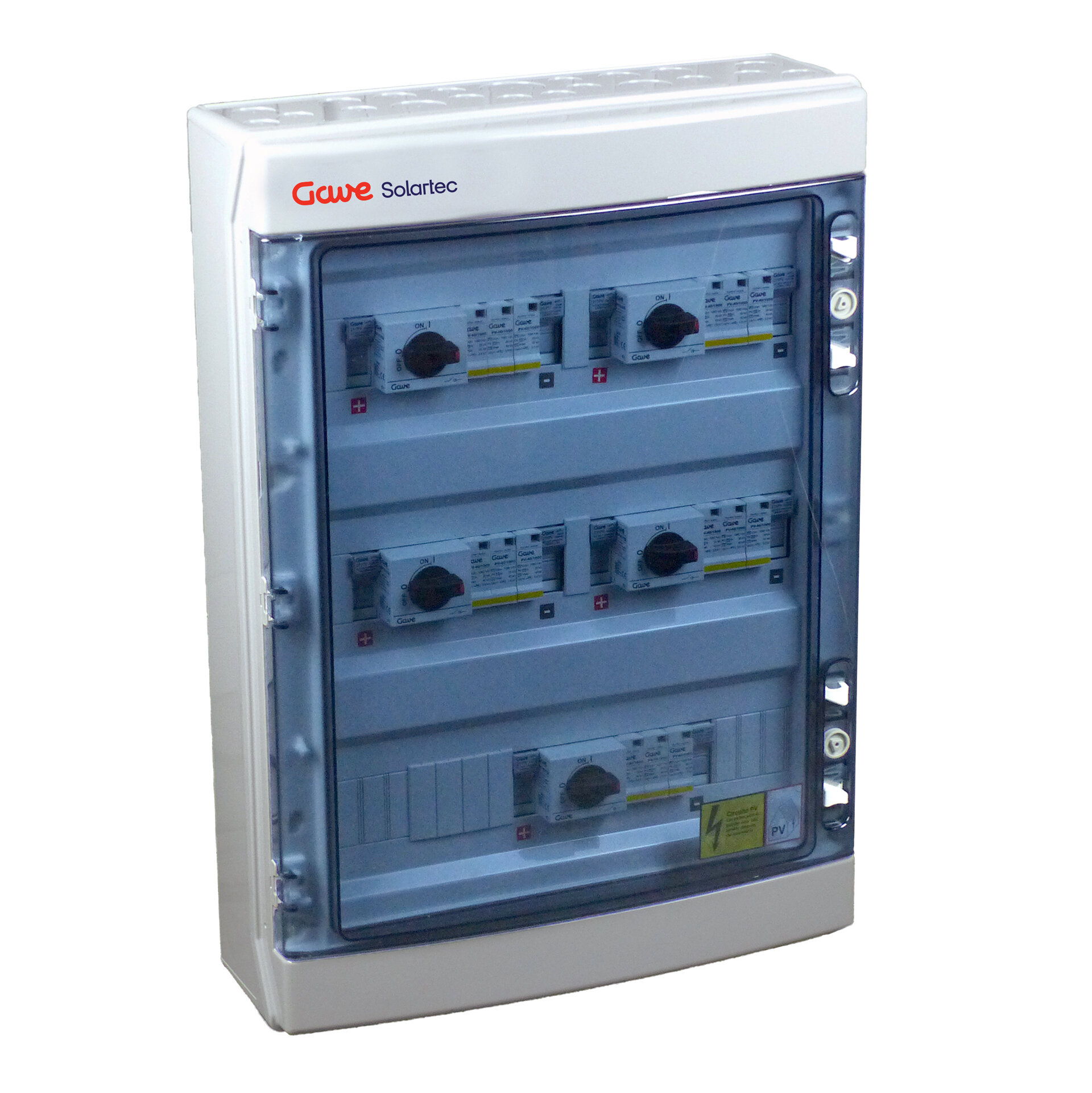

5MPPT MODULAR COMBINER BOX - 1 STRING FUSE 12A + SURGE PROTECTOR II

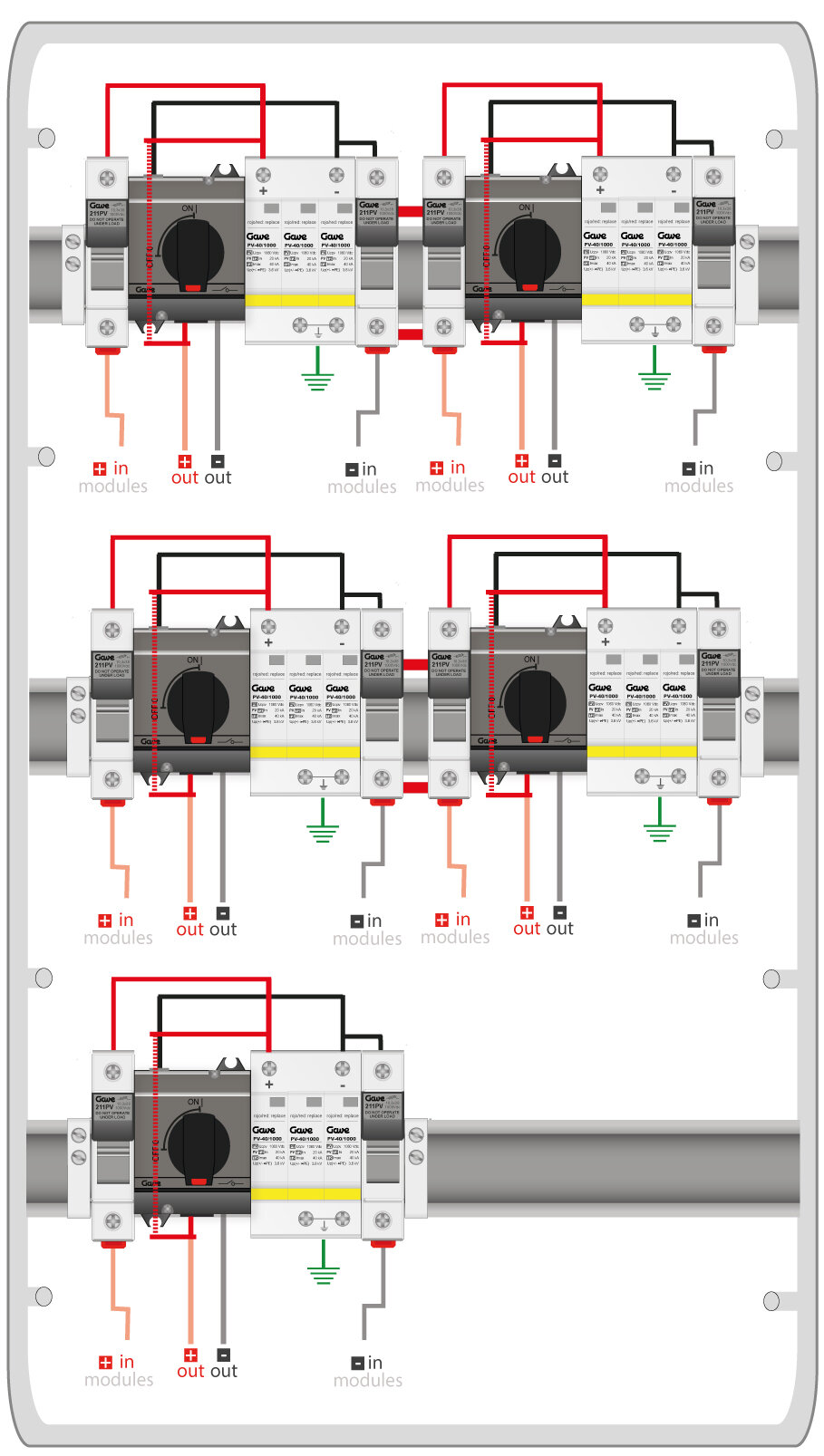

PV modular combiner box 5MPPT, 1string x mppt (5 input, 5 output) x fuseholder and fuse 12A gPV + switch-disconnector 25 A+ surge protector class II maximum voltage 1000Vdc, for safe installations. Double insulation class II polycarbonate box suitable for outdoor use with high impact protection (IK08). Dimensions 586x418x148mm.

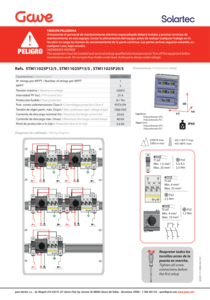

Print to PDF

Code 029STM11025P12/5
EAN 8430892318969
Combiner box technical data
Operating voltage (Ue) 1000 V DC
Surge protector Tipo II
No. of strings per tracker 1
Number of MPPT trackers 5
Fuse current 12
Surge protector code PST31PV
Surge protector type II
Nominal discharge current (In) 20 kA
Maximum discharge current (Imax) 40 kA
Protection level at In (Up) 3,6 kV
IP IP65 - IEC 60529
IK IK08 - IEC 62262
Dimensions
Product height 586 mm
Product width 418 mm
Product length 148 mm
