STM11025P12/4

4MPPT MODULAR COMBINER BOX - 1 STRING FUSE 12A + SURGE PROTECTOR II

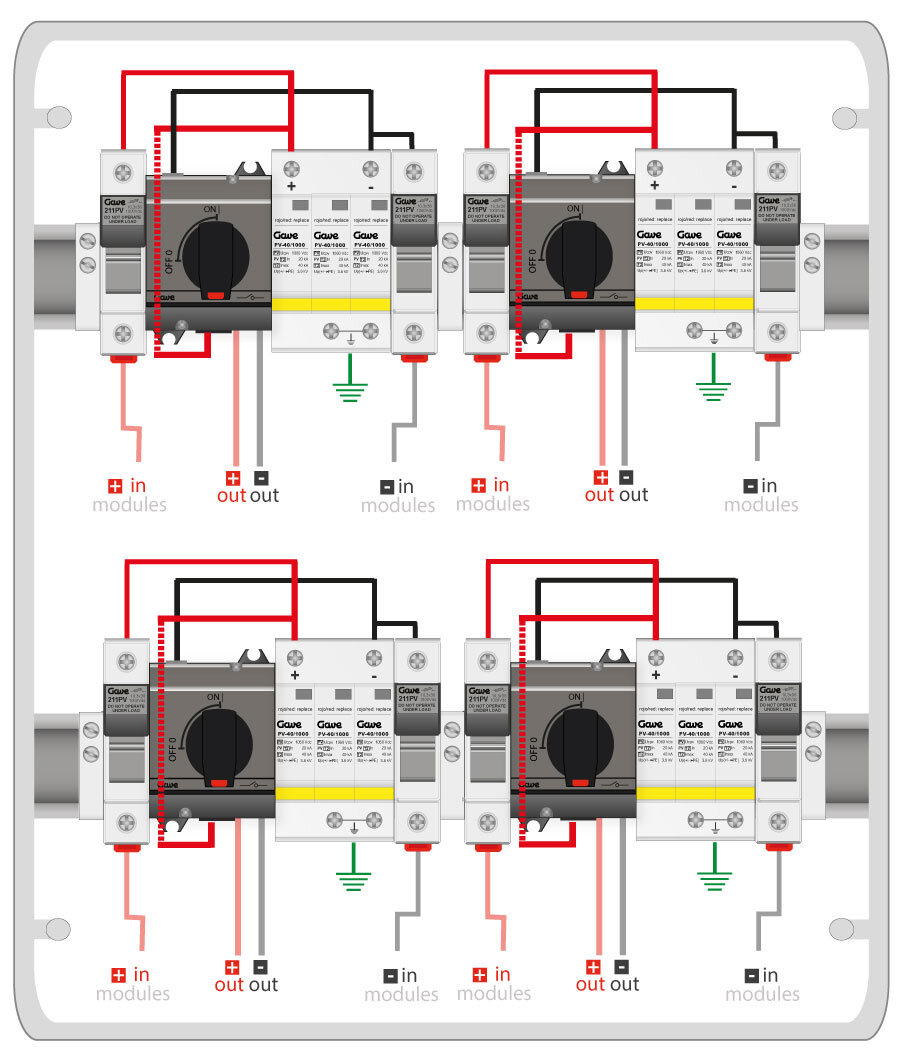

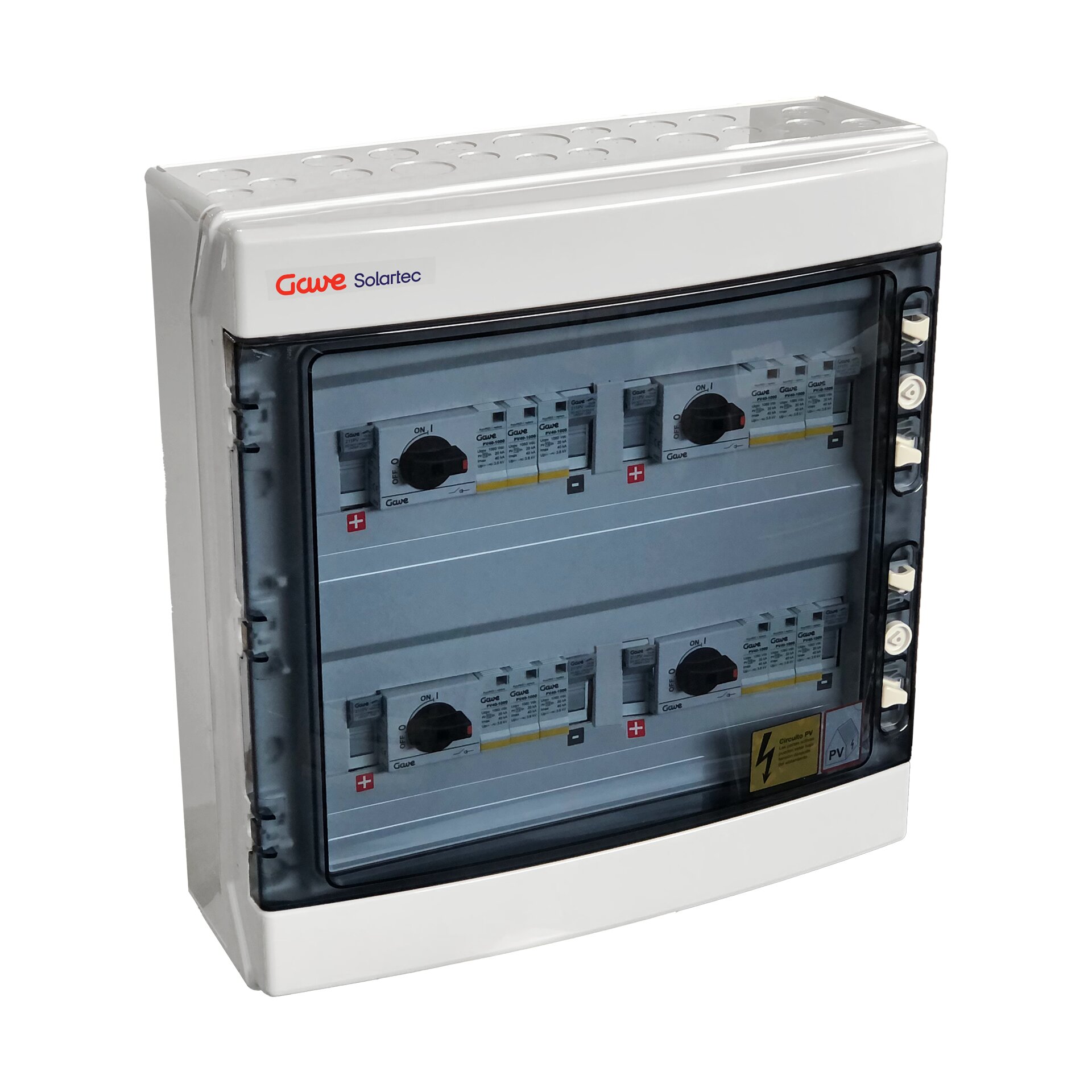

PV modular combiner box 4MPPT, 1string x mppt (4 input, 4 output) x fuseholder and fuse 12A gPV + switch-disconnector 25 A+ surge protector class II maximum voltage 1000Vdc, for safe installations. Double insulation class II polycarbonate box suitable for outdoor use with high impact protection (IK08). Dimensions 436x418x148mm.

Print to PDF

Code 029STM11025P12/4
EAN 8430892318938
Combiner box technical data
Operating voltage (Ue) 1000 V DC
Surge protector Tipo II
Inputs current rating 4x25A
No. of strings per tracker 1
Number of MPPT trackers 4
Fuse current 12
Surge protector code 4 x PST31PV
Surge protector type II
Max. continuous operating voltage (Ucpv) 1060 VDC
Nominal discharge current (In) 20 kA
Maximum discharge current (Imax) 40 kA
Protection level at In (Up) 3,6 kV
IP IP65 - IEC 60529
IK IK08 - IEC 62262
Standards IEC EN 6143-1/2
