STM11025D15/3

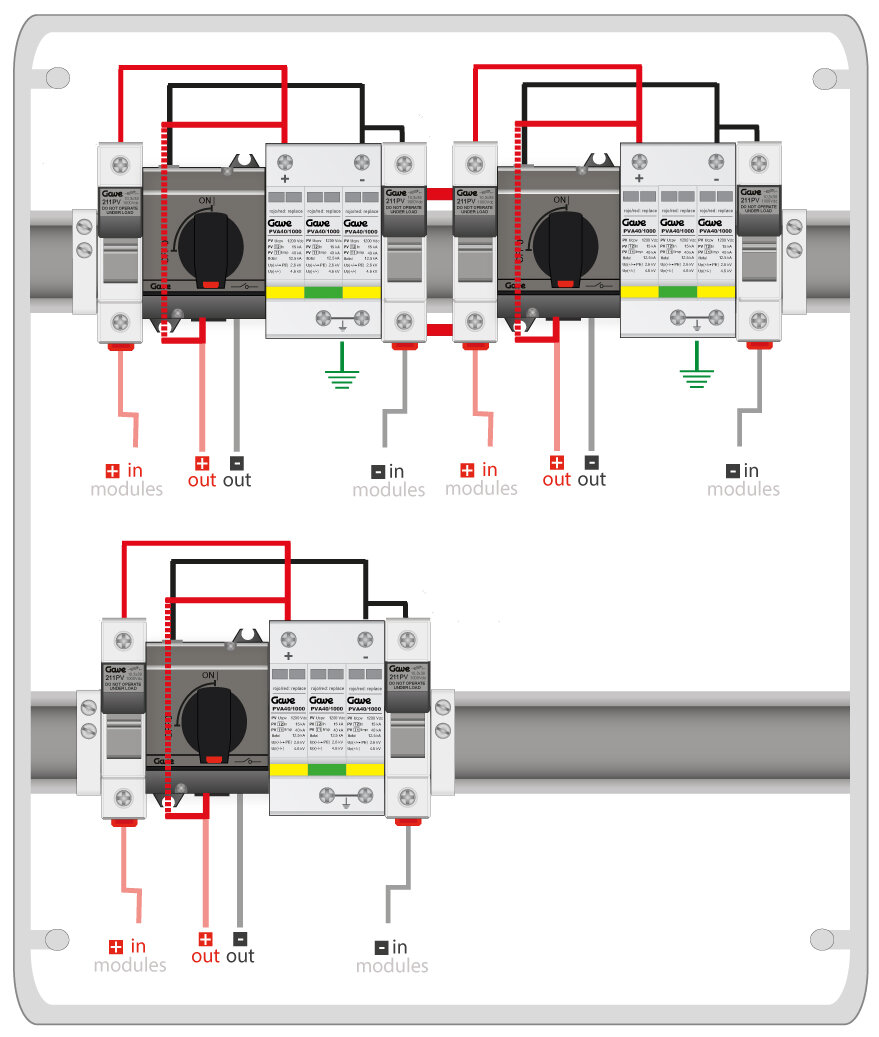

3MPPT MODULAR COMBINER BOX - 1 STRING FUSE 15A + SURGE PROTECTOR I+II
PV modular combiner box 4MPPT, 1string x mppt (3 input, 3 output) x fuseholder and fuse 15A gPV + switch-disconnector 25 A+ surge protector class I+II , for safe installations. Double insulation class II polycarbonate box suitable for outdoor use with high impact protection (IK08). Dimensions 436x418x148mm.

Print to PDF

Code 029STM11025D15/3
EAN 8430892334693
Combiner box technical data
Surge protector Class I+II
No. of strings per tracker 1
Number of MPPT trackers 3
Fuse current 15
Surge protector code 3x PST31APV
Surge protector type I + II
Max. continuous operating voltage (Ucpv) 1200 VDC
Maximum impulse current (Iimp) 6.25 kA
Nominal discharge current (In) 15 kA
Maximum discharge current (Imax) 40 kA
Protection level at In (Up) 2,6 / 4,6 Kv
IP IP65 - IEC 60529
IK IK08 - IEC 62262
Standards IEC EN 6143-1/2
