SLA21025P20S/8
8 MPPT MODULAR COMBINER BOX 2 STRINGS IN/OUT TWO CIRCUITS 25A SWITCH 20A FUSE + SURGE PROTECTOR II

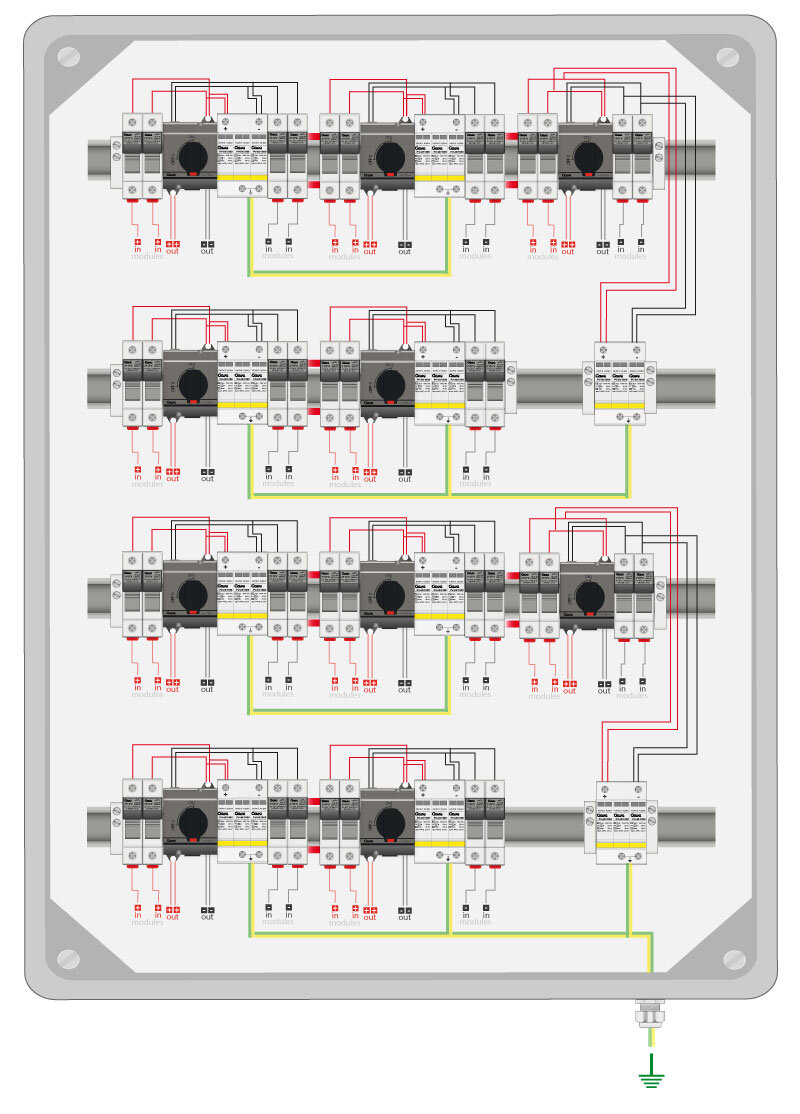

PV combiner box 8 MPPT, 2 strings independent circuits x mppt (16 input, 16 output) fuseholder and fuse 20A gPV + switch-disconnectors 2 circuits 25A + surge protectors class II maximum voltage 1000Vdc, for safe installations. Enclosure in selfextinguishing glass reinforced polyester color RAL 7035 with 180º opening door and double bit lock. High protection against outdoor elements IP66 and against impacts IK10. Supplied with mounted cable glands for each string, for the load output and the earthing output. Dimensions 800x600x300.
