SP081016P15

PV COMBINER BOX 8 STRINGS - FUSE 15A -SWITCH DISCONNECTOR 160A + SURGE PROTECTOR

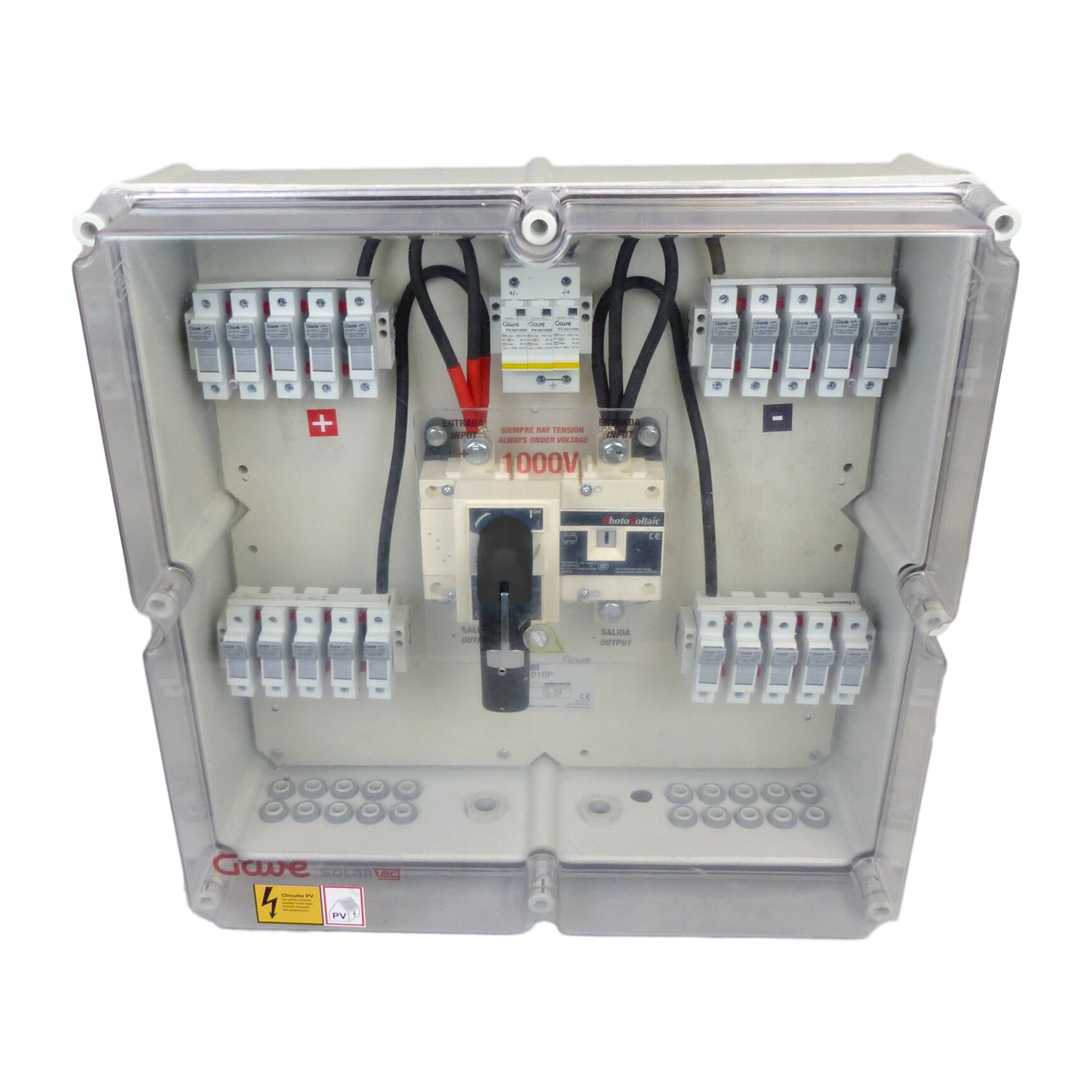

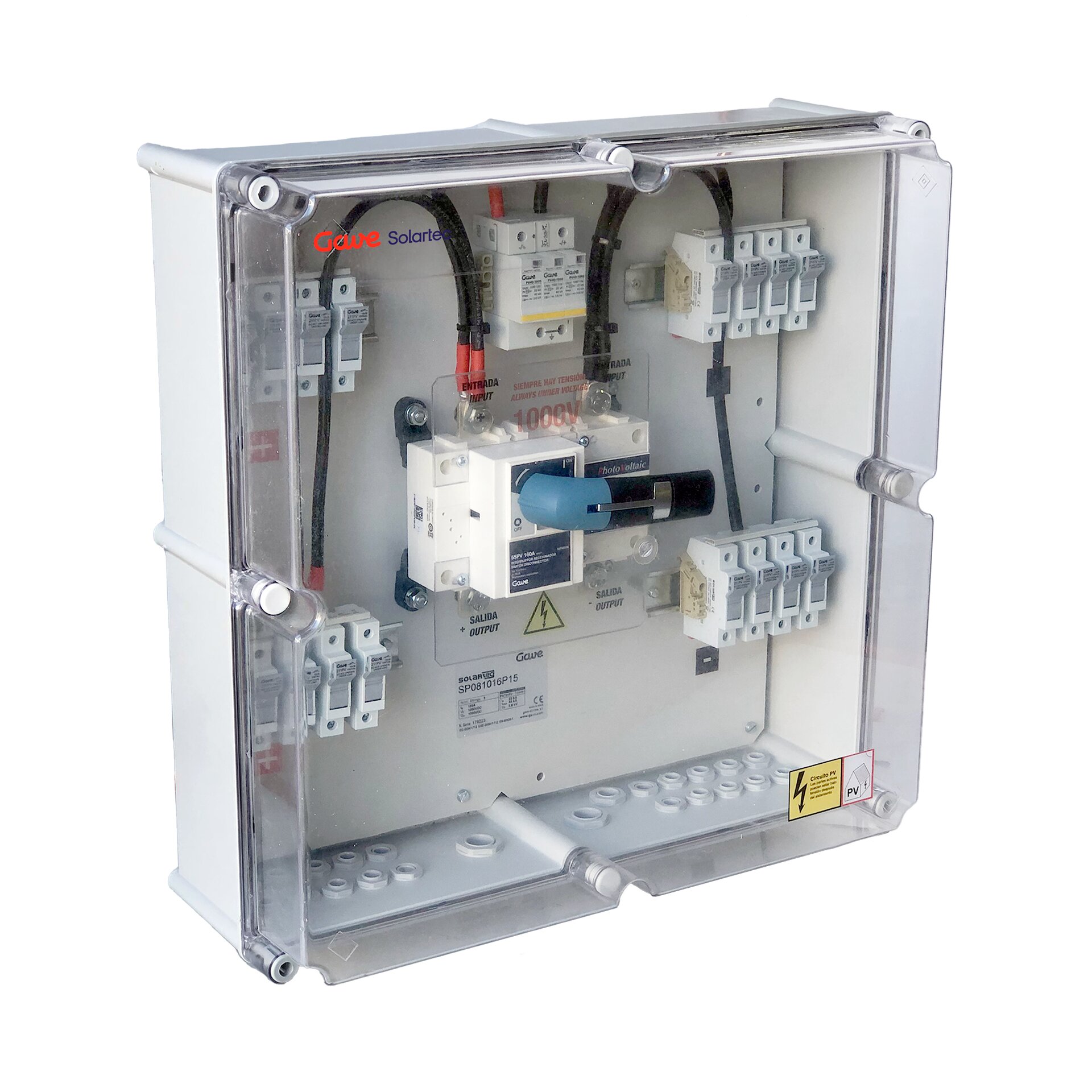

PV combiner box for 8 strings + fuseholder and 15A gPV fuse + switch-disconnector 160A +surge protector class II maximum voltage 1000Vdc, to set up reliable and safe installations. Box in selfextinguishing glass reinforced polyester with cover in transparent polycarbonate. Enclosure bottom part equipped with individual cable glands for each string, for the load output and the earthing output. Protection screens on the switch live parts. Safety signs according to standard requirements. Dimensions 540x201x540mm.

Print to PDF

Code 029SP081016P15
EAN 8430892302630
Combiner box technical data
No. of strings per tracker 8
Fuse current 15 A
Maximum voltage (Uoc max) 1000 V
Surge protector code 1 x PST31PV
Surge protector type II
Max. continuous operating voltage (Ucpv) 1060 VDC
Nominal discharge current (In) 20 kA
Maximum discharge current (Imax) 40 kA
Protection level at In (Up) 3,6 kV
IP IP66 - IEC 60529
IK IK09 - IEC 62262
Standards IEC EN 6143-1/2

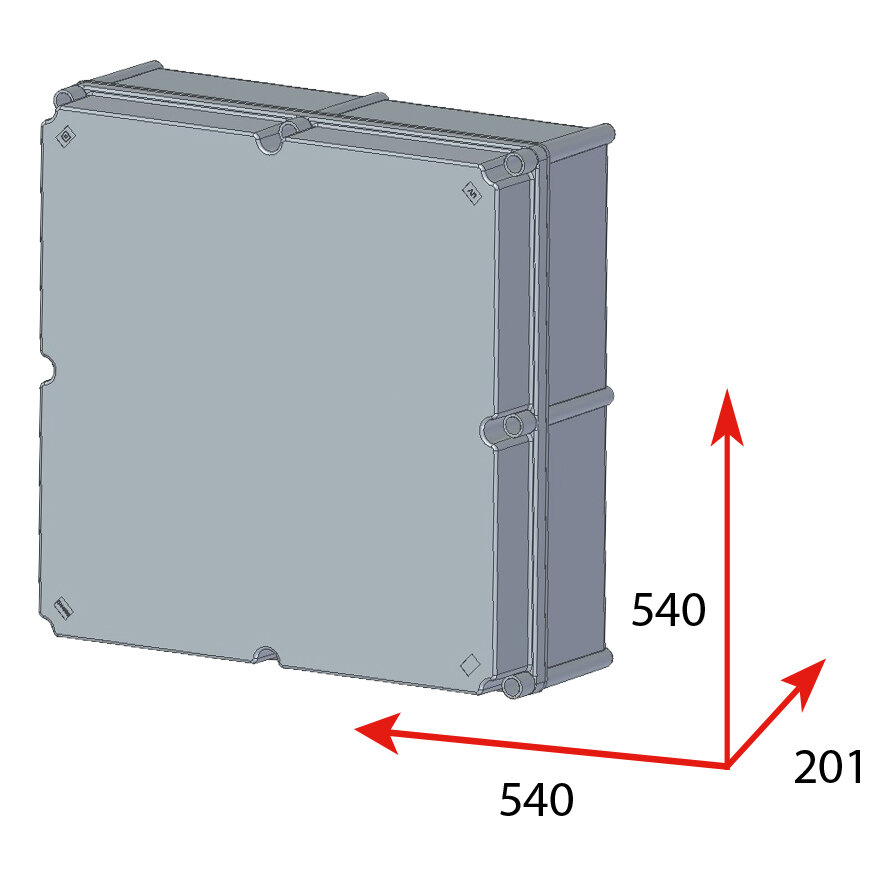

Dimensions
Product height 540 mm
Product width 540 mm
Product length 201 mm
Logistic Data
Customs code 85371098
