FCS

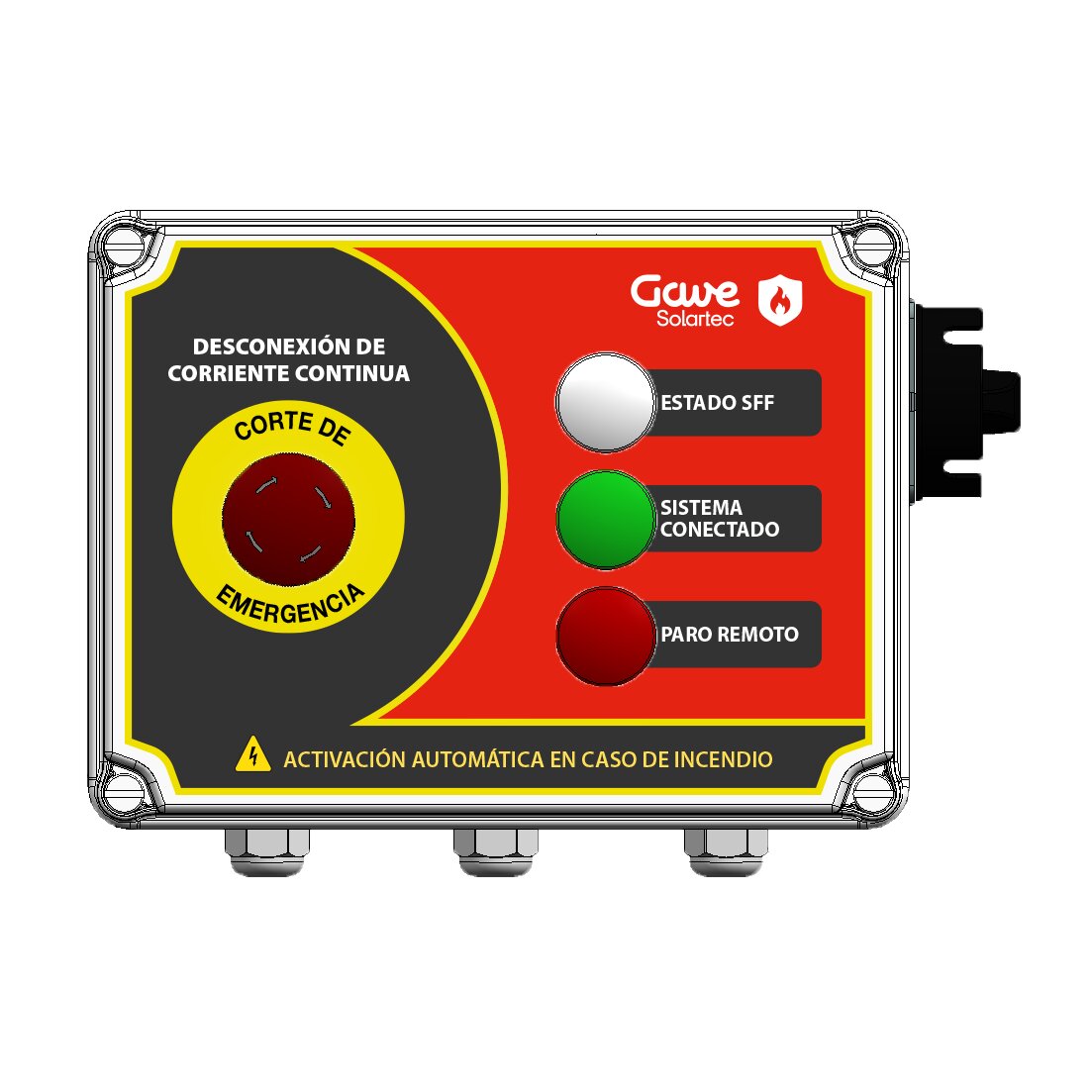

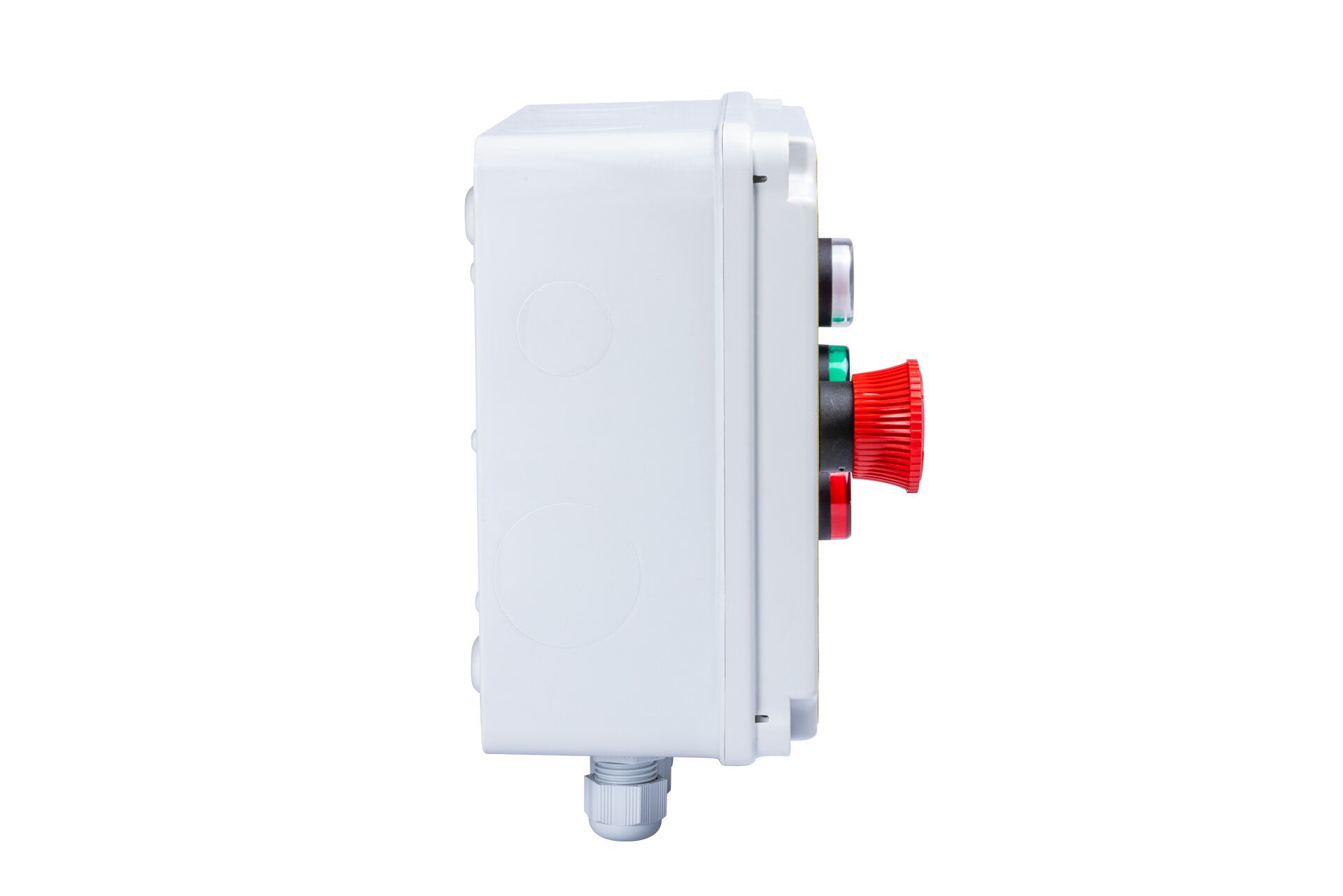

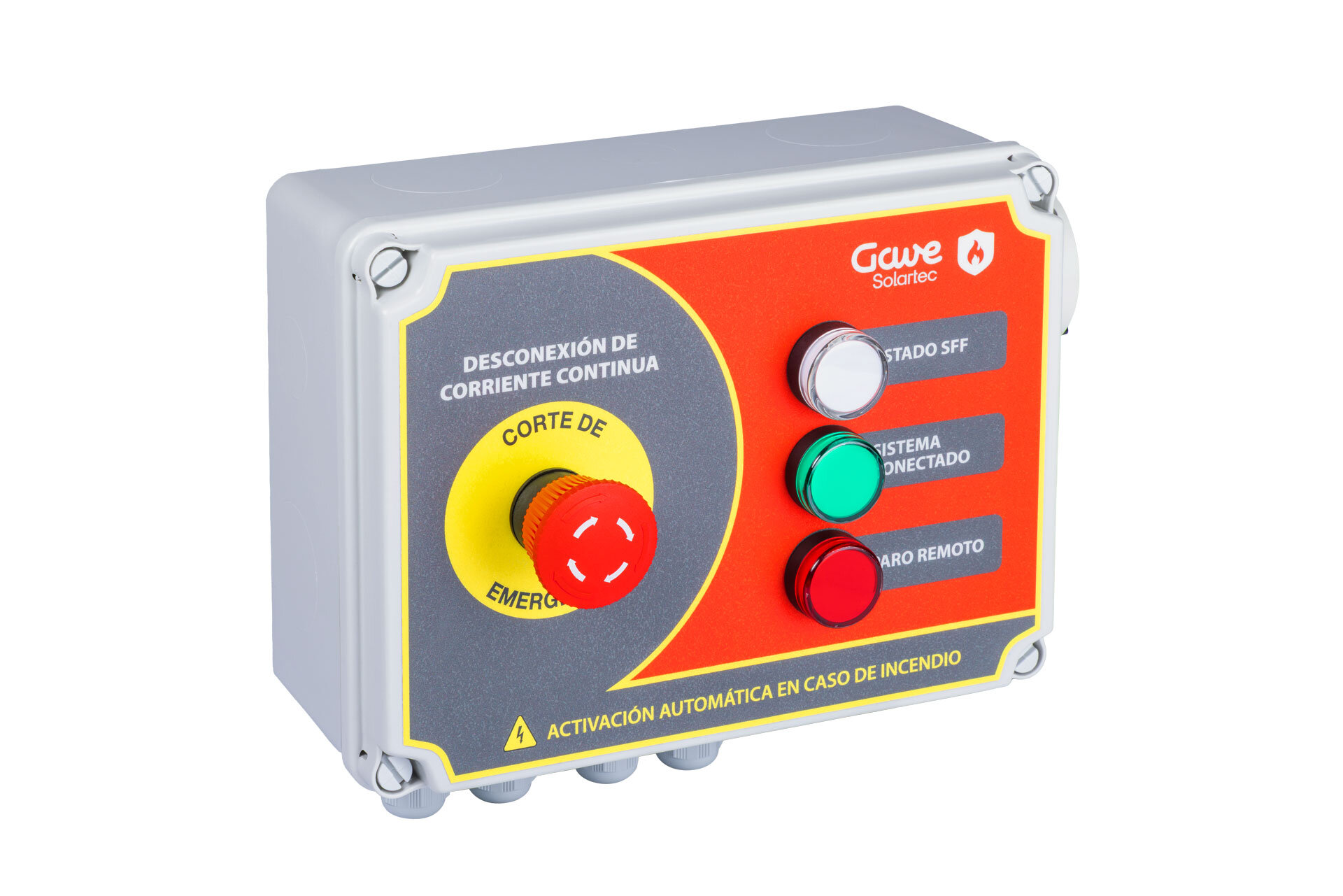

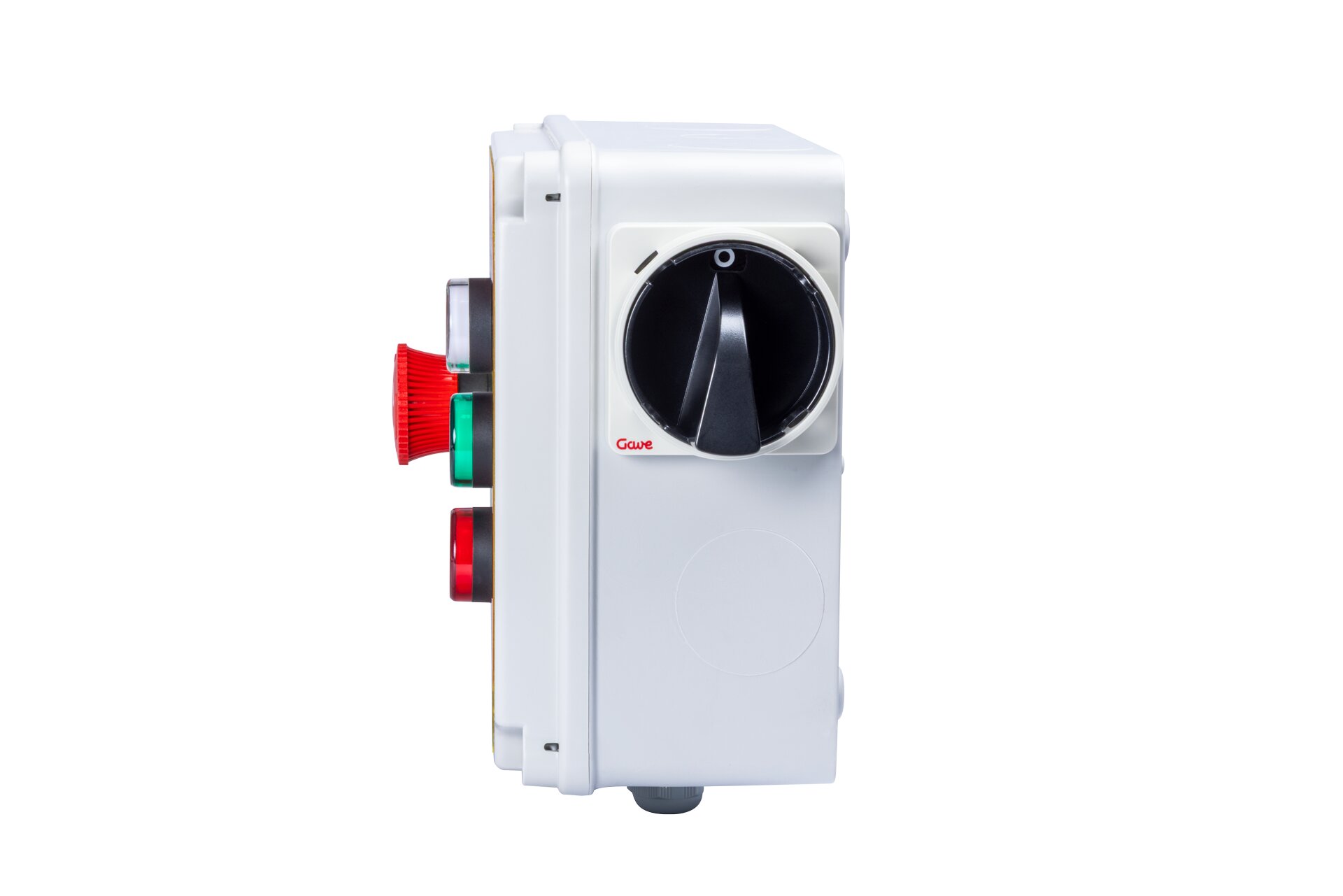

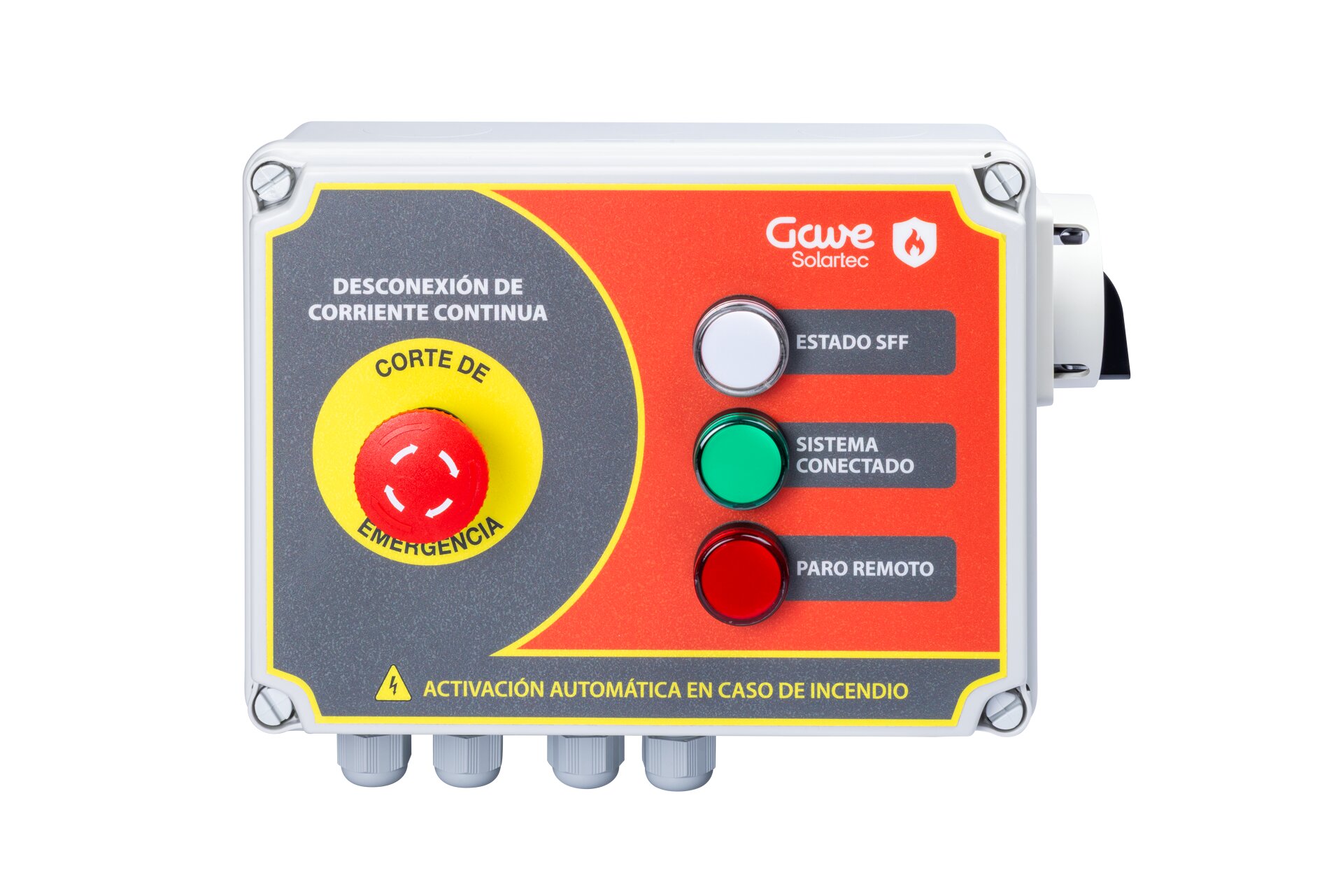

FIREFIGHTER CONTROL SYSTEM

Designed to centralize and manage up to eight SFF units, this box enables monitoring, signaling, and remote control of the connected safety systems.

  • Equipped with green LEDs to indicate the operational status of each SFF and quickly detect any faults visually.

  • When connected to the fire alarm panel, it allows automatic opening of all SFFs in the event of an alarm, while also activating a red optical indicator to signal the emergency state.

  • Allows simultaneous opening of all SFFs from an external point, with a red optical indicator to confirm activation.

  • Durable enclosure suitable for industrial and technical environments, with a protection rating ideal for both field and technical room installations.

  • Clearly labeled terminals and an optimized internal layout ensure fast, secure, and error-free wiring.

Code 029FCS
EAN 8430892359788
Dimensions
Product height 185
Product width 246
Product length 100
SFF Technical Data
AC disconnection circuit 230 V - 30 mA
Protection degree IP65 - IEC 60529
Base colour RAL7035
Standards UNE-EN 60670-22

REQUEST A QUOTATION
