Y-5514301

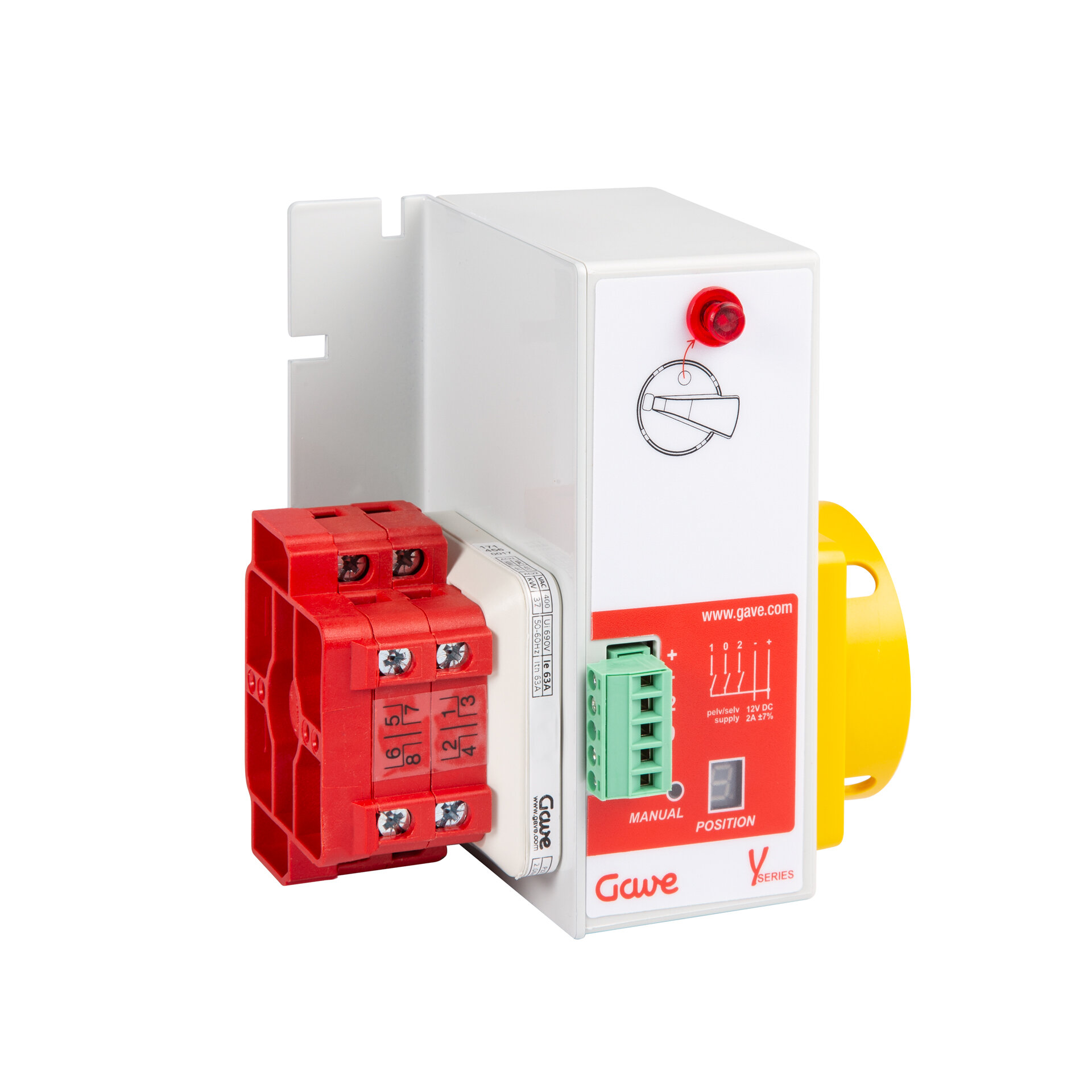

MOTORISED SWITCH 2P 40A. 80-230VAC

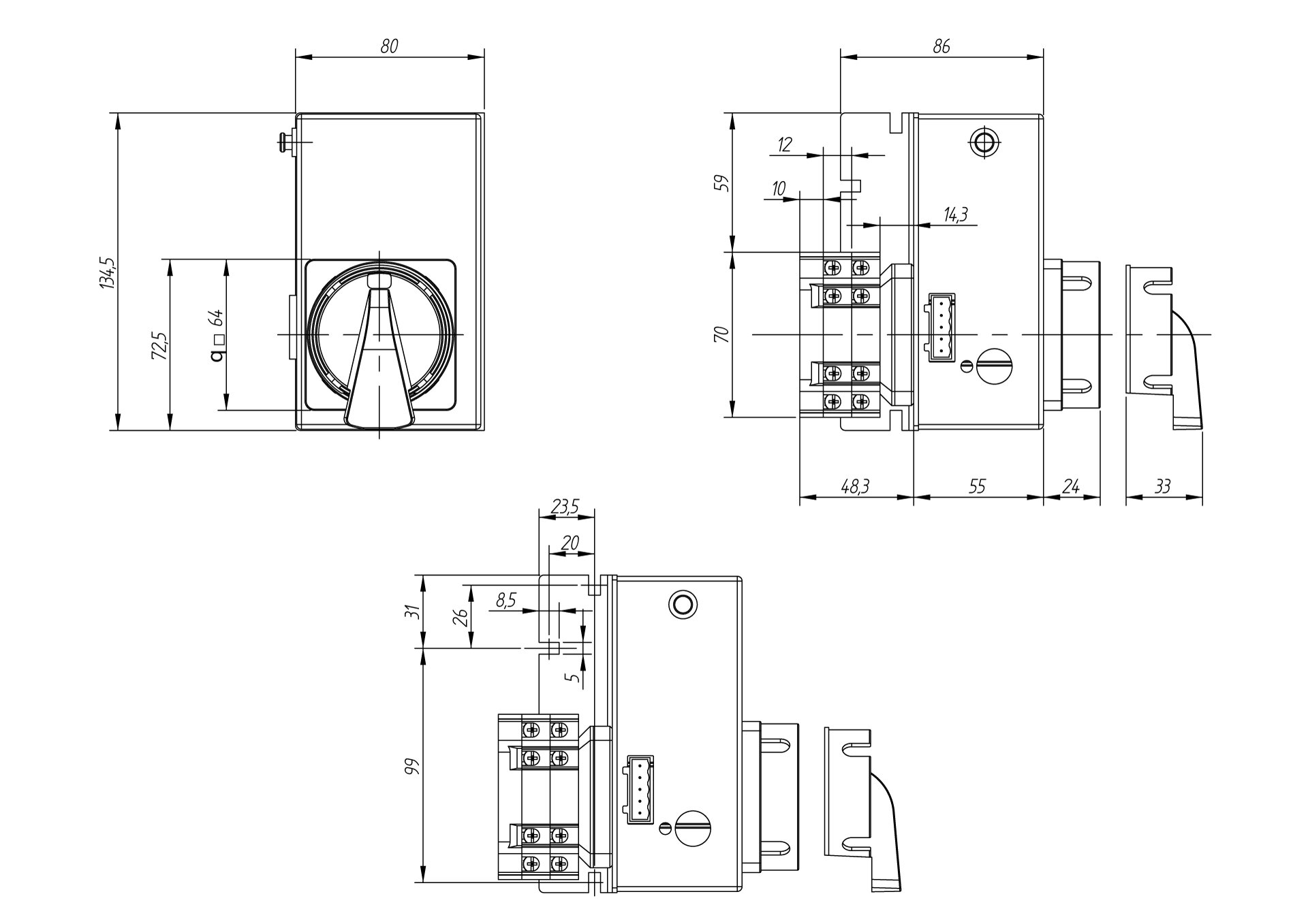

Motorised switch-disconnector 0-1 , 2 poles 40A with motor unit supply 80-230Vac . Size D1 dimensions 135x104x80, includes auxiliary contact 12A. Back plate mounting. Local emergency operation, includes removable padlockable handle. Display for switch position indication and operation counter.Impulse control logic. Protection against supply voltage failure . Cable clamp connection for wires 6-16mm2.

Print to PDF

Code 007Y-5514301
EAN 8430892196222
Logistic Data
Customs code 85365080
Etim Code EC000216
Technical data
Rated voltage / frequency 690 V / 50 Hz
Operational rating (Ie) 40 A
Air thermal rating (Ith) 40 A
Wire cross section

6-16 mm2
Tightening torque 2 Nm
Connection screws M5
Terminal Terminal
Peak consumption 2 A
Nominal consumption 40 mA
Weight 1200 gr
Supply voltage (V DC) 12 V +15%
Standard IEC 60947-3
Supply 80-230V AC
