713

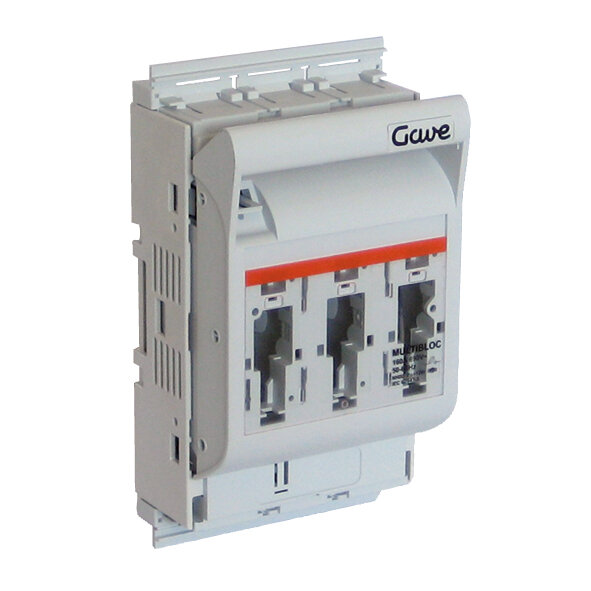

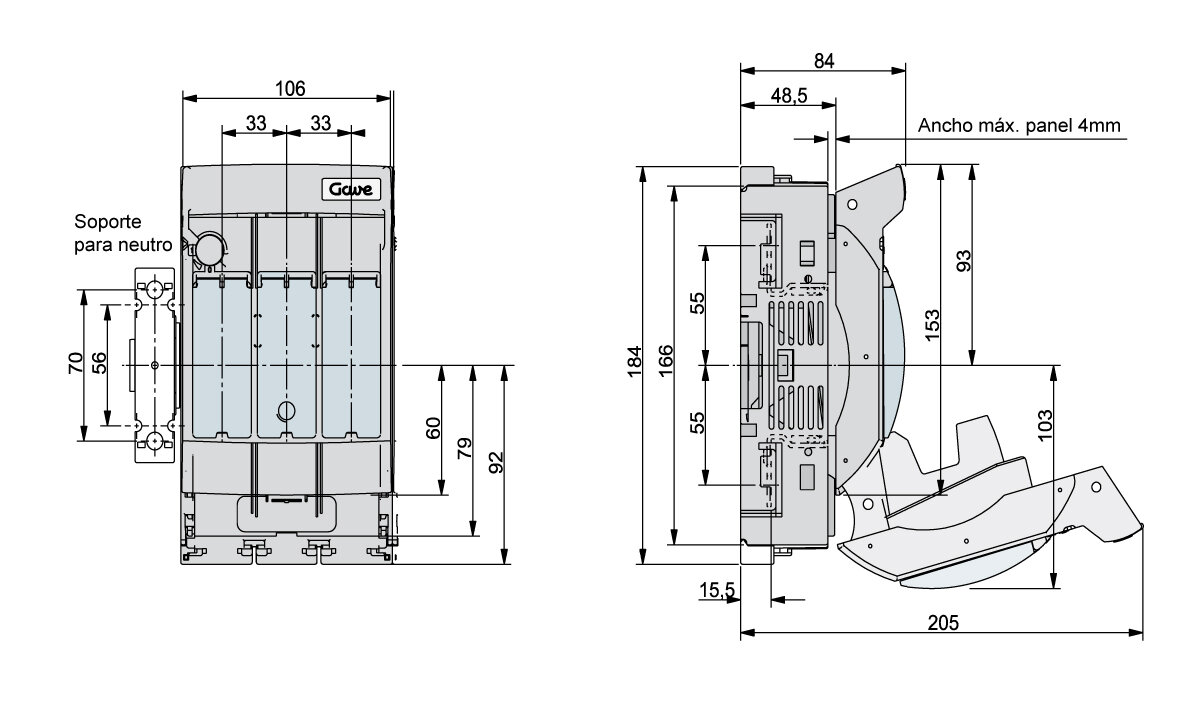

FUSE SWITCH 3P NH00 160A
| Code | 018713 |
| EAN | 8430892200639 |
Technical data
| Standard | IEC 60947‐3 IEC 60269‐2 |
| Conventional free air thermal current with fuse links (Ith) | 160 A |
| Max. allowed power dissipation of nh-fuse links (Pn) | 12 W |
| Conventional free air thermal current with solid links (Ith) | 200 A |
| Max. allowed power dissipation of solid links (Pn) | 1.2 W |
| AC 21 B (690 V) | 125 A |
| AC 23 B (400 V) | 160 A |
| AC 22 B (500 V) | 160 A |
| DC 22 B (220 V) | 160 A |
| Rated operational voltage (Ue) | 690 V |
| Insulation voltage (Ui) | 1000 V |
| Impulse voltage (Uimp) | 8 kV |
| Frequency (Hz) | 50-60 |
| Degree of protection | IP20 |
| Pollution degree | 3 |
| Rated short-circuit making capacity with solid links (Icm) | 6.2 kAsw |
| Rated short-circuit making capacity with fuse links | 80 kA Ie=160 A (400 V AC) 80 kA Ie=160 A (500 V AC) 50 kA Ie=125 A (690 V AC) |
| Rated short-time withstand current with solid links (Icw) | 4 kA / 1 s |
| Power dissipation ith without NH-Fuse links | 2.3 W |
| Power dissipation ith without solid links | 3.3 W |
| Terminal | M8 |
