MV55393-0

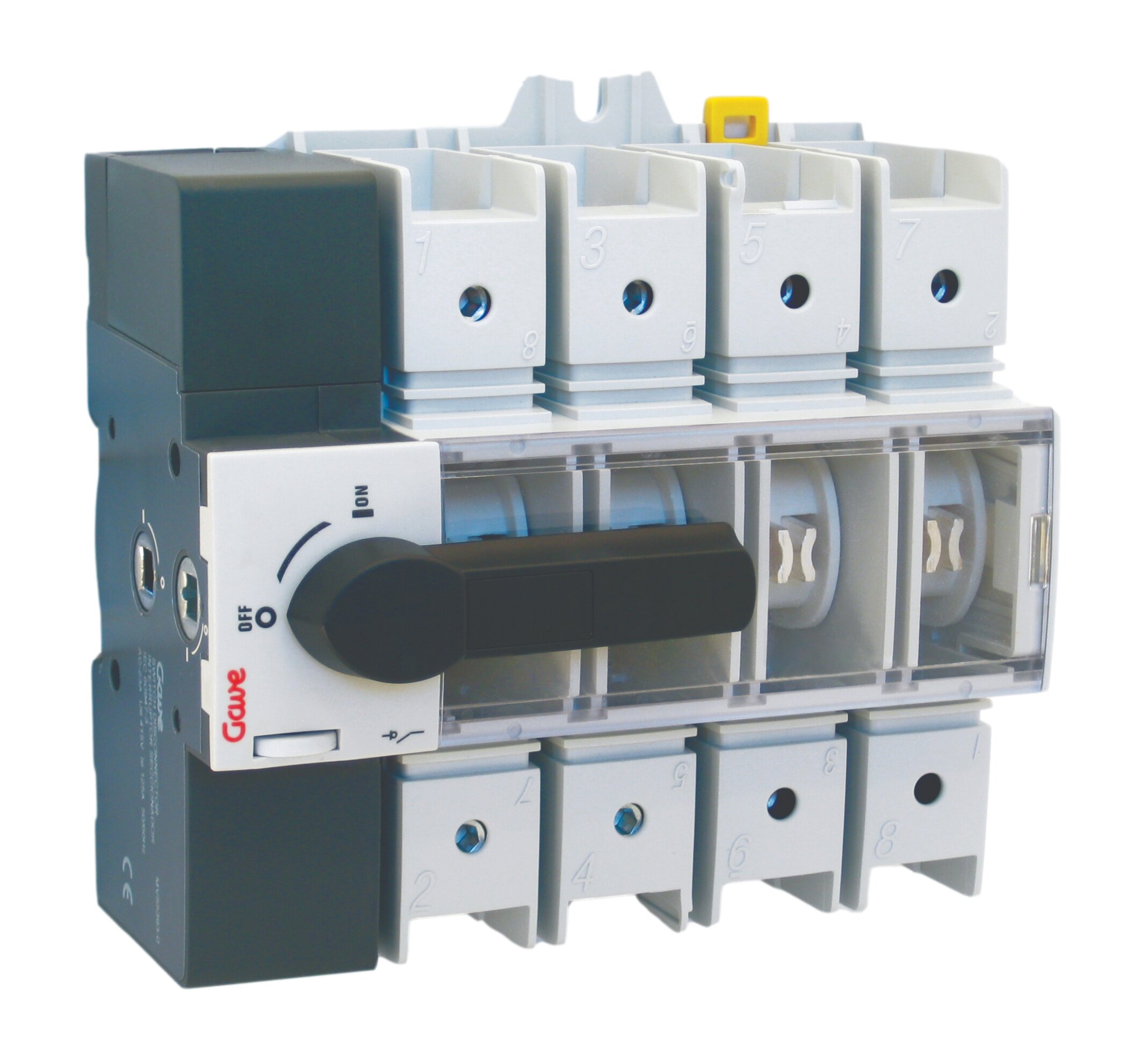

SWITCH-DISCONNECTOR 4P M5 D.3 125A
Modular switch disconnector 4P 125A MV series. Basic unit (without handle) DIN rail fixing or base mounting. Compatible with modular boxes. Visible contacts and fully apparent breaking indication. Dimensions 124x135x64. Connection by cage terminal 10-70 mm2. Multiple accessory possibilities.

Print to PDF

Code 024MV55393-0
EAN 8430892197403
Technical data
Air thermal rating (Ith) 125 A
Impulse voltage (Uimp) 8 kV
Tightening torque 4 Nm
Cable section (min-max) 10 - 70
Conditional shortcircuit current (Icc)

12 kA
Rated operational voltage (Ue V~) 690
Max. protection fuse (gG) In 125 A
Rated short-time withstand current 0,3s (Icw) 7 A
Operational rating AC21

160 A (415 V)

160 A (500 V)

160 A (690 V)
Operational rating AC22

125 A (415 V)

125 A (500 V)

80 A -AC 22 A- (690 V)

100 A -AC 22 B- (690 V)
Operational rating AC23

125 A -AC 23 A- (415 V)

160 A -AC 23 B- (415 V)

100 A (500 V)

80 A (690 V)


Standard IEC 60947-3
