MV55293-0

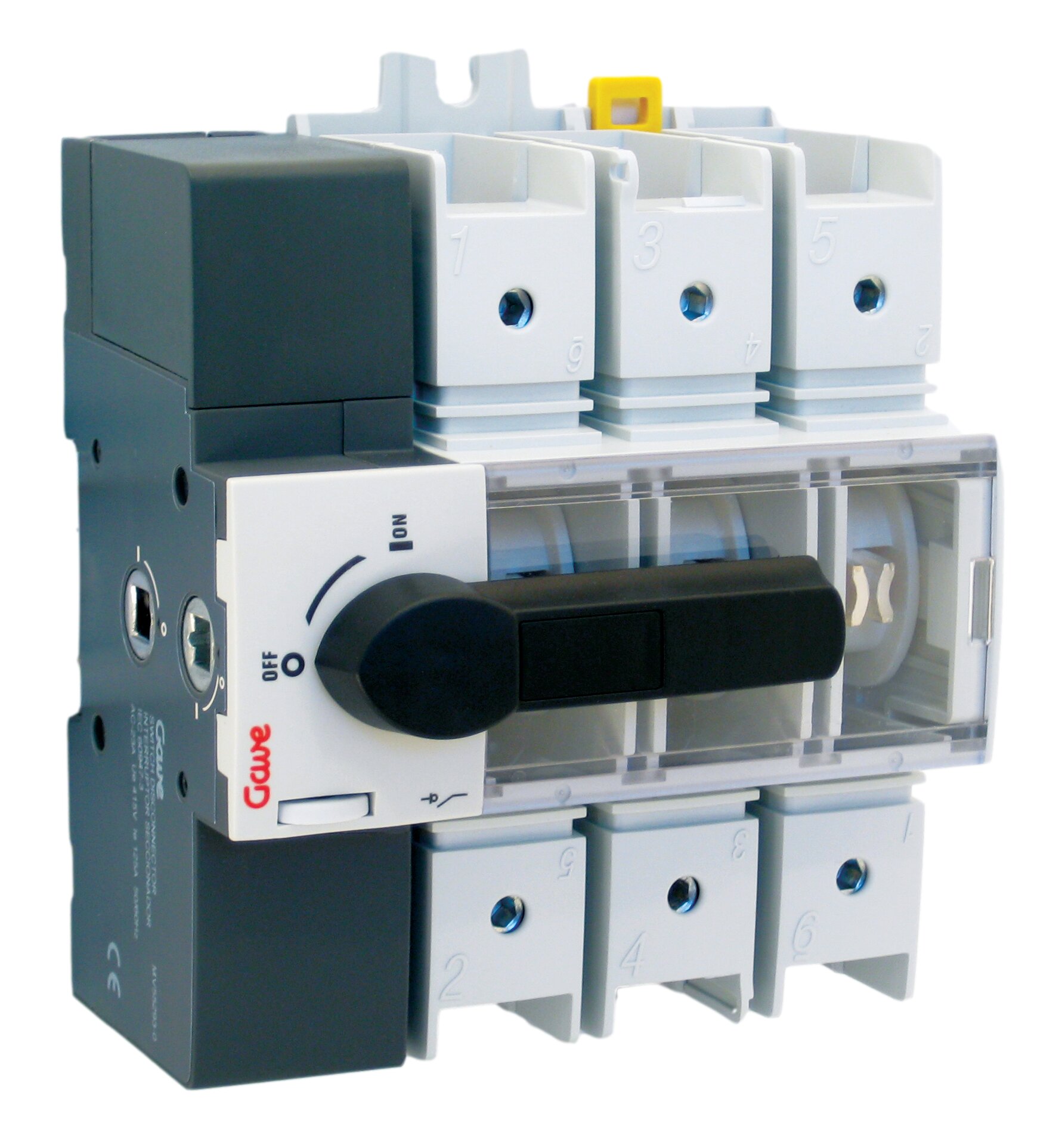

SWITCH-DISCONNECTOR 3P M5 D.3 125A
| Code | 024MV55293-0 |
| EAN | 8430892197397 |
Technical data
| Air thermal rating (Ith) | 125 A |
| Impulse voltage (Uimp) | 8 kV |
| Tightening torque | 4 Nm |
| Cable section (min-max) | 10 - 70 |
| Conditional shortcircuit current (Icc) | 12 kA |
| Rated operational voltage (Ue V~) | 690 |
| Max. protection fuse (gG) In | 125 A |
| Rated short-time withstand current 0,3s (Icw) | 7 A |
| Operational rating AC21 | 160 A (415 V) 160 A (500 V) 160 A (690 V) |
| Operational rating AC22 | 125 A (415 V) 125 A (500 V) 80 A -AC 22 A- (690 V) 100 A -AC 22 B- (690 V) |
| Operational rating AC23 | 125 A -AC 23 A- (415 V) 160 A -AC 23 B- (415 V) 100 A (500 V) 80 A (690 V)
|
| Standard | IEC 60947-3 |
