56AC3250

CHANGEOVER SWITCH 3P x 2500A

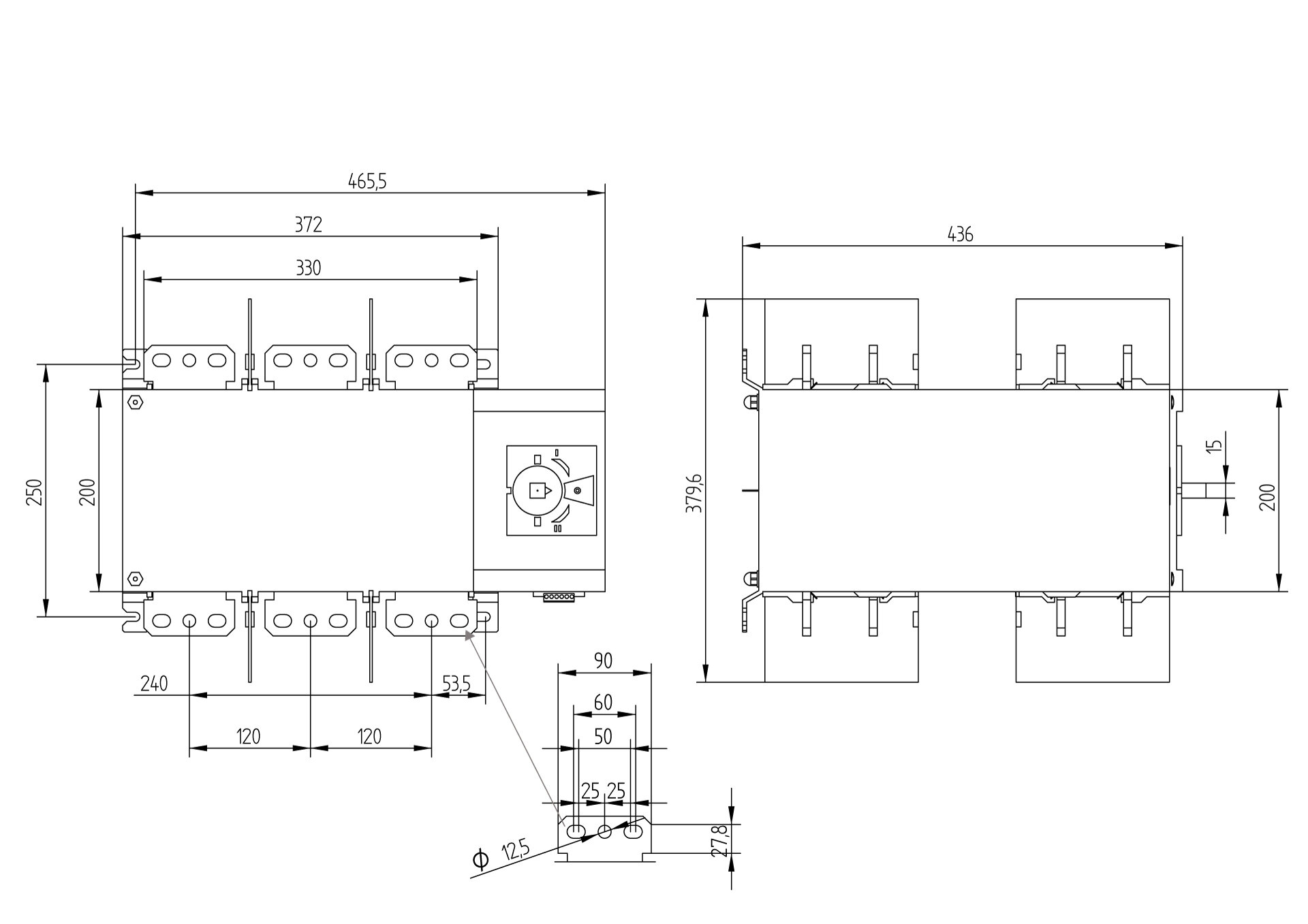

Manual changeover switch 56AC series 3 poles 2500A. Size B8 with dimensions 258x478x425. Operates with AC-23A 415V/690V loads and DC-21 440V loads. The high performance of the materials used provides high thermal and dynamic endurance. Supplied without handle can be used with multiple types of actuators and multiple accessories such as prolongued shafts, connection bridges, separation barriers or auxiliary contacts.

Print to PDF

Code 01756AC3250
EAN 8430892293358
Technical data
Nr. Poles 3
Air thermal rating (Ith) 2500 A
Impulse voltage (Uimp) 12 kV
Minimum Cu busbar cross-section

2 x 100 x 10
Maximum Cu busbar width

100
Standard IEC 60947-3
