55PV2010

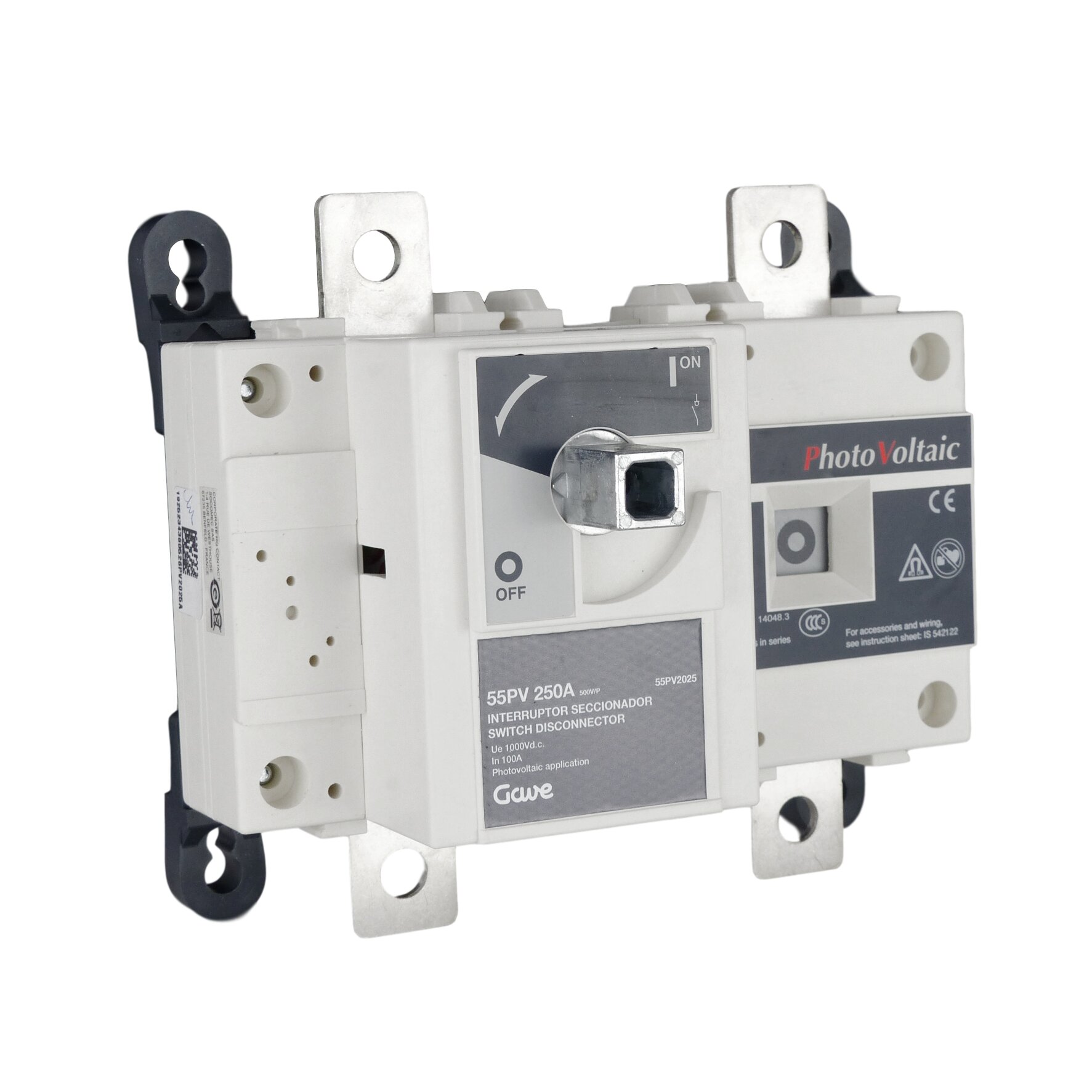

ON-OFF LOAD BREAK SWITCH PV 1000V - 100A
| Code | 01755PV2010 |
| EAN | 8430892293440 |
Technical data
| Operational rating (Ie) | 100 A |
| Air thermal rating (Ith) | 100 A |
| Impulse voltage (Uimp) | 12 kV |
| Maximum Cu cable cross-section | 35 mm2 |
| Maximum Cu busbar width | 32 mm2 |
| Tightening torque | 10 Nm |
| Rated short-time withstand current 1s (Icw) | 5 kA |
| Rated short-time withstand current 0,3s (Icw) | 10 kA |
