LDA63B100
LD CHANGEOVER SWITCH 4P 200A + CA
| Code | 009LDA63B100 |
| EAN | 8430892215619 |

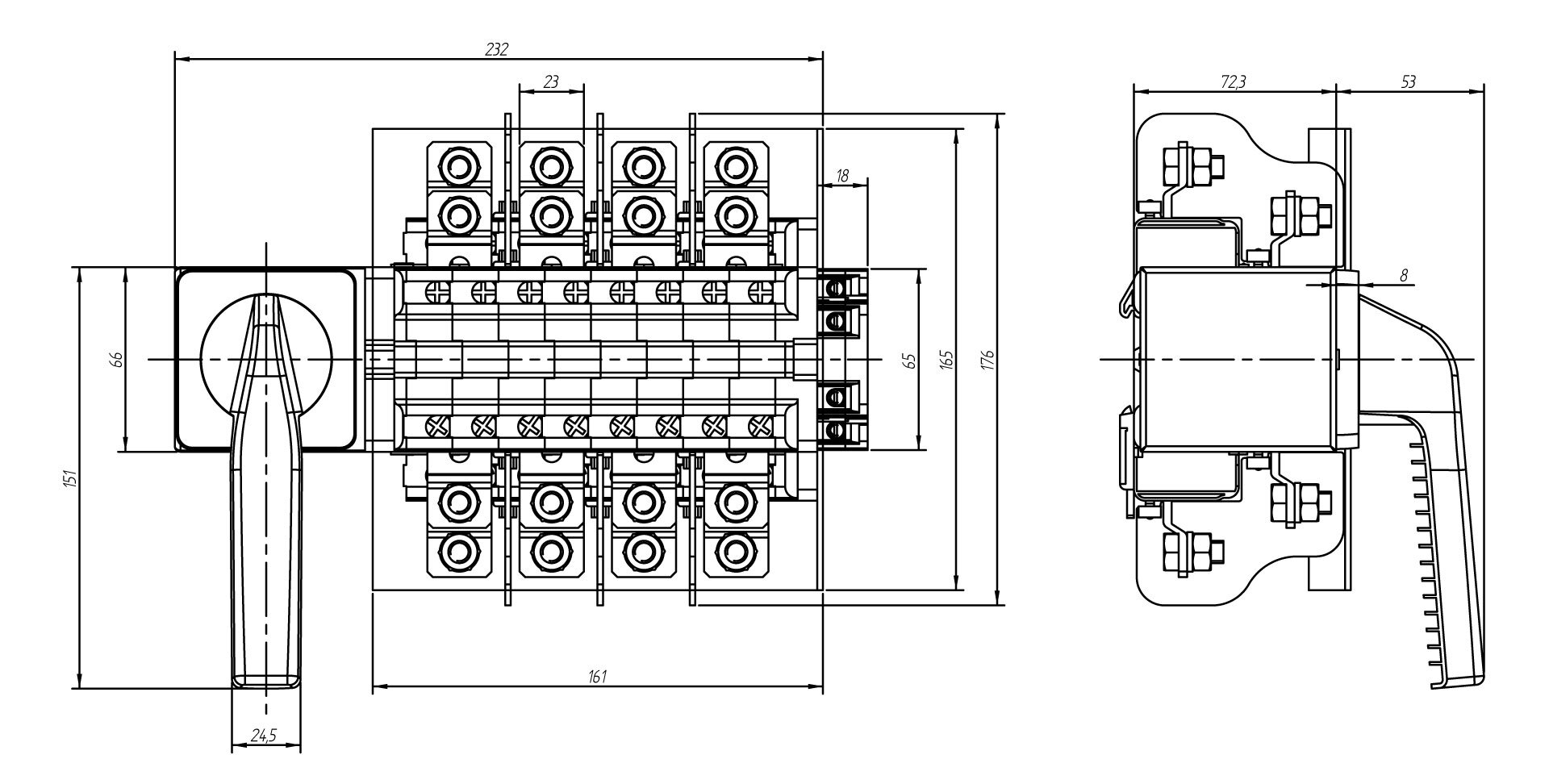

Dimensions
Logistic Data
| Customs code | 85365080 |
| Etim Code | EC000216 |
| Packing units | 1 |
Technical data
| Nr. Poles | 4 |
| Auxiliary | 1NO |
| Operational rating (Ie) | 200 A |
| Air thermal rating (Ith) | 200 A |
| Wire section flexible | 95 mm2 |
| Connection screws | M8 |
| Terminal |  |
| Max. fuse protection (gG/aM) | 200 A (415 V) 200 A (500 V) |
| Conditional shortcircuit current (Icc) | 8 kA (415 V) 8 kA (500 V) |
| Insulating voltage (V~) | 690 |
| Insulating voltage (V...) | 600 |
| Dummy AC-21A | 55 kW (3x230 V) 110 kW (3x415 V) 132 kW (3x500 V) |
| Mixed load AC-22A | 55 kW (3x230 V) 110 kW (3x415 V) 110 kW (3x 500 V) |
| Motor load AC-23A | 55 kW (3x230 V) 90 kW (3x415 V) |
| Standard | IEC 60947-3 |
