LD563C100

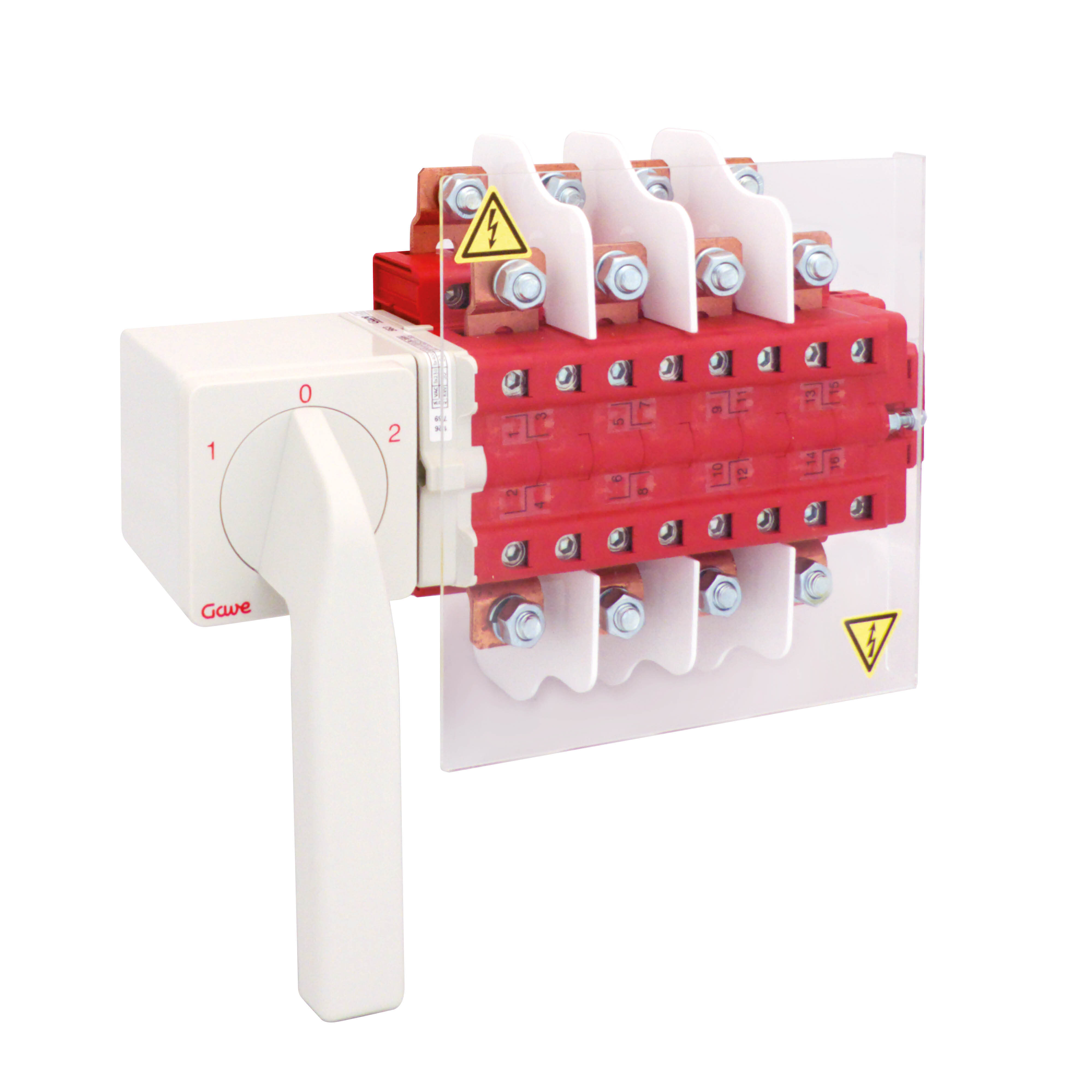

LD CHANGEOVER SWITCH 4P 250A
| Code | 009LD563C100 |
| EAN | 8430892215268 |
Logistic Data
| Customs code | 85365080 |
| Etim Code | EC000216 |
| Packing units | 1 |
| Package height (mm) | 150 |
| Package width (mm) | 195 |
| Package length (mm) | 280 |
Technical data
| Nr. Poles | 4 |
| Auxiliary | - |
| Operational rating (Ie) | 250 A |
| Air thermal rating (Ith) | 250 A |
| Wire section flexible | 120 mm2 |
| Connection screws | M8 |
| Terminal |  |
| Max. fuse protection (gG/aM) | 250 A (415 V) 250 A (500 V) |
| Conditional shortcircuit current (Icc) | 8 kA (415 V) 8 kA (500 V) |
| Insulating voltage (V~) | 690 |
| Insulating voltage (V...) | 600 |
| Dummy AC-21A | 75 kW (3x230 V) 132 kW (3x415 V) 160 kW (3x500 V) |
| Mixed load AC-22A | 75 kW (3x230 V) 132 kW (3x415 V) 132 kW (3x500 V) |
| Motor load AC-23A | 75 kW (3x230 V) 110 kW (3x415 V) |
| Standard | IEC 60947-3 |
