LCA439107
LD CHANGEOVER SWITCH I - I+II - II 4P 125A +AC ENCLOSED
| Code | 009LCA439107 |
| EAN | 8430892354028 |

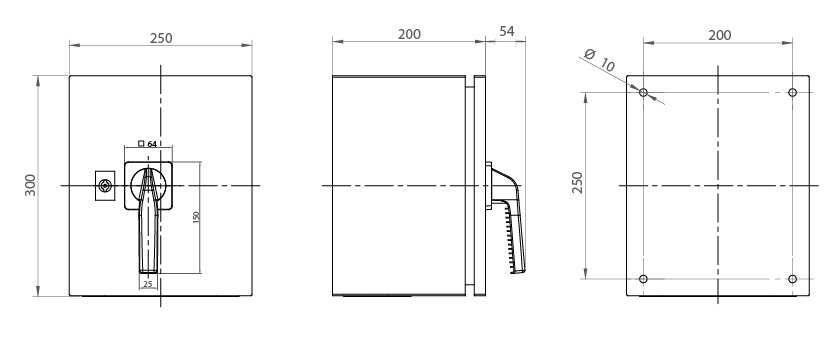

Dimensions
Logistic Data
| Customs code | 85365080 |
| Etim Code | EC000216 |
| Packing units | 1 |
Technical data
| Nr. Poles | 4 |
| Auxiliary | 1NO |
| Operational rating (Ie) | 125 A |
| Air thermal rating (Ith) | 125 A |
| Cable cross-section (AWG) | 16 - 1 |
| Wire section flexible | 16 - 50 mm2 |
| Tightening torque | 3,5 Nm |
| Connection screws | M8 |
| Terminal |  |
| Max. fuse protection (gG/aM) | 125/100 A (415 V) 125/100 A (500 V) |
| Conditional shortcircuit current (Icc) | 8 kA (415 V) 8 kA (500 V) |
| Insulating voltage (V~) | 690 |
| Insulating voltage (V...) | 600 |
| Dummy AC-21A | 37 kW (3x230 V) 75 kW (3x415 V) 90 kW (3x500 V) |
| Mixed load AC-22A | 37 kW (3x230 V) 55 kW (3x415 V) 75 kW (3x500 V) |
| Motor load AC-23A | 30 kW (3x230 V) 55 kW (3x415 V) 55 kW (3x500 V) |
| Standard | IEC 60947-3 |
