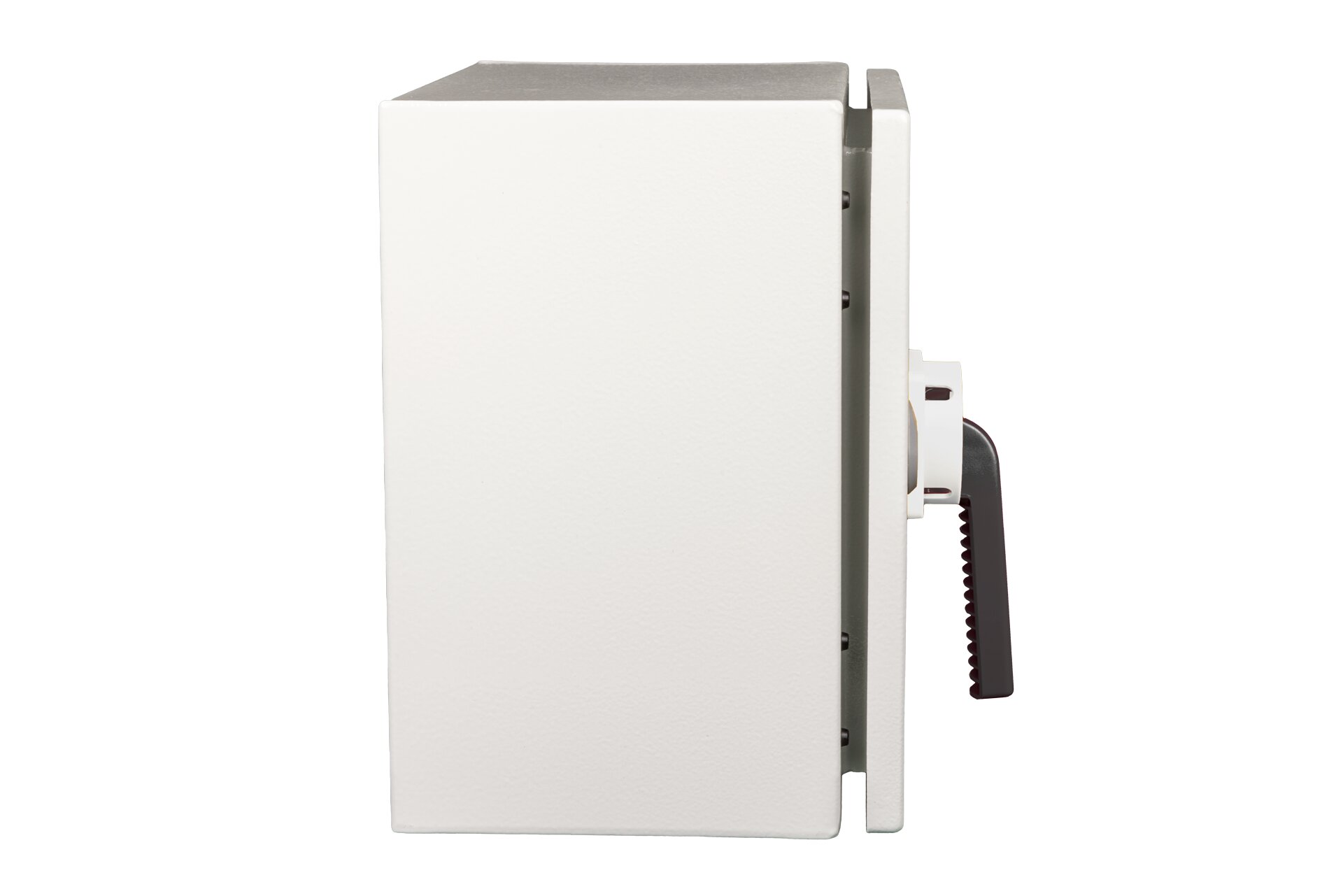

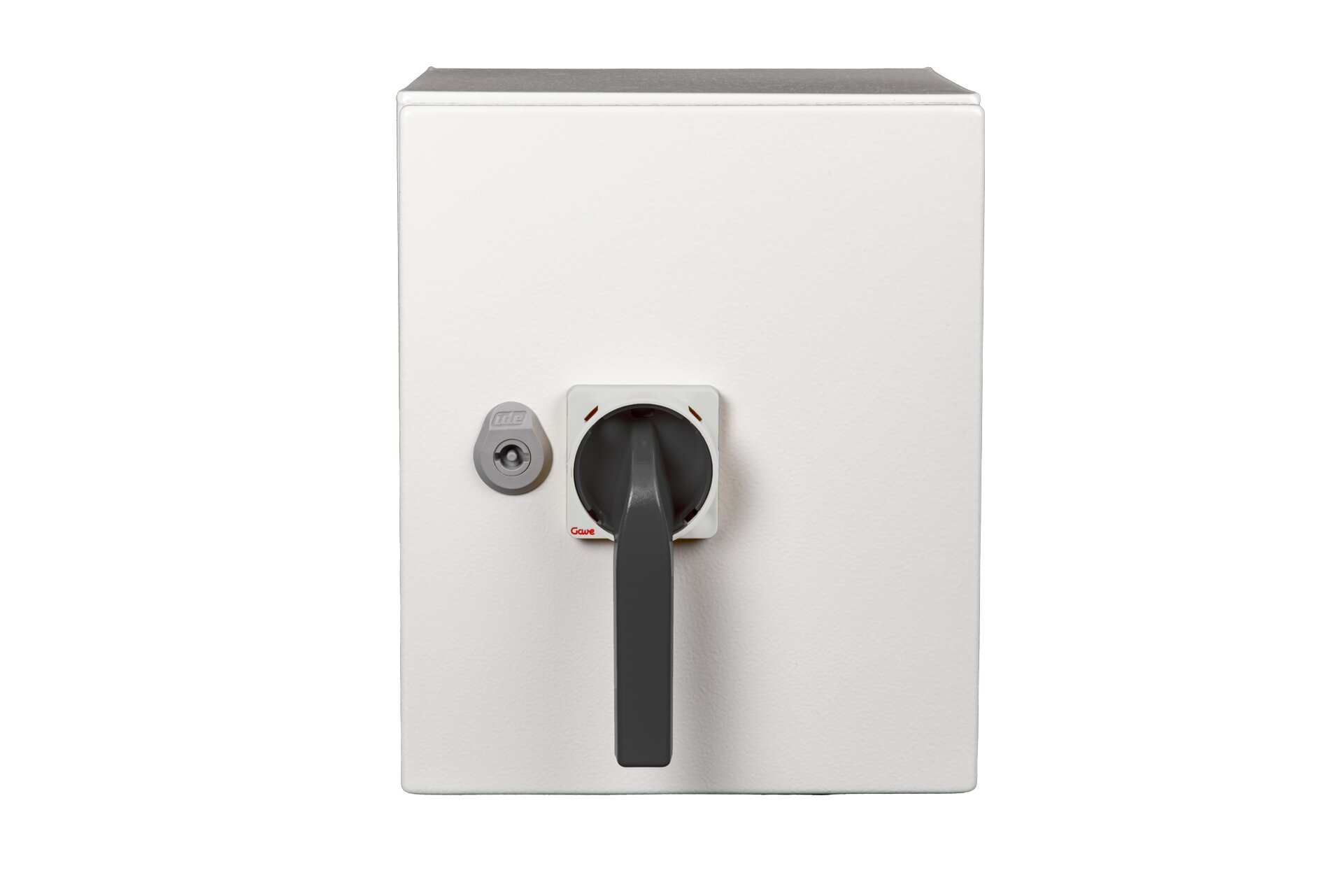

ON-OFF SWITCH DISCONNECTOR 3P.100A. ENCLOSED IP65 PADLOCKABLE BLACK/GREY
3-pole 100A safety switch in IP65 enclosure. E2 sheet steel enclosure suitable for indoor or outdoor use in RAL7035 grey color, dimensions 250x300x200. High impact resistance IK10. Base mounted switch with extended shaft and interlock in closed position. Black / grey padlockable handle (up to 4 padlocks of 8mm diameter). Earthing terminal. Connection with cage terminals for 16-50 mm² cable.

Print to PDF

Code 009AC5527107
EAN 8430892155915
Dimensions
Logistic Data
Customs code 85365080
Etim Code EC000216
Packing units 1
Product gross weight (kg) 5.7
Package height (mm) 290
Package width (mm) 301
Package length (mm) 251
Technical data
Nr. Poles 3
Operational rating (Ie) 100
Air thermal rating (Ith) 100 A
Cable cross-section (AWG) 16 - 1
Wire section flexible

16 - 50 mm2
Tightening torque 3,5 Nm
Connection screws M8
Terminal Terminal
Max. fuse protection (gG/aM)

100/100 A (415 V)

100/100 A (500 V)
Conditional shortcircuit current (Icc)

8 kA (415 V)

8 kA (500 V)
Insulating voltage (V~) 690
Insulating voltage (V...) 600
Dummy AC-21A

30 kW (3x230 V)

55 kW (3x415 V)

75 kW (3x500 V)
Mixed load AC-22A

30 kW (3x230 V)

55 kW (3x415 V)

55 kW (3x500 V)
Motor load AC-23A

22 kW (3x230 V)

37 kW (3x415 V)

45 kW (3x500 V)
UL Electric characteristics

10 hp 1-fase (110-120 V)

15 hp 1-fase (220-240 V)

25 hp 3-fase (220-240 V)

30 hp 3-fase (380-415 V)

40 hp 3-fase (440-480 V)

50 hp 3-fase (550-600 V)
Standard

IEC 60947-3

UL 508
Enclosure type METAL
