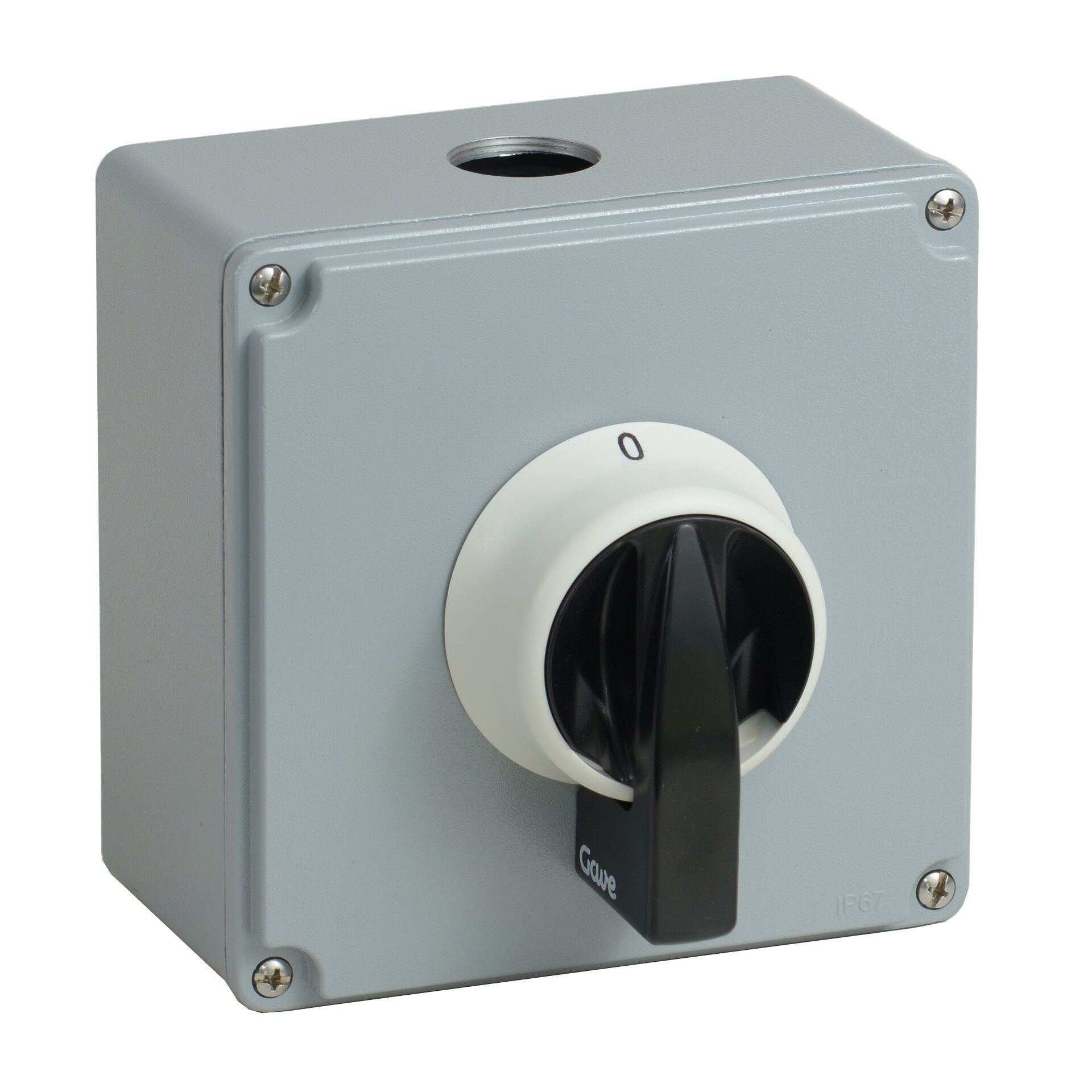

IP69K 3-pole 40A safety switch in aluminium enclosure. Enclosure 3AL in aluminium painted in grey color RAL7032 with surface coating to protect against corrosion, dimensions 160x160x90.Threaded M32 holes, one on top and one on bottom. Fixing to the surface by 4 points. Black/grey padlockable handle (up to 4 padlocks of 8mm diammeter). Connection with cage terminals for 6-16mm² cable.
| Code | 009AC5524108H |
| Product height | 160 |
| Product width | 160 |
| Product length | 90 |
| Customs code | 85365080 |
| Nr. Poles | 3 |
| Operational rating (Ie) | 40 A |
| Air thermal rating (Ith) | 40 A |
| Cable cross-section (AWG) | 6 |
| Wire section rigid | 6 - 25 mm2 |
| Wire section flexible | 6 - 16 mm2 |
| Tightening torque | 2 Nm |
| Connection screws | M5 |
| Terminal |  |
| Max. fuse protection (gG/aM) | 40/32 A (415 V) 40/32 A (500 V) |
| Conditional shortcircuit current (Icc) | 6 kA (415 V) 6 kA (500 V) |
| Insulating voltage (V~) | 690 |
| Insulating voltage (V...) | 600 |
| Dummy AC-21A | 15 kW (3x230 V) 22 kW (3x415 V) 30 kW (3x500 V) |
| Mixed load AC-22A | 11 kW (3x230 V) 22 kW (3x415 V) 22 kW (3x500 V) |
| Motor load AC-23A | 11 kW (3x230 V) 18.5 kW (3x415 V) 22 kW (3x500 V) 30 kW (3x690 V) |
| UL Electric characteristics | 2 hp 1-fase (110-120 V) 5 hp 1-fase (220-240 V) 7,5 hp 3-fase (220-240 V) 10 hp 3-fase (380-415 V) 15 hp 3-fase (440-480 V) 20 hp 3-fase (550-600 V) |
| Standard | IEC 60947-3 UL 508 |
| Enclosure type | ALUMINIUM |
