AB5522009H

SWITCH DISCONNECTOR 3P.25A. IP69K PADLOCKABLE HANDLE IN INOX ENCLOSURE

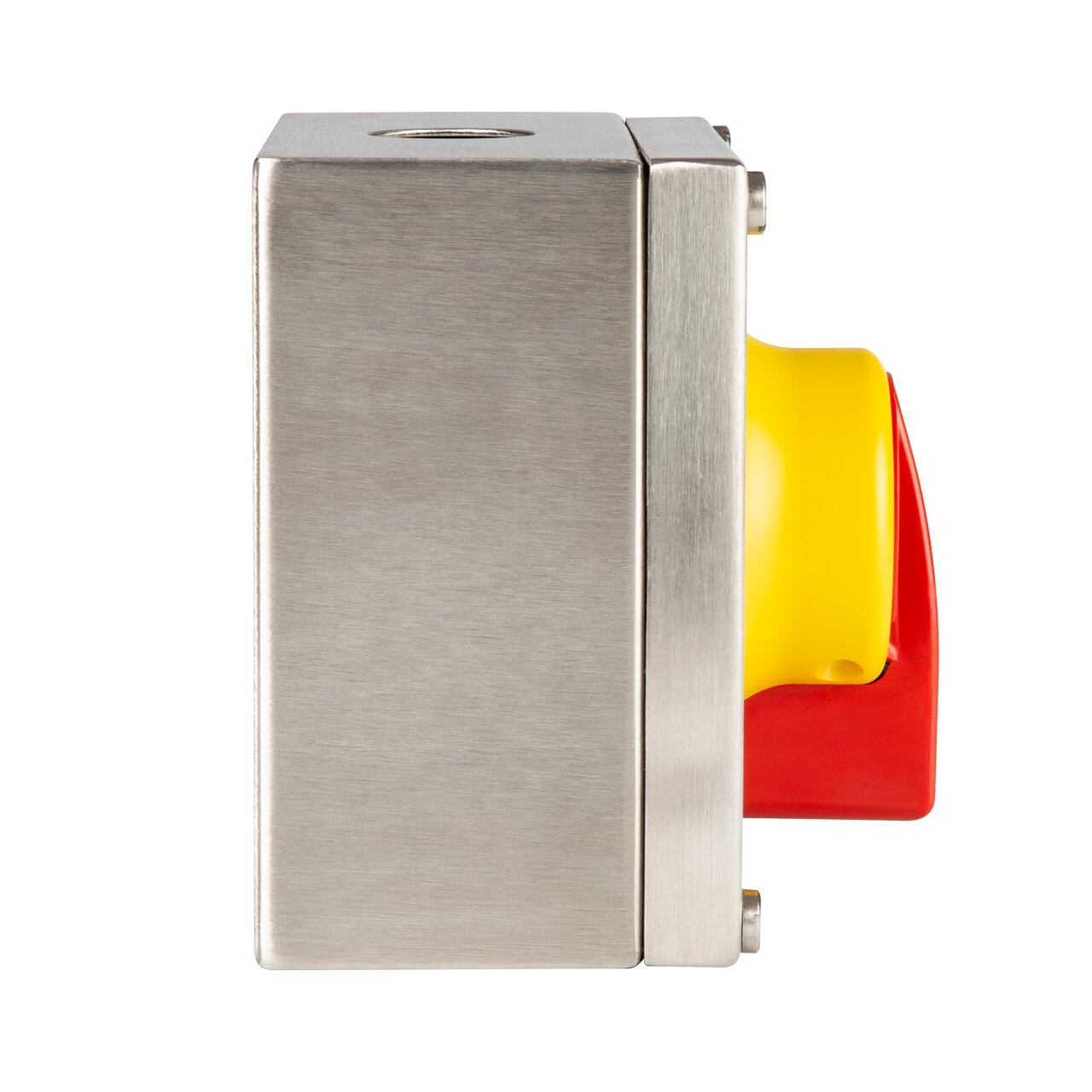

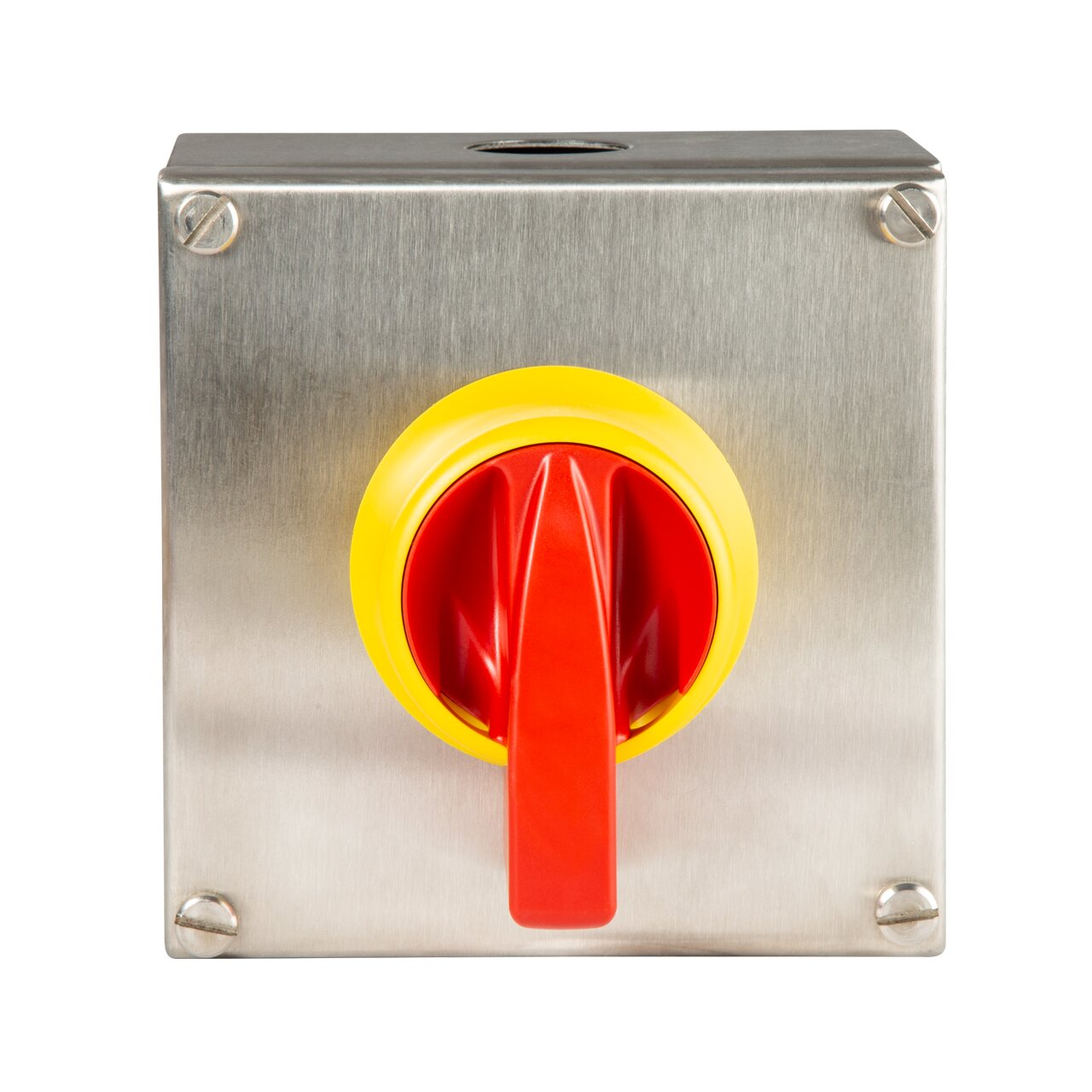

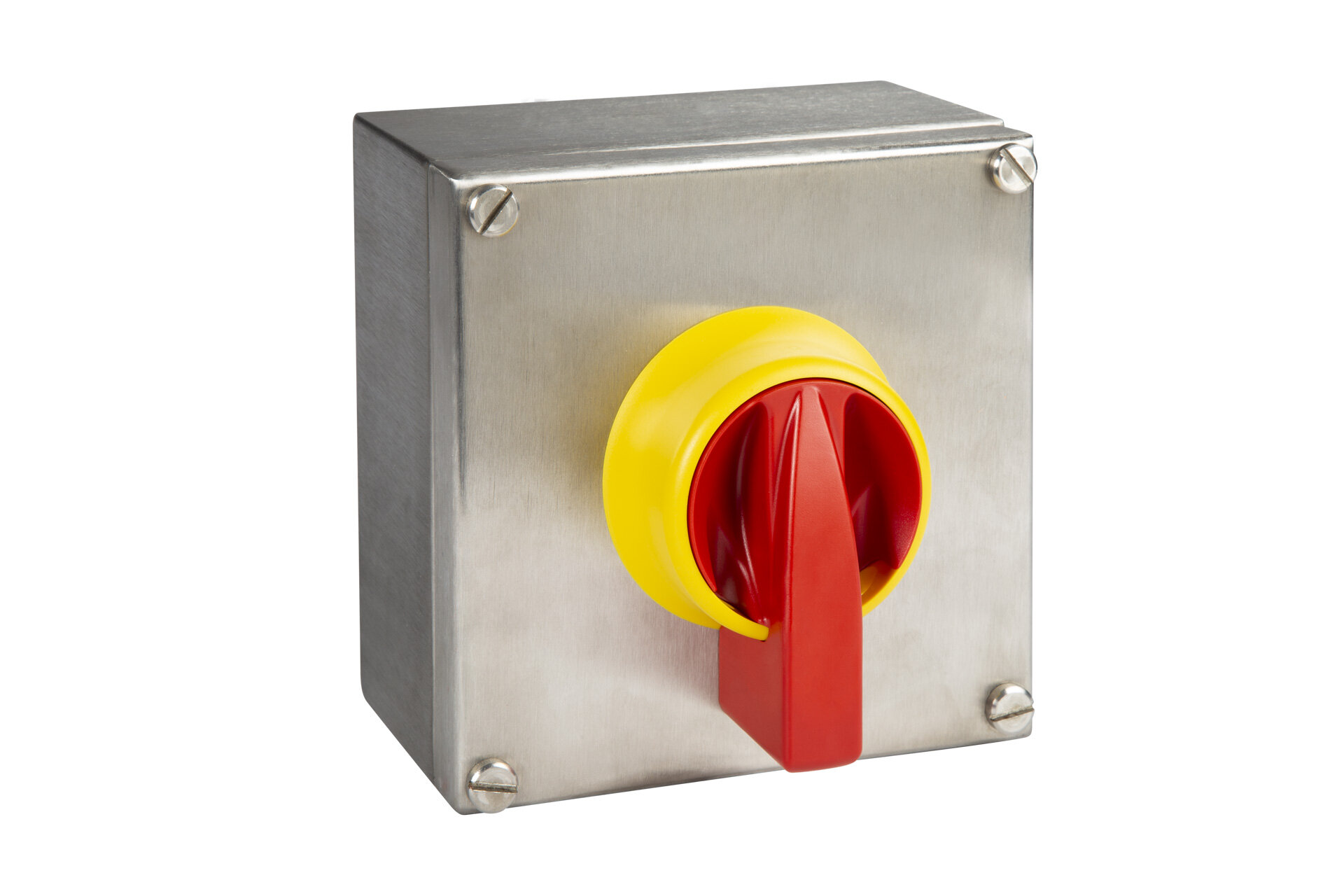

IP69K 3-pole 25A safety switch in IP65 stainless steel enclosure. 1IN enclosure in 316L stainless steel with electropolished finish suitable for highly corrosive environments or applications with hygienic requirements, dimensions 110x110x80. Upper inlet and lower outlet M25 holes. Fixing to the surface by 4 points. Red / yellow padlockable handle (up to 2 padlocks of 8mm diameter). Connection with cage terminals for 2.5-6 mm² cable. IP66 cable glands and plugs as accesories.
Code 009AB5522009H
EAN 8430892315999

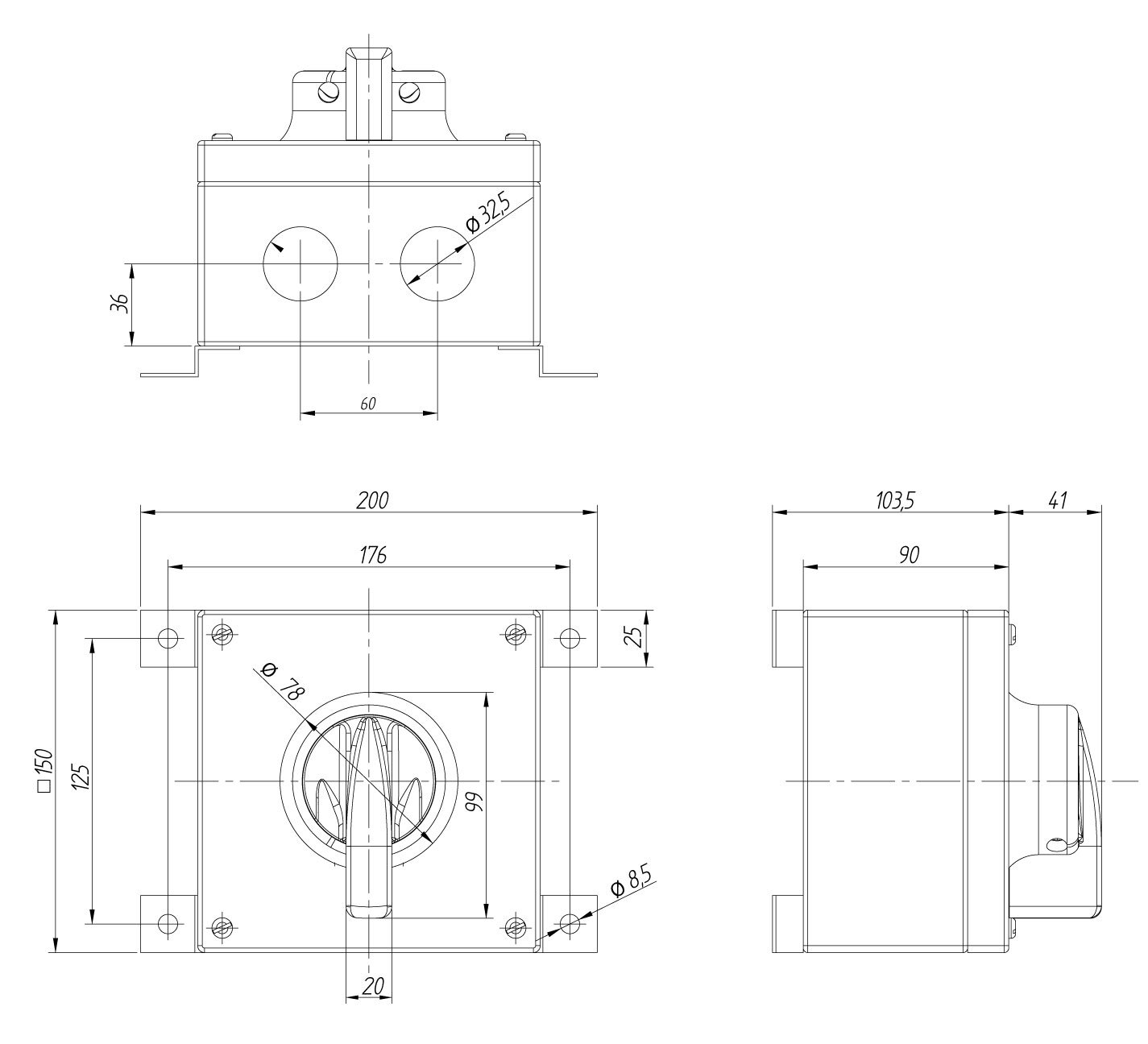

Dimensions
Logistic Data
Customs code 85365080
Technical data
Nr. Poles 3
Operational rating (Ie) 25 A
Air thermal rating (Ith) 25 A
Cable cross-section (AWG) 10
Wire section rigid

2,5 - 6 mm2
Wire section flexible

2,5 - 6 mm2
Tightening torque 1,6 Nm
Connection screws M4
Terminal Terminal
Max. fuse protection (gG/aM)

25/25 A (415 V)

25/25 A (500 V)


Conditional shortcircuit current (Icc)

6 kA (415 V)

6 kA (500 V)


Insulating voltage (V~) 690
Insulating voltage (V...) 400
Dummy AC-21A

7,5 kW (3x230 V)

15 kW (3x415 V)

18,5 kW (3x500 V)
Mixed load AC-22A

7,5 kW (3x230 V)

15 kW (3x415 V)

18,5 kW (3x500 V)
Motor load AC-23A

5,5 kW (3x230 V)

7,5 kW (3x415 V)

11 kW (3x500 V)
UL Electric characteristics

2 hp 1-fase (110-120 V)

3 hp 1-fase (220-240 V)

2 hp 3-fase (220-240 V)

3 hp 3-fase (380-415 V)

5 hp 3-fase (440-480 V)

7 hp 3-fase (550-600 V)
Standard IEC 60947-3 / UL 508
Enclosure type INOX
Impact protection IK IK10

Handles IP69K - A solution for heavy-duty cleansing environments
