AEV112000

TURN TO PUSH DISCREPANCY SWITCH 1M 1S 25A
Discrepancy switch, type turn to push. Fixing 4 points 36x36 with central hole 40mm diammeter. Light frontal handle with white leds, supply multivoltage 24-240vac / 24-110vdc. 1 contact signal and 1 contact control rated 25A. Connection with cage terminals for 1,5-6mm² cable

Print to PDF

Code 009AEV112000
EAN 8430892238427

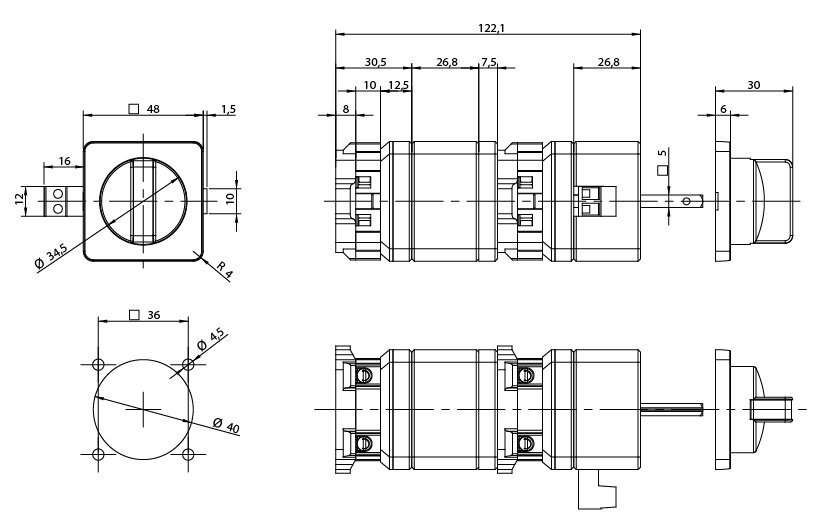

Dimensions
Product height 48
Product width 64
Product length 153.1
Logistic Data
Customs code 85365080
Etim Code EC002611
Packing units 1
Product gross weight (kg) 0.3
Package height (mm) 155
Package width (mm) 70
Package length (mm) 70
Technical data
Operational rating (Ie) 25 A
Air thermal rating (Ith) 25 A
Cable cross-section (AWG) 10
Wire section rigid 2,5 - 6 mm2
Wire section flexible 2,5 - 6 mm2
Tightening torque 1,6 Nm
Connection screws M4
Terminal Terminal
Max. fuse protection (gG/aM)

25/25 A (415 V)

25/25 A (500 V)
Conditional shortcircuit current (Icc)

6 kA (415 V)

6 kA (500 V)
Insulating voltage (V~) 690
Insulating voltage (V...) 400
Dummy AC-21A

7,5 kW (3x230 V)

15 kW (3x415 V)

18,5 kW (3x500 V)
Mixed load AC-22A

7,5 kW (3x230 V)

15 kW (3x415 V)

18,5 kW (3x500 V)
Motor load AC-23A

5,5 kW (3x230 V)

7,5 kW (3x415 V)

11 kW (3x500 V)
UL Electric characteristics

2 hp 1-fase (110-120 V)

3 hp 1-fase (220-240 V)

2 hp 3-fase (220-240 V)

3 hp 3-fase (380-415 V)

5 hp 3-fase (440-480 V)

7 hp 3-fase (550-600 V)
Standard

IEC 60947-3

UL 508
