SLP21025P15S/5

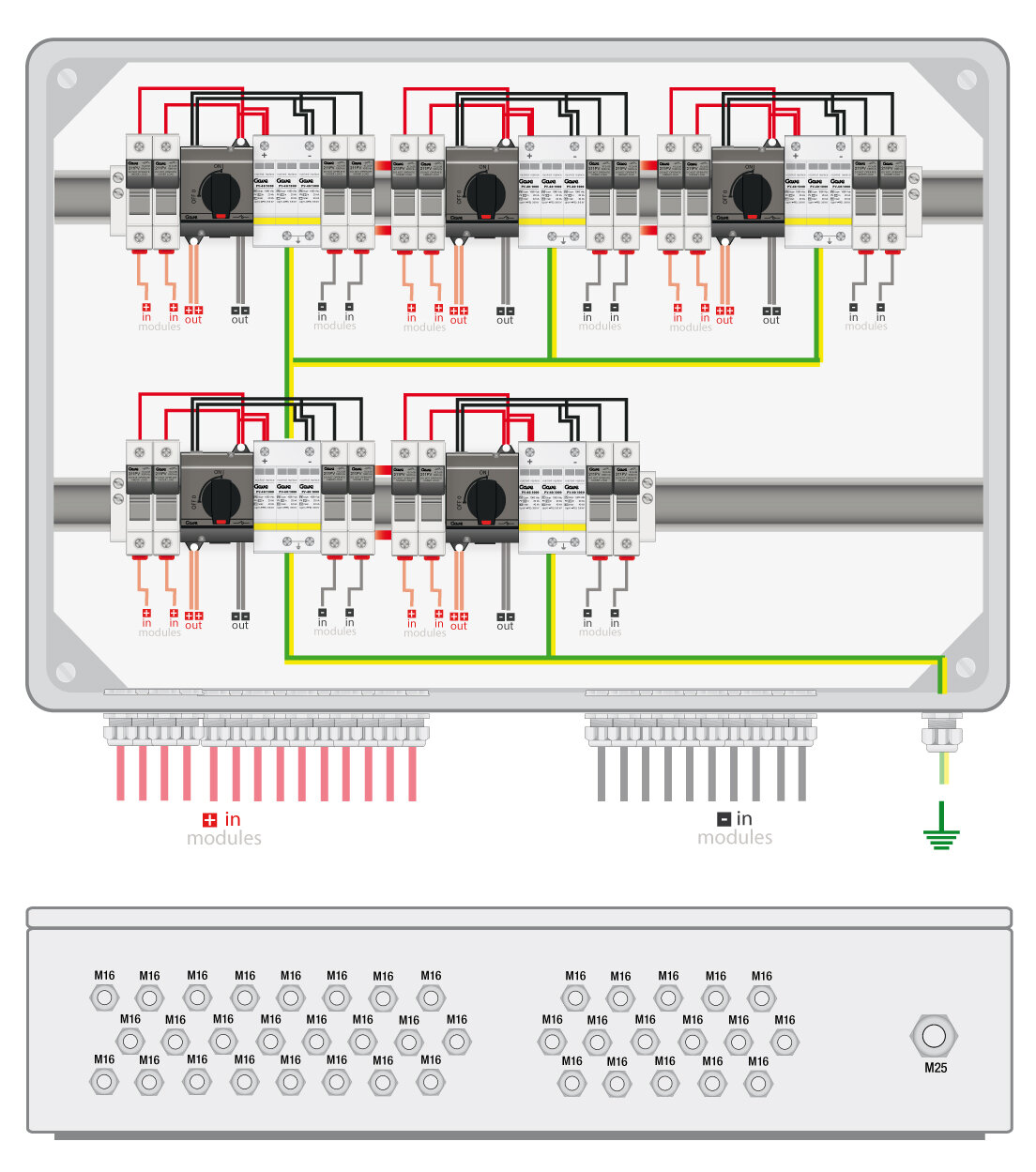

5 MPPT MODULAR COMBINER BOX 2 STRINGS IN/OUT TWO CIRCUITS 25A SWITCH 15A FUSE + SURGE PROTECTOR II
| Code | 029SLP21025P15S/5 |
| EAN | 8430892339551 |
Combiner box technical data
| Combiner box type | DC |
| Operating voltage (Ue) | 1000 V DC |
| Surge protector | Class II |
| No. of strings per tracker | 2 |
| Number of MPPT trackers | 5 |
| Surge protector code | 5 x PST31PV |
| Surge protector type | II |
| Max. continuous operating voltage (Ucpv) | 1060 VDC |
| Nominal discharge current (In) | 20 kA |
| Maximum discharge current (Imax) | 40 kA |
| Protection level at In (Up) | 3,6 kV |
| Standards | IEC EN 6143-1/2 |
