SLP11025P15/6

1000V PV COMBINER BOX - 6 MPPT 1 STRING 25A SWITCH FUSE 15A

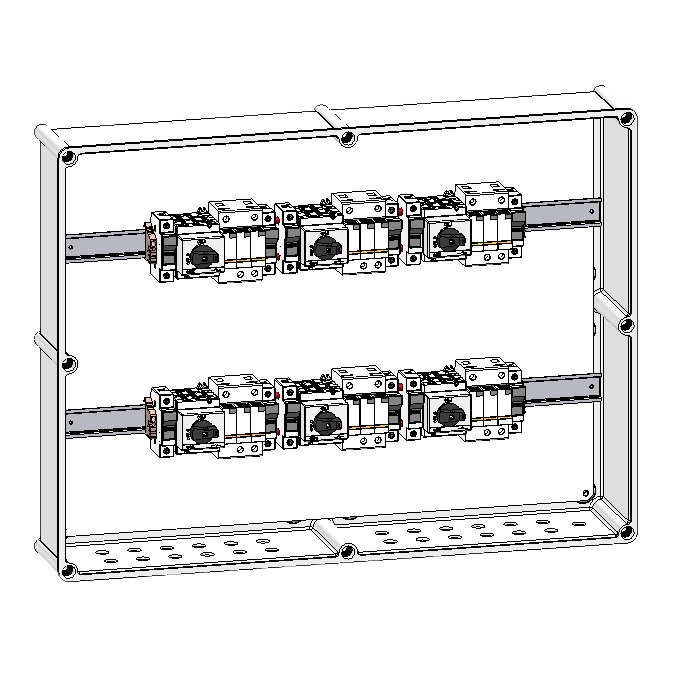

PV combiner box 6 MPPT, 1 string x MPPT (6 input, 6 output), switch-disconnectors 25A, fuse holders and fuse 15A gPV. Box in self extinguishing glass reinforced polyester with cover in transparent polycarbonate. Enclosure top part equipped with individual cable glands for input each string, bottom part equipped with individual cable glands for output each string. Safety signs according to standard requirements. Dimensions 540x201x720mm.

Print to PDF

Code 029SLP11025P15/6
Combiner box technical data
Combiner box type DC
Operating voltage (Ue) 1000 V DC
Surge protector Class II
No. of strings per tracker 1
Number of MPPT trackers 6
Fuse current 15
