SLA11025P20/9
1000V PV COMBINER BOX - 9 MPPT 1 STRING FUSE 20A - SWITCH 25A + SURGE PROTECTOR CLASS II

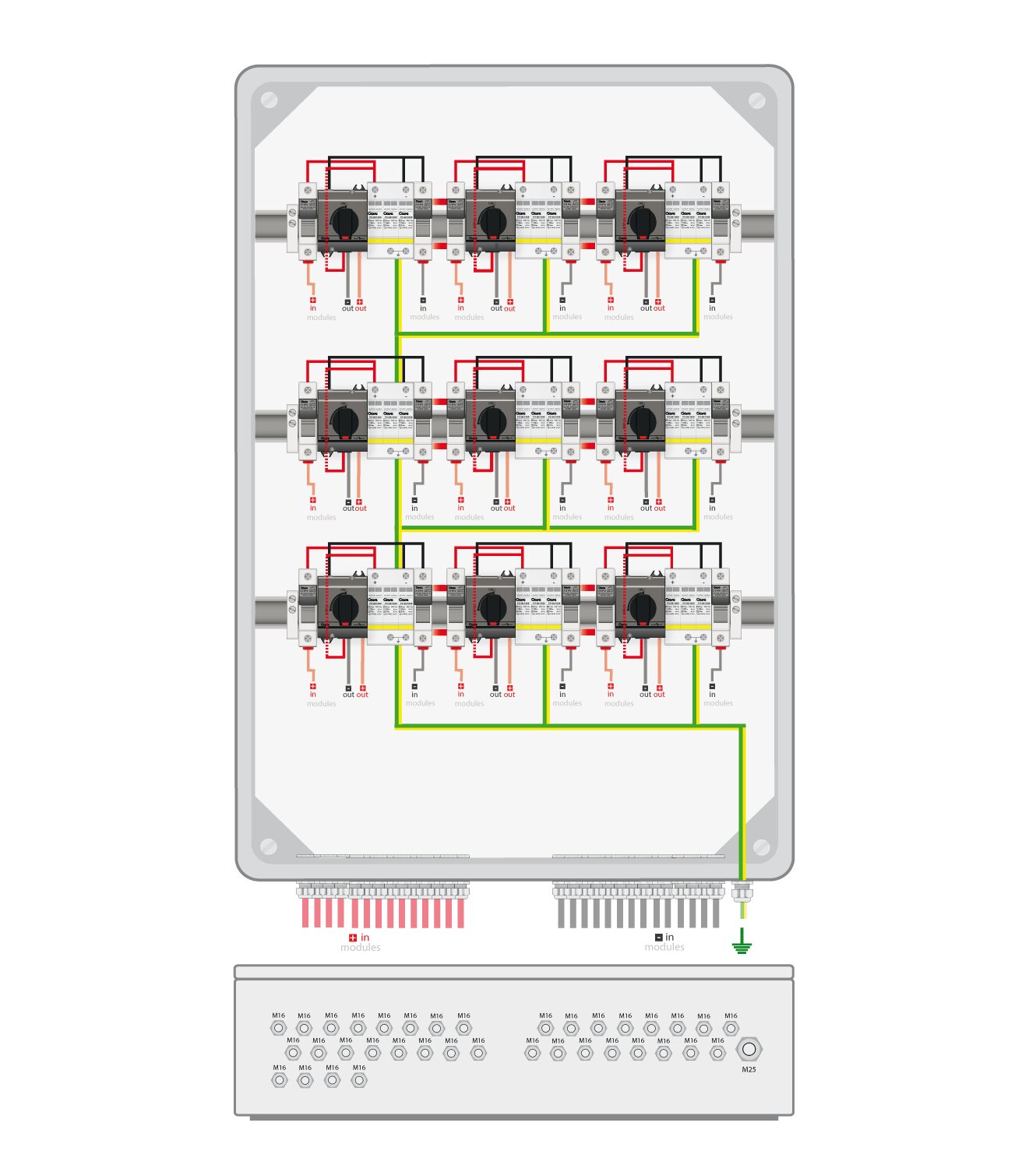

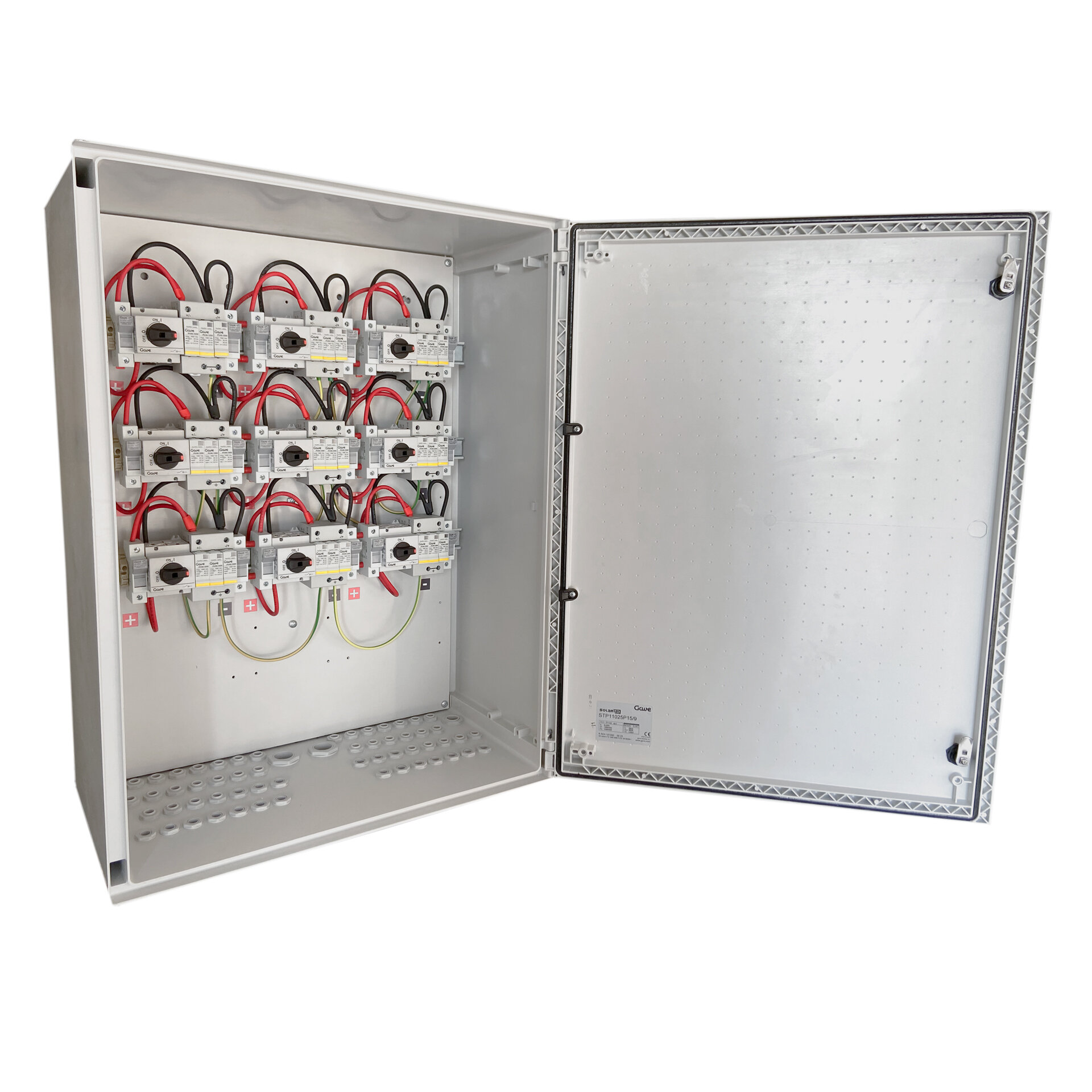

PV combiner box 9 MPPT, 1 string x mppt (9 input, 9 output) fuse holders and fuse 20A gPV + switch-disconnectors 25A + surge protectors class II maximum voltage 1000Vdc, for safe installations. Enclosure in self extinguishing glass reinforced polyester color RAL 7035 with 180º opening door and double bit lock. High protection against outdoor elements IP66 and against impacts IK10. Supplied with combiner box bottom mounted cable glands for each string and the earthing output. Dimensions 800x600x300mm.
