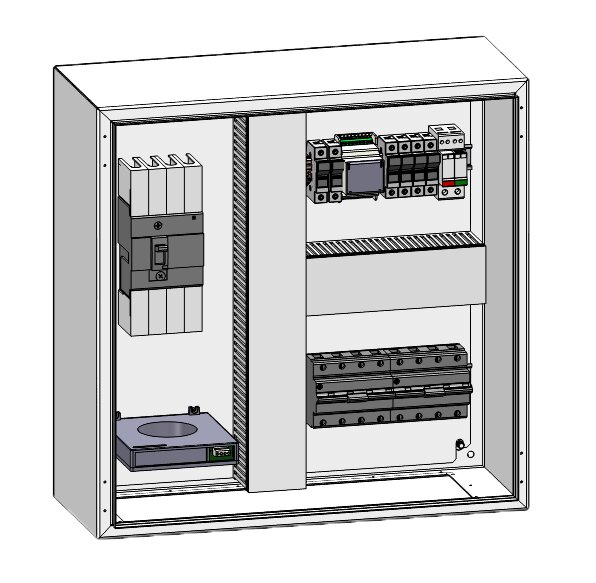

ACA-63/2-160DP
AC THREE PHASE COMBINER BOX 400V AC 3P+N, INPUT 2 INVERTERS 63A, OUTPUT 160A , WITH METAL ENCLOSURE
| Code | 029ACA-63/2-160DP |
Combiner box technical data
| Breaking capacity EN 60898-1 | 6kA / 40kA |
| Combiner box type | AC |
| Network type | 3P+N |
| Operating voltage (Ue) | 415 V AC |
| Surge protector | Class II |
| Diferential type | 30mA |
| Group | 2 |
| Inputs current rating | 63 A |
| Output current | 160 A |
| PdC Entradas | 6 kA |
| PdC Salida | 40 kA |
| Surge protector code | PSTC440 |
| Surge protector type | II |
| Nominal discharge current (In) | 20 kA |
| Maximum discharge current (Imax) | 40 kA |
| Protection level at In (Up) | 1.5 kV |
| IP | IP66 |
| IK | IK10 |
| Standards | IEC EN 61439-1/2 |
Dimensions
| Product height | 600 mm |
| Product width | 600 mm |
| Product length | 250 mm |
