ACA-250DP

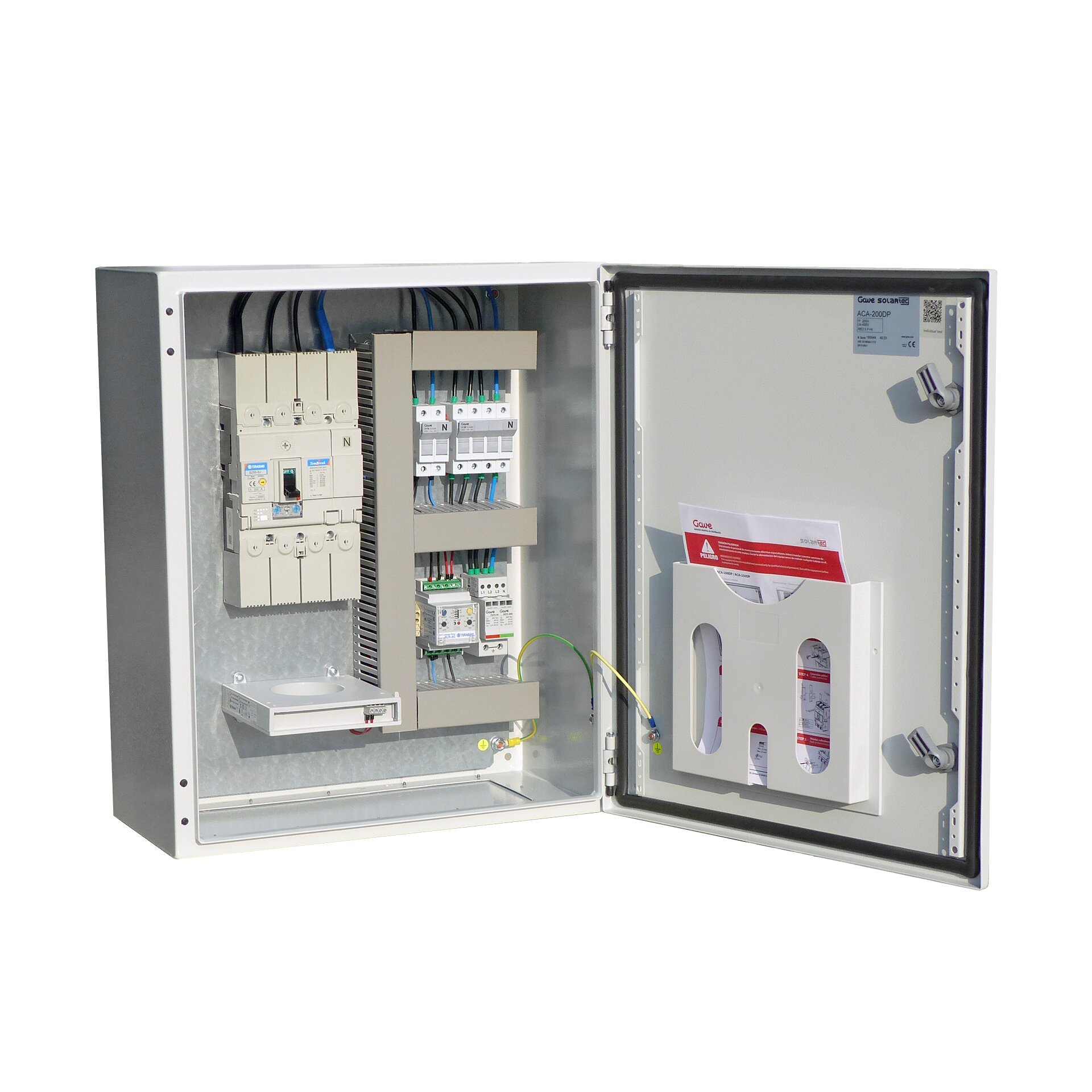

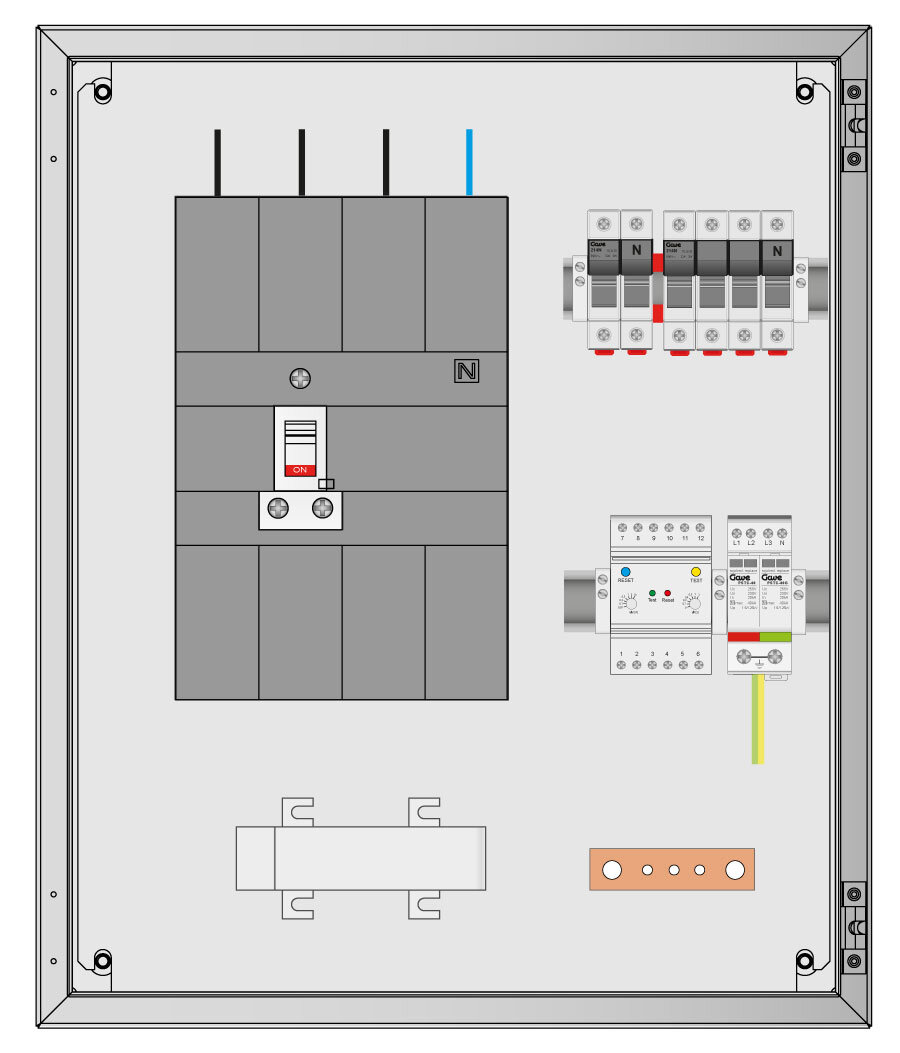

AC THREE PHASE COMBINER BOX 250A , WITH METAL ENCLOSURE
| Code | 029ACA-250DP |
| EAN | 8430892319546 |
Combiner box technical data
| Combiner box type | AC |
| Network type | 3P+N |
| Operating voltage (Ue) | 415 V AC |
| Surge protector | Class II |
| Diferential type | Regulable |
| Group | 1 |
| Inputs current rating | 250 A |
| Surge protector code | PSTC440 |
| Surge protector type | II |
| Nominal discharge current (In) | 20 kA |
| Maximum discharge current (Imax) | 40 kA |
| Protection level at In (Up) | 1.5 kV |
| IP | IP66 |
| IK | IK10 |
Logistic Data
| Customs code | 85371098 |
