ACT10SDA
AC MODULAR COMBINER BOX THREE PHASE MCB 10A RCCB TYPE A 30MA

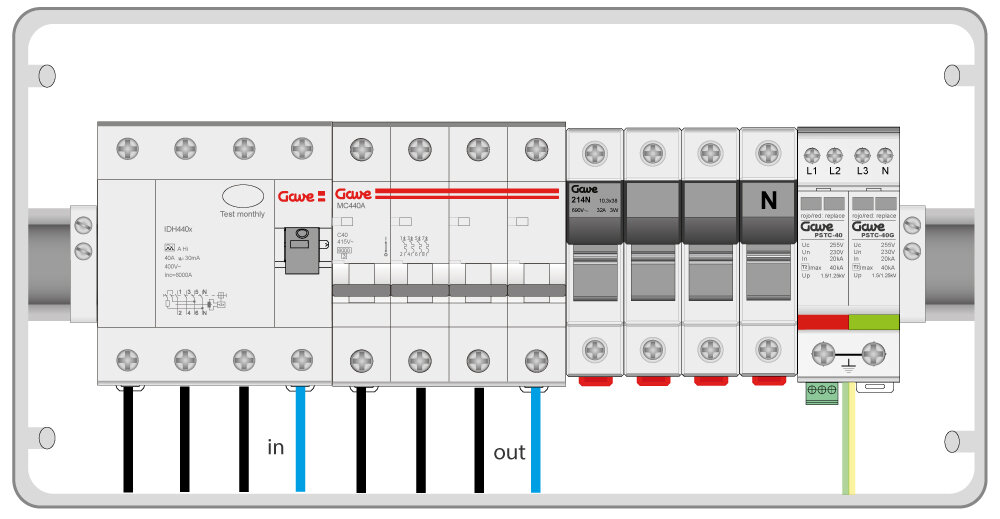

Modular combiner box with mcb, rccb and overvoltage protection . Modular circuit breaker 3 poles + neutral 10A C curve breaking capacity 6kA - EN 60898-1. Residual current circuit breaker four pole type A sensitivity 30mA for alternating current with pulsed direct current, protected against nuisance tripping 0,25kA, EN 61008-1. Overvoltage protection ClassII In 20kA Imax 40kA Up 1,5kV EN 61643-11 with associated fuse protection. Double insulation Class II box in polycarbonate material for indoor and outdoor use with high impact resistance (IK08). Dimensions de 286x418x148mm
