ACT100SDA/300
AC MODULAR COMBINER BOX THREE PHASE MCB 100A RCCB TYPE A HI 300MA

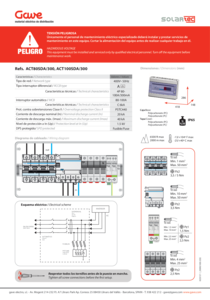

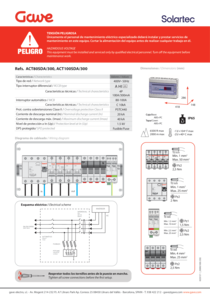

Modular combiner box with mcb, rccb and overvoltage protection and equipped with modular circuit breaker 4 poles 100A C curve breaking capacity 10kA - EN 60898-1. Residual current circuit breaker four pole type A HI sensitivity 300mA for alternating current with pulsed direct current, protected against nuisance tripping 5kA, EN 61008-1. Overvoltage protection ClassII In 20kA Imax 40kA Up 1,5kV EN 61643-11 with associated fuse protection. Double insulation Class II box in polycarbonate material for indoor and outdoor use with high impact resistance (IK08). Dimensions de 286x418x148mm
