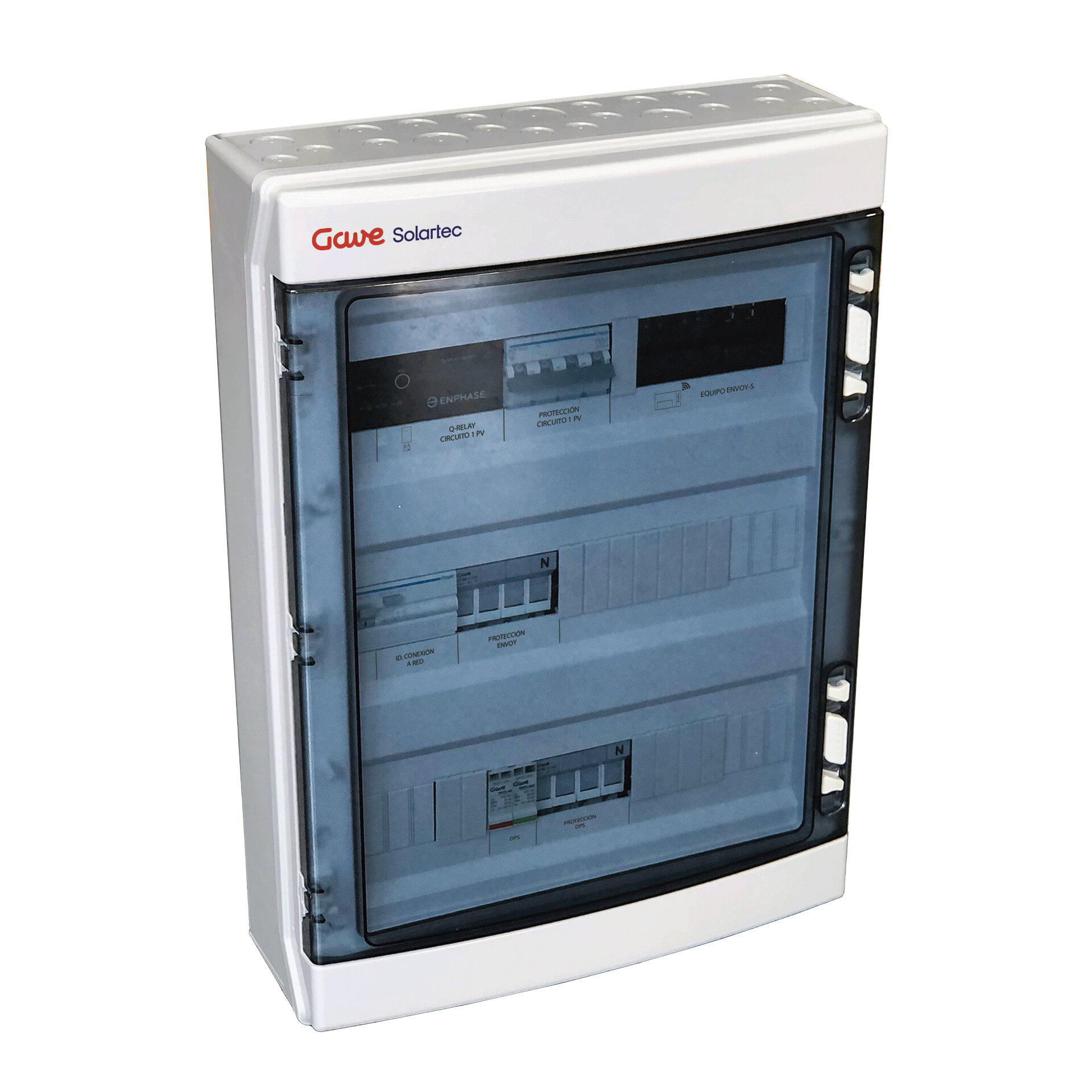

ACT-E1C
AC THREE-PHASE COMBINER BOX ENPHASE 1 CIRCUIT
| Code | 029ACT-E1C |
| EAN | 8430892317160 |
Combiner box technical data
| MCB - Circuit breaker | 20 A |
| Curve | C |
| Breaking capacity EN 60898-1 | 6 kA |
| RCCB type | A - 30mA (EN 61008-1) |
| Enphase devices | Q Relay + Envoy |
| Enphase current transformers | CT Production |
| Network type | 3P+N |
| Surge protector | Class II |
| Diferential type | 30mA |
| Surge protector code | PSTC440 |
| Surge protector type | II |
| Nominal discharge current (In) | 20 kA |
| Maximum discharge current (Imax) | 40 kA |
| Protection level at In (Up) | 1.5 kV |
| IP | IP65 - IEC 60529 |
| IK | IK08 - IEC 62262 |

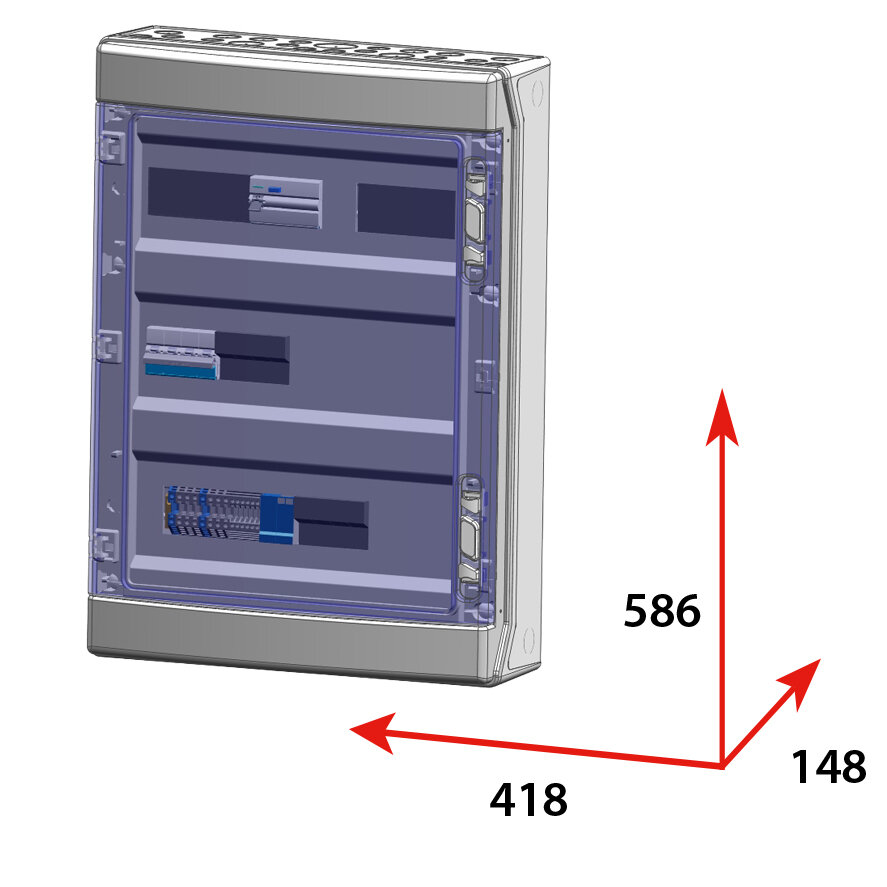

Dimensions
| Product height | 586 |
| Product width | 418 |
| Product length | 148 |
Logistic Data
| Customs code | 85371098 |
