ACM-E2C
AC SINGLE-PHASE COMBINER BOX ENPHASE 2 CIRCUITS
| Code | 029ACM-E2C |
| EAN | 8430892317153 |
Combiner box technical data
| MCB - Circuit breaker | 2 x 20A |
| Curve | C |
| Breaking capacity EN 60898-1 | 6 kA |
| RCCB type | A - 30mA (EN 61008-1) |
| Enphase devices | Q Relay + Envoy |
| Enphase current transformers | CT Production + CT Consumption |
| Network type | 1P+N |
| Diferential type | 30mA |
| Surge protector code | PSTC40 |
| Surge protector type | II |
| IP | IP65 - IEC 60529 |
| IK | IK08 - IEC 62262 |

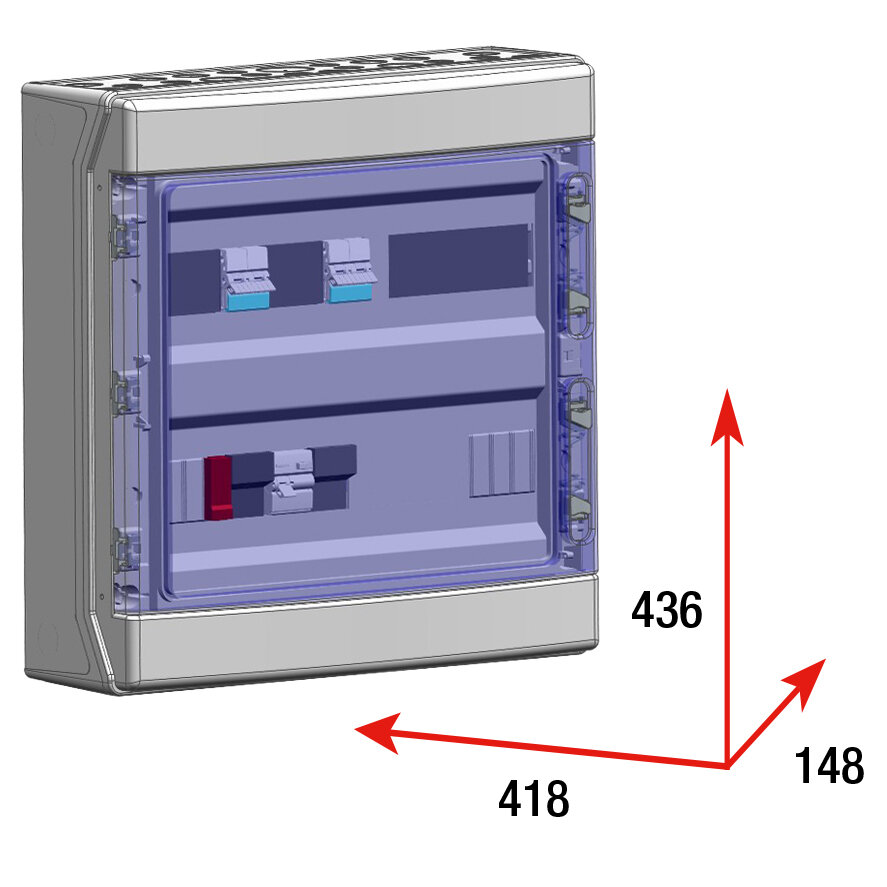

Dimensions
| Product height | 436 mm |
| Product width | 418 mm |
| Product length | 148 mm |
| Product weight (kg) | 6.38 |
Logistic Data
| Customs code | 85371098 |
