ACA-160DP

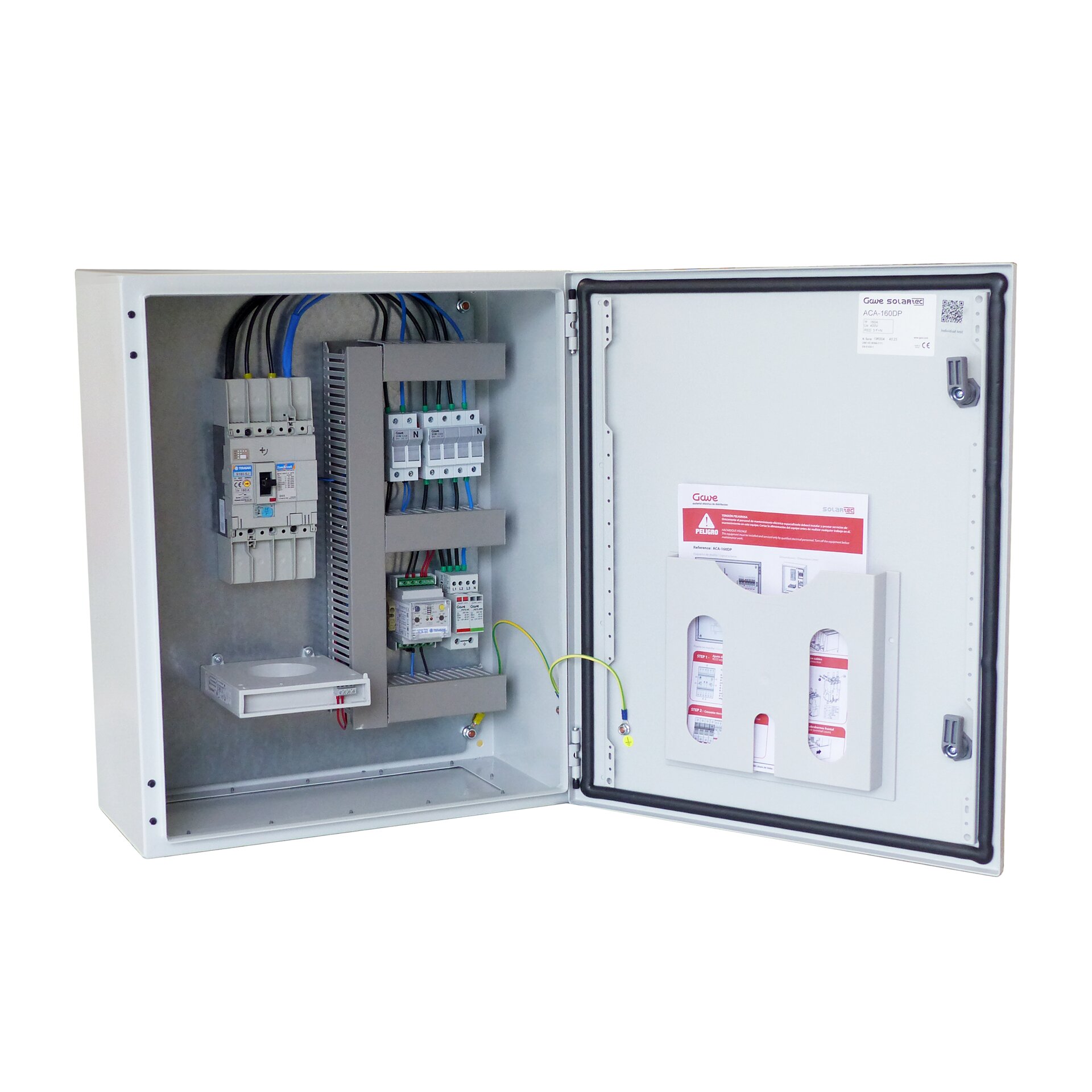

AC THREE PHASE 400V COMBINER BOX 160A , WITH METAL ENCLOSURE
Inicio ·
| Code | 029ACA-160DP |
| EAN | 8430892319508 |
Combiner box technical data
| Combiner box type | AC |
| Network type | 3P+N |
| Operating voltage (Ue) | 415 V AC |
| Surge protector | Class II |
| Diferential type | Regulable |
| Group | 1 |
| Inputs current rating | 160 A |
| Surge protector code | PSTC440 |
| Surge protector type | II |
| Nominal discharge current (In) | 20 kA |
| Maximum discharge current (Imax) | 40 kA |
| Protection level at In (Up) | 1.5 kV |
| IP | IP66 |
| IK | IK10 |

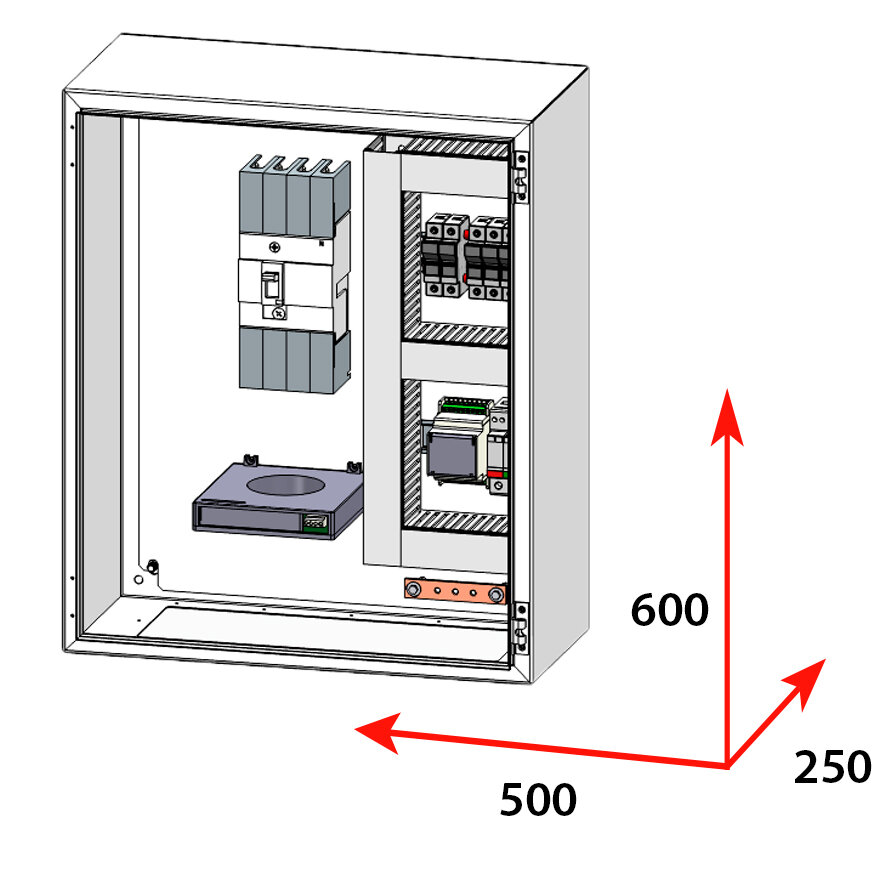

Dimensions
| Product height | 600 mm |
| Product width | 500 mm |
| Product length | 250 mm |
Logistic Data
| Customs code | 85371098 |
